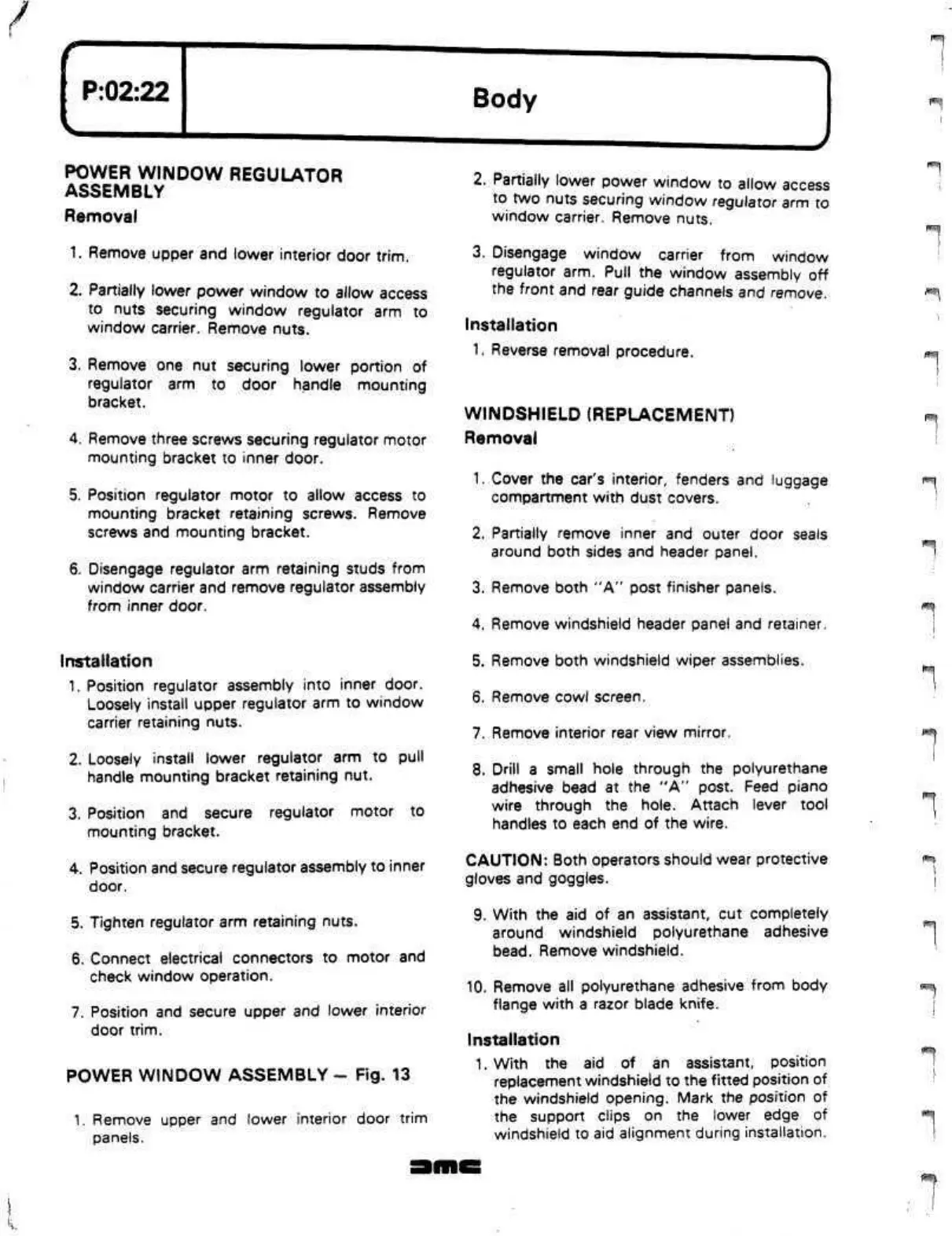

POWER WINDOW REGULATOR
ASSEMBLY
Removal
1.
Remove upper and lower interior door
trim.
2.
Partially lower power window to allow access
to nuts securing window regulator arm to
window carrier. Remove nuts.
3. Remove one nut securing lower portion of
regulator arm to door handle mounting
bracket.
4.
Remove three screws securing regulator motor
mounting bracket to inner door.
5. Position regulator motor to allow access to
mounting bracket retaining screws. Remove
screws and mounting bracket.
6. Disengage regulator arm retaining studs from
window carrier and remove regulator assembly
from inner door.
Installation
1.
Position regulator assembly into inner door.
Loosely install upper regulator arm to window
carrier retaining nuts.
2.
Loosely install lower regulator arm to pull
handle mounting bracket retaining nut.
3. Position and secure regulator motor to
mounting bracket.
4.
Position and secure regulator assembly to inner
door.
5. Tighten regulator arm retaining nuts.
6. Connect electrical connectors to motor and
check window operation.
7. Position and secure upper and lower interior
door
trim.
POWER WINDOW ASSEMBLY
-
Fig. 13
1.
Remove upper and lower interior door trim
panels.
2.
Partially lower power window to allow access
to two nuts securing window regulator arm to
window carrier. Remove nuts.
3. Disengage window carrier from window
regulator arm. Pull the window assembly off
the front and rear guide channels and remove.
Installation
1.
Reverse removal procedure.
WINDSHIELD (REPLACEMENT)
Removal
1.
Cover the car's interior, fenders and luggage
compartment with dust covers.
2.
Partially remove inner and outer door seals
around both sides and header panel.
3. Remove both "A" post finisher panels.
4.
Remove windshield header panel and retainer.
5. Remove both windshield wiper assemblies.
6. Remove cowl screen.
7. Remove interior rear view mirror.
8. Drill a small hole through the polyurethane
adhesive bead at the "A" post. Feed piano
wire through the hole. Attach lever tool
handles to each end of the wire.
CAUTION:
Both operators should wear protective
gloves and goggles.
9. With the aid of an assistant, cut completely
around windshield polyurethane adhesive
bead.
Remove windshield.
10.
Remove all polyurethane adhesive from body
flange with a razor blade knife.
Installation
1.
With the aid of an assistant, position
replacement windshield to the fitted position of
the windshield opening. Mark the position of
the support clips on the lower edge of
windshield to aid alignment during installation.
