Chassis
R:01:01
^

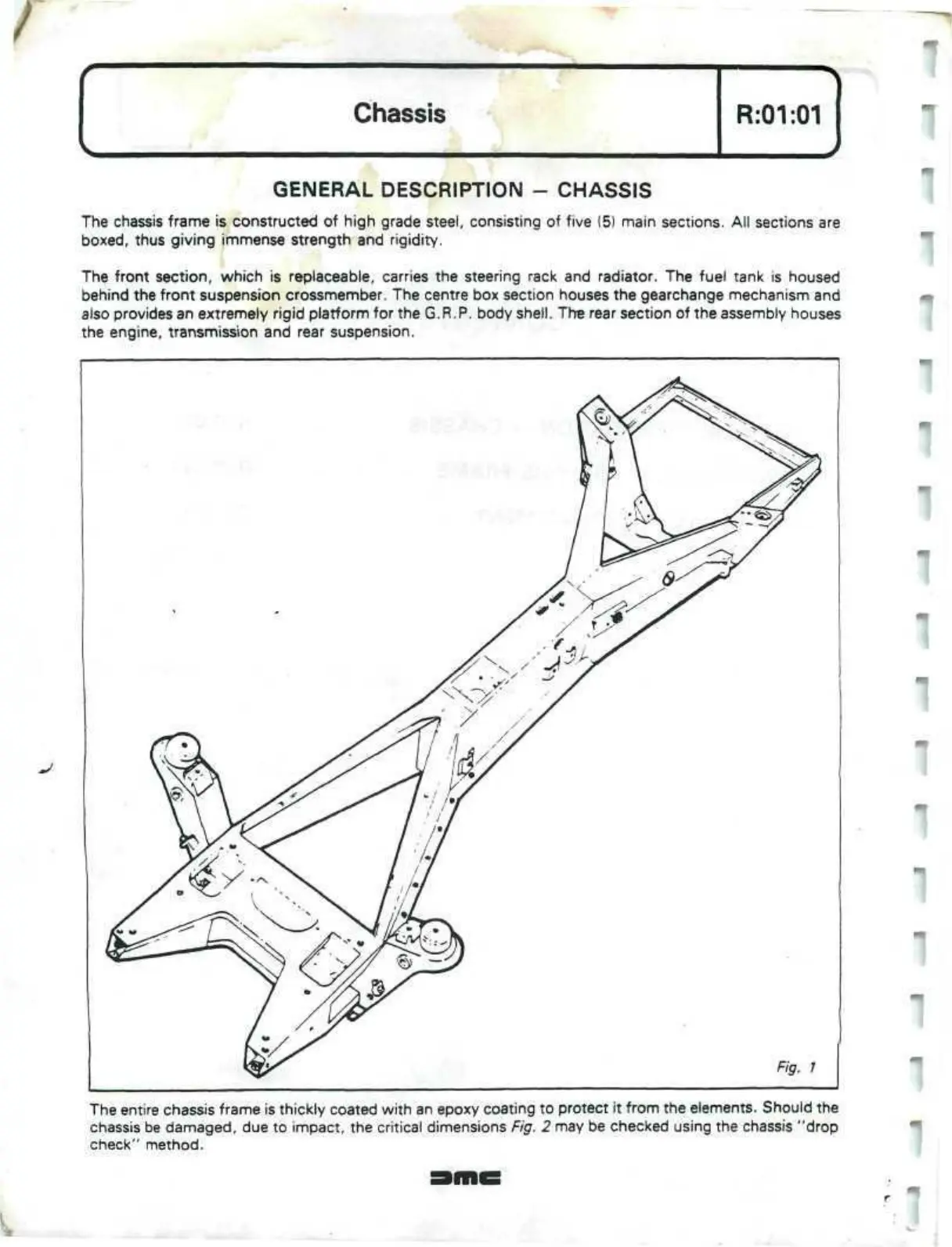

GENERAL DESCRIPTION - CHASSIS
The chassis frame is constructed of high grade steel, consisting of five (5) main sections. All sections are
boxed,
thus giving immense strength and rigidity.
The front section, which is replaceable, carries the steering rack and radiator. The fuel tank is housed
behind the front suspension crossmember. The centre box section houses the gearchange mechanism and
also provides an extremely rigid platform for the G.R.P. body shell.
Thre
rear section of the assembly houses
the engine, transmission and rear suspension.
The entire chassis frame is thickly coated with an epoxy coating to protect it from the elements. Should the
chassis be damaged, due to impact, the critical dimensions Fig. 2 may be checked using the chassis "drop
check" method.
