R:02:03
)

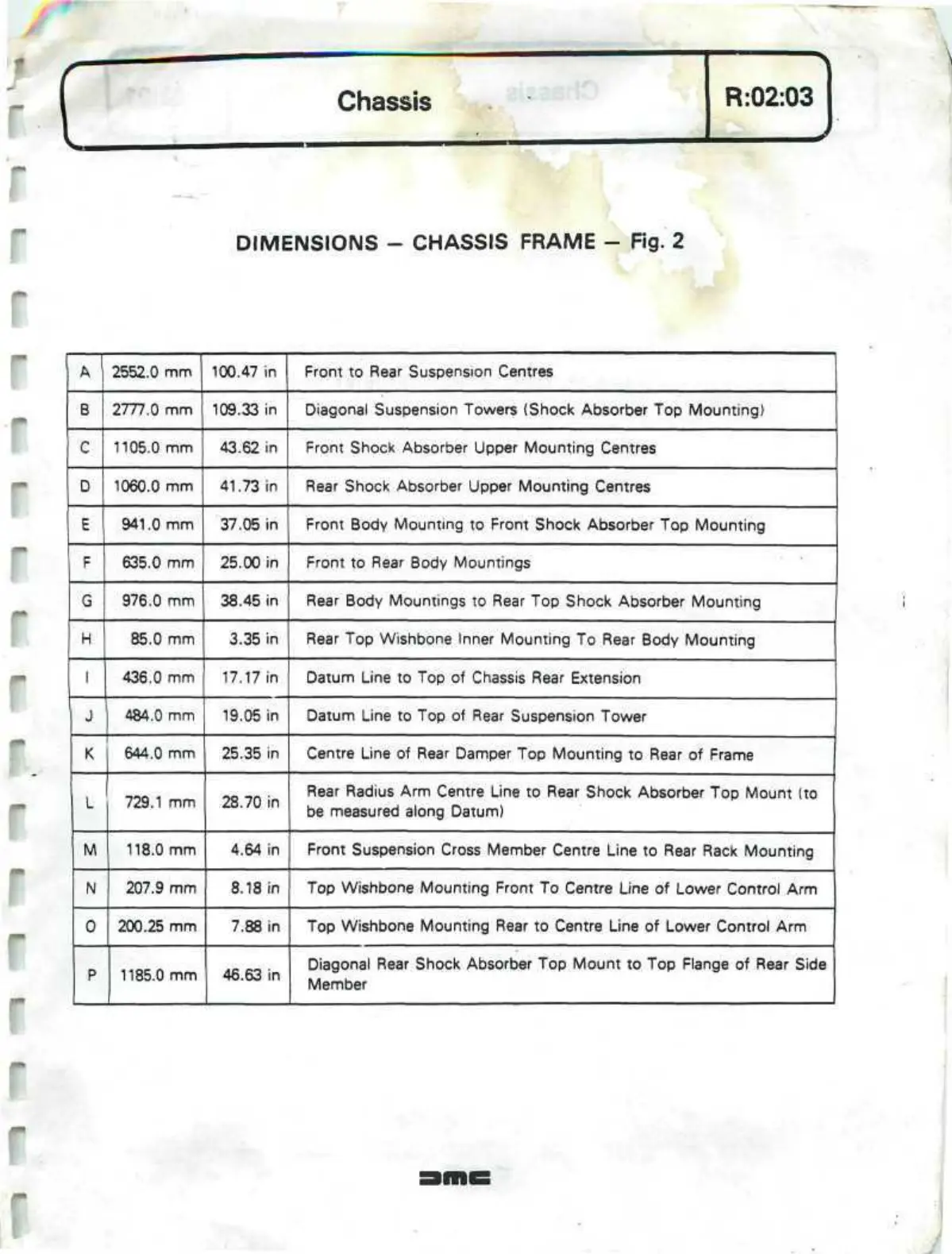

DIMENSIONS - CHASSIS FRAME - Fig. 2
A
B
C
D
E
F
G
H
1
J
K
L
M
N
0
P
2552.0 mm
2777.0 mm
1105.0 mm
1060.0 mm
941.0 mm
635.0 mm
976.0 mm
85.0 mm
436.0 mm
484.0 mm
644.0 mm
729.1 mm
118.0 mm
207.9 mm
200.25 mm
1185.0 mm
100.47 in
109.33 in
43.62 in
41.73 in
37.05 in
25.00 in
38.45 in
3.35 in
17.17 in
19.05 in
25.35 in
28.70 in
4.64 in
8.18 in
7.88
in
46.63 in
Front to Rear Suspension Centres
Diagonal Suspension Towers (Shock Absorber Top Mounting)
Front Shock Absorber Upper Mounting Centres
Rear Shock Absorber Upper Mounting Centres
Front Body Mounting to Front Shock Absorber Top Mounting
Front to Rear Body Mountings
Rear Body Mountings to Rear Top Shock Absorber Mounting
Rear Top Wishbone
Inner
Mounting To Rear Body Mounting
Datum Line to Top of Chassis Rear Extension
Datum Line to Top of Rear Suspension Tower
Centre Line of Rear Damper Top Mounting to Rear of Frame
Rear Radius Arm Centre Line to Rear Shock Absorber Top Mount (to
be measured along Datum)
Front Suspension Cross Member Centre Line to Rear Rack Mounting
Top Wishbone Mounting Front To Centre Line of Lower Control Arm
Top Wishbone Mounting Rear to Centre Line of Lower Control Arm
Diagonal Rear Shock Absorber Top Mount to Top Flange of Rear Side
Member
