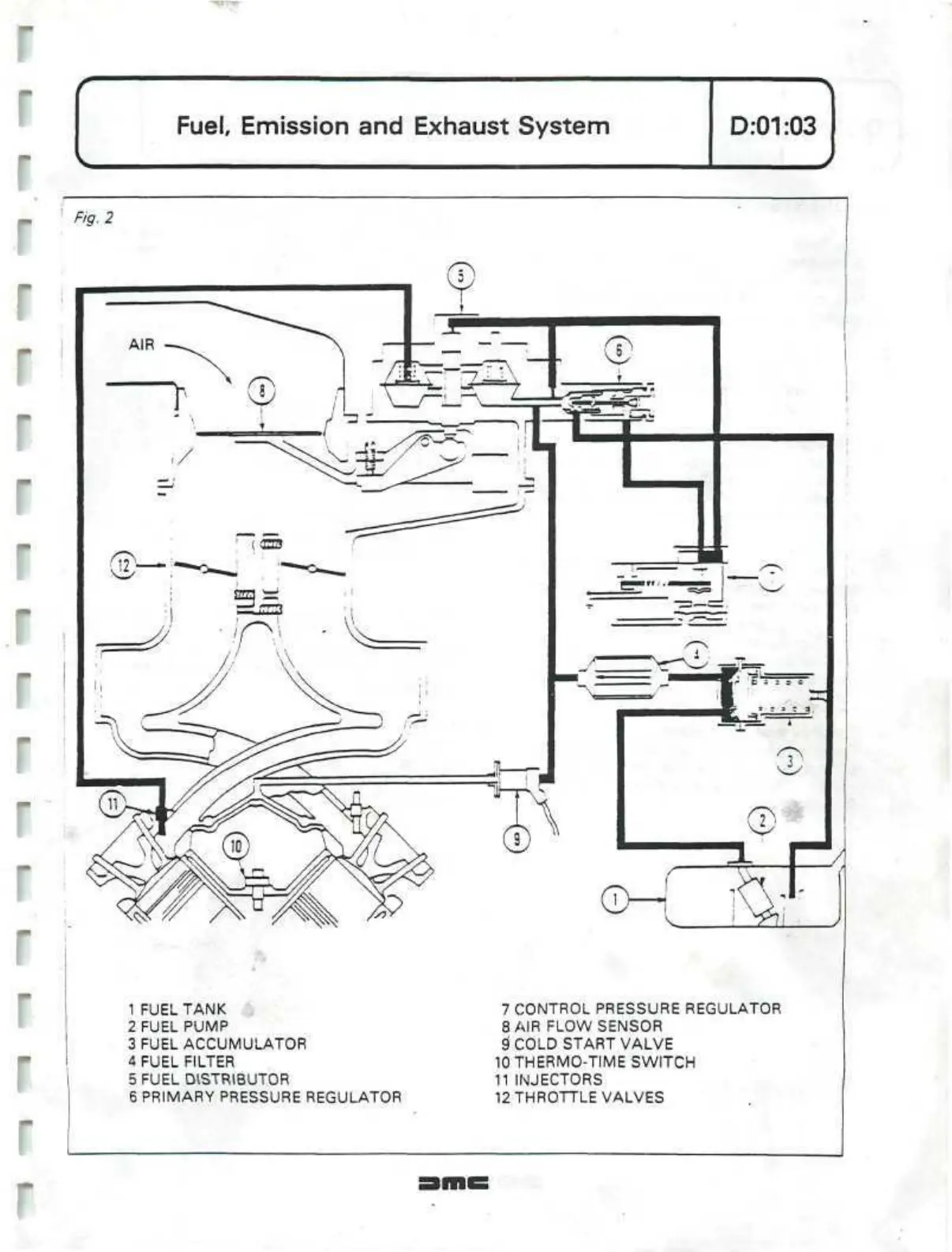

Fuel, Emission and Exhaust System
—\
D.01:03
J
1 FUEL TANK
2 FUEL PUMP
3 FUEL ACCUMULATOR
4 FUEL FILTER
5 FUEL DISTRIBUTOR
6 PRIMARY PRESSURE REGULATOR
7 CONTROL PRESSURE REGULATOR
8 AIR FLOW SENSOR
3 COLD START VALVE
10 THERMO-TIME SWITCH
11 INJECTORS
12 THROTTLE VALVES
