Connection Systems
Delphi Connections Systems Page 2 of 11 01/02/2001
Note: Assembly Instructions are provided for reference only, and are intended for use by skilled assembly technicians.
Personal injury, failure of the system to work as intended, and damage to the product may result from failure to follow the
assembly and disassembly techniques and/or use of tools other than those described. Always follow Assembly
Instructions thoroughly, and please contact Delphi Connection Systems for further assistance.
ASSEMBLY INSTRUCTIONS

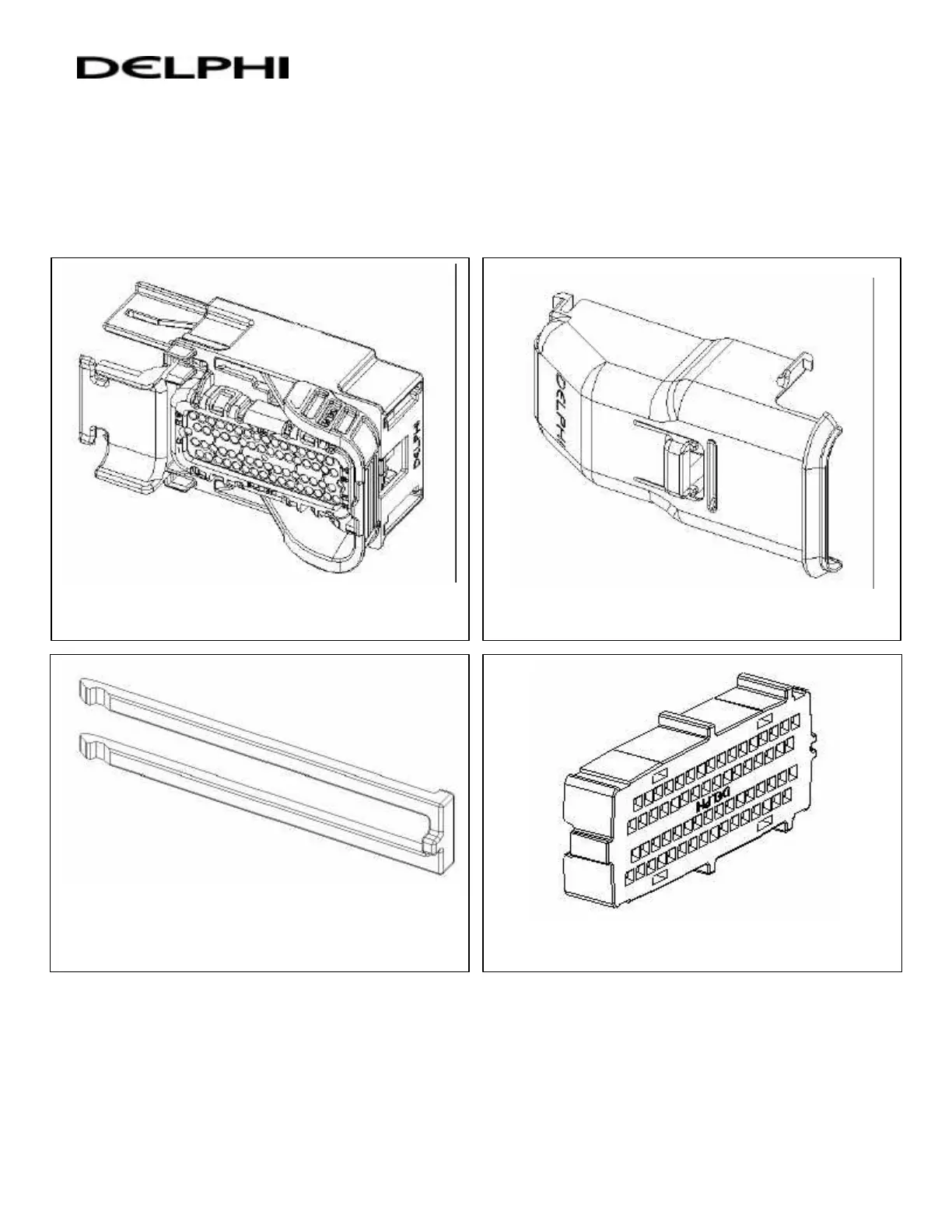

MICRO 64 CONNECTOR ASSEMBLY
COVER
CONNECTOR ASSEMBLY
SECONDARY LOCK
NOSE-PIECE
