- 1 -
ΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞ ENGLISH ΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞΞ
Thank you for choosing Delta’s DVP series PLC. DVP02DA-E2 (DVP04DA-E2) analog
output module receives 2 (4) groups of 16-bit digital data from the PLC MPU and
converts the digital data into 2 (4) points analog output signals (voltage or current). In
addition, you can access the data in the module by applying FROM/TO instructions or
write the output value of channels directly by using MOV instruction (Please refer to
allocation of special registers D9900 ~ D9999).
a This instruction sheet provides only information on the electrical specification,
general functions, installation and wiring. For detailed program design and applicable
instructions, please refer to “DVP-ES2 Operation Manual: Modules”. For details of
the optional peripheral, please refer to the instruction sheet enclosed in it.
a This is an OPEN TYPE I/O module and therefore should be installed in an enclosure
free of airborne dust, humidity, electric shock and vibration. The enclosure should
prevent non-maintenance staff from operating the device (e.g. key or specific tools
are required for operating the enclosure) in case danger and damage on the device
may occur.
a DO NOT connect the input AC power supply to any of the I/O terminals; otherwise
serious damage may occur. Check all the wiring again before switching on the power.
Make sure the ground terminal
is correctly grounded in order to prevent
electromagnetic interference.

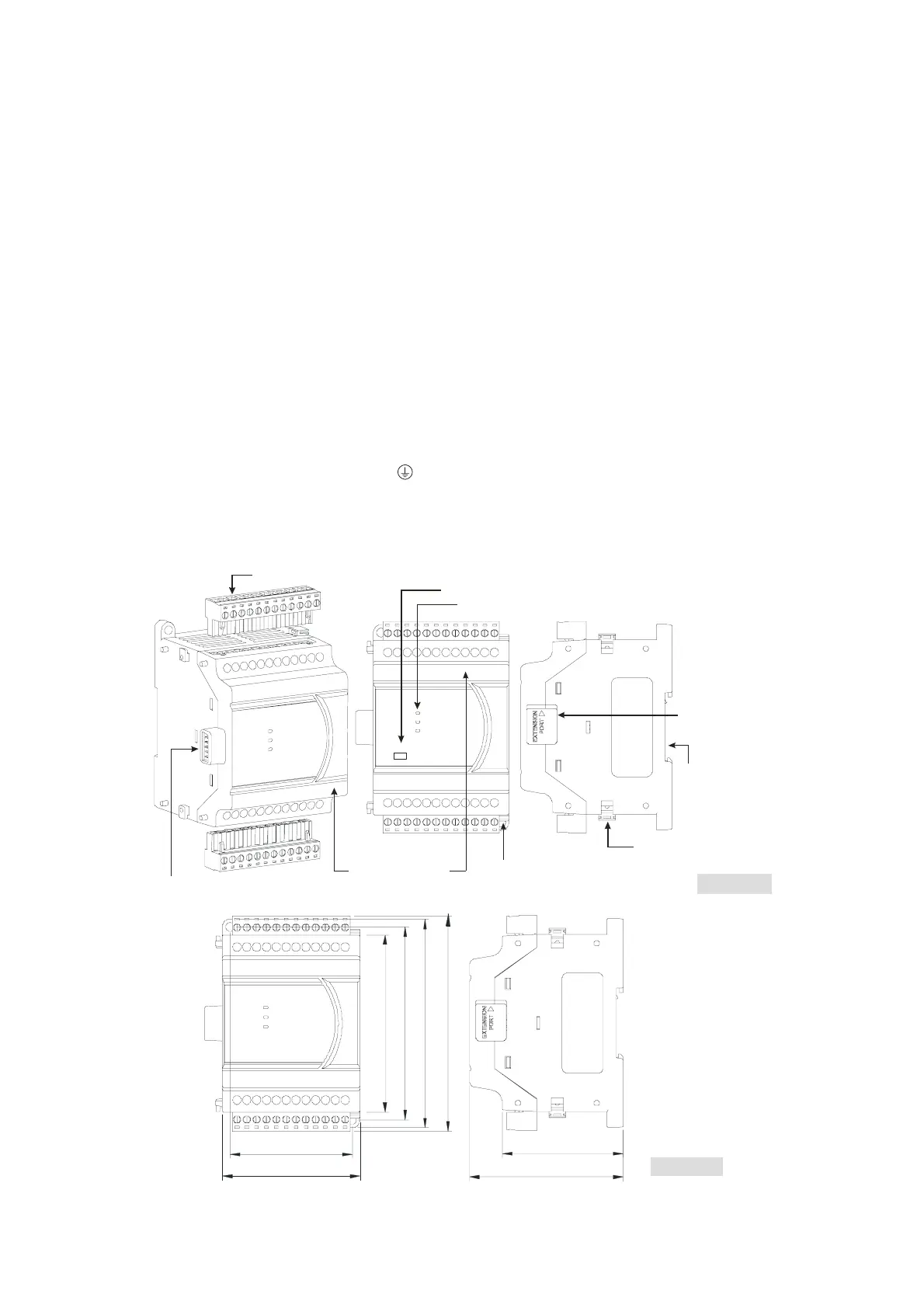

Product Profile & Dimension
Removable I/O terminal
Direct mounting hole
Mounting slot
(35mm)
Power / D->A / Error indicators
I/O module
connection port
I/O terminal No.
Model Name
I/O module clip
[ Figure 1 ]
I/O module connection port
02DA-E2
2AO
[ Figure 2 ]
70
62
106
98
78
90
61.5
110
Unit: mm
