Delta Electronics DVP02DA-E2 User Manual

- 6 -

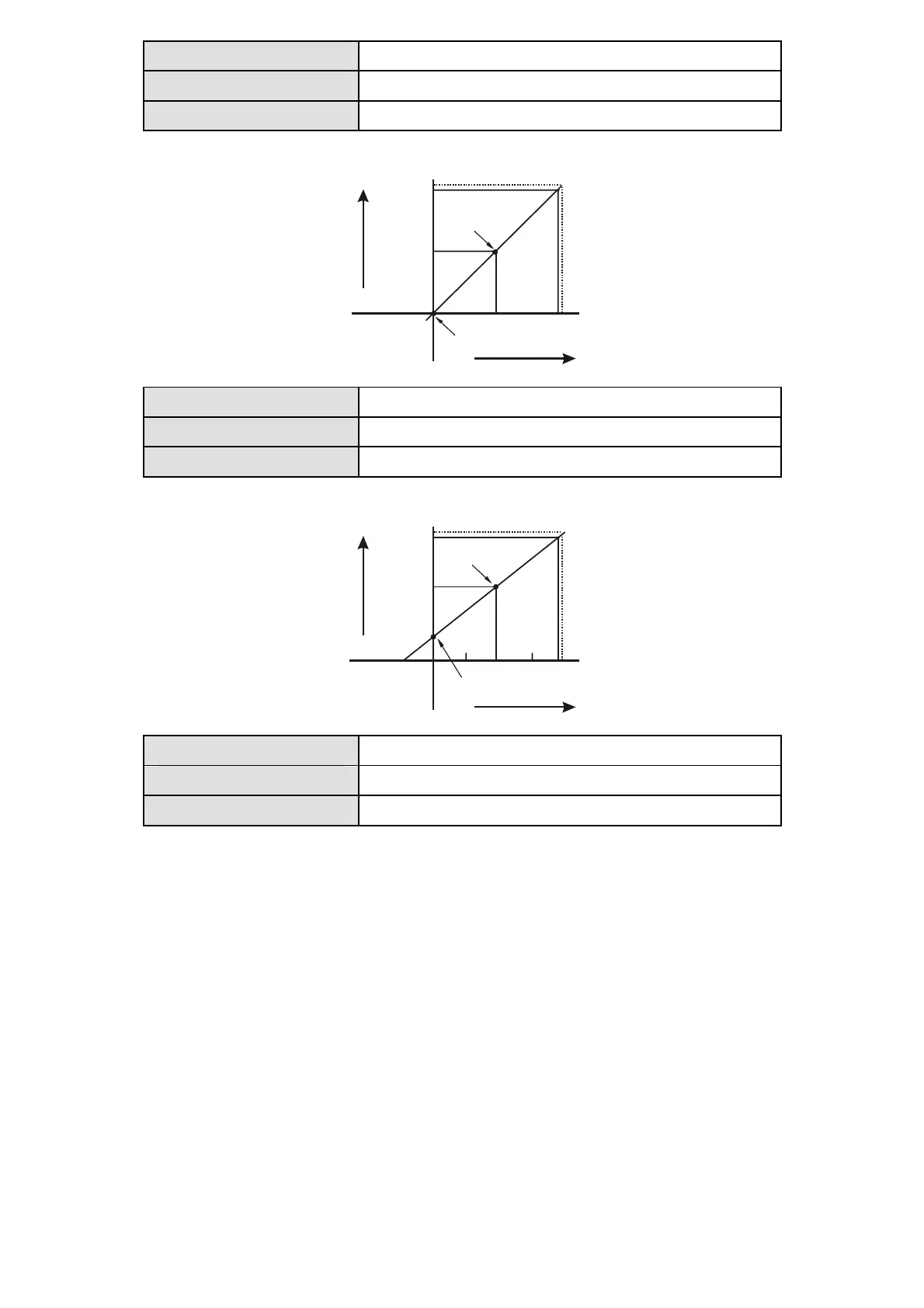

Mode 0 (CR#2 ~ CR#5) -10V ~ +10VΔGain = 5V (16,000)ΔOffset = 0V (0)
Range of digital data -32,000 ~ +32,000
Max./Min. range of digital data -32,768 ~ +32,767
y Current output – mode 1:
Digital input
+32000+16000
20mA
10mA
0
Offset
Current
output
+32767
Gain
Mode 1 (CR#2 ~ CR#5) 0mA ~ +20mAΔGain = 10mA (16,000)ΔOffset = 0mA (0)
Range of digital data 0 ~ +32,000
Max./Min. range of digital data 0 ~ +32,767
y Current output – mode 2:
Digital input
+32000+16000
20mA
12mA
0
Offset
Current
output
+32767
Gain
4mA
-6400
Mode 2 (CR#2 ~ CR#5) 4mA ~ +20mAΔGain = 12mA (19,200)ΔOffset = 4mA (6,400)
Range of digital data 0 ~ +32,000
Max./Min. range of digital data -6400 ~ +32,767
