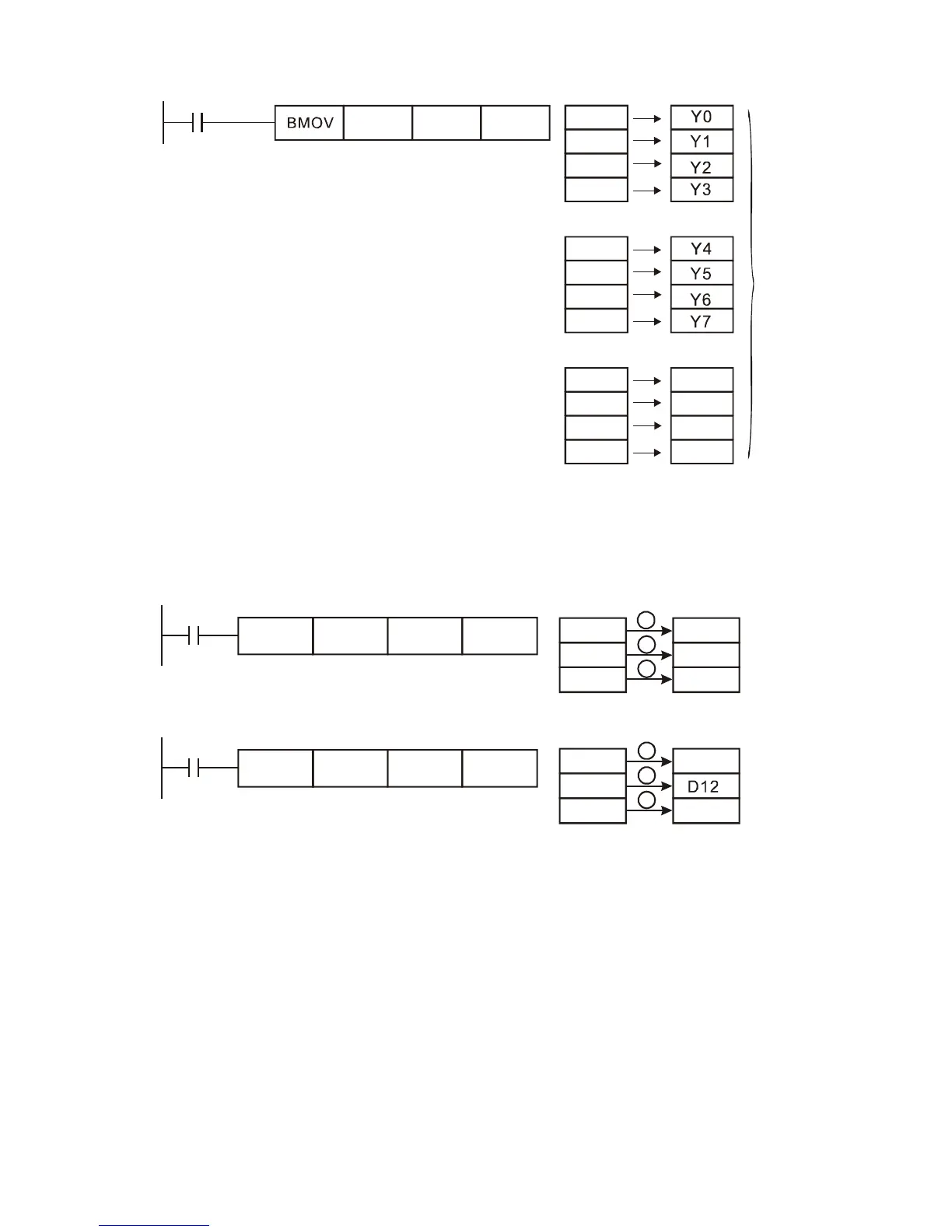

Program Example 3:
To avoid coincidence of the device numbers to be moved designated by the two operands and cause
confusion, please be aware of the arrangement on the designated device numbers.
1. When
S > D, the instruction is processed following the order 1→2→3
X10
BMOV D20 D19 K3
D19
D20
D21
D20
D21
D22
2
1
3
2. When
S < D, the instruction is processed following the order 3→2→1
D11
D13
X11
BMOV D10 D11 K3
D10
D11
D12
1
3
2
To Next Page
