Appendix D Use of Application Instructions|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 D-47
Mnemonic Operands Function
ROR D
D
n
Rotation Right
Bit Devices Word Devices
X Y M S K H KnX KnY KnM KnS T C D E F
D
n
y Note:
1. If D is used in device F, only 16-bit instruction is applicable.
2. If D is designated as KnY, KnM, and KnS, only K4 (16-bit) and K8
(32-bit) are valid.
3. Range of n: 1 ~ 16 (16-bit); 1 ~ 32 (32-bit)
16-bit instruction (5 Steps)
ROR
Continuous
execution
32-bit instruction (9 Steps)
DROR
Continuous
execution
y Flags: M1022 (Carry flag)
Operands:
D
: Device to be rotated
n
: Number of bits to be rotated in 1 rotation
Explanations:

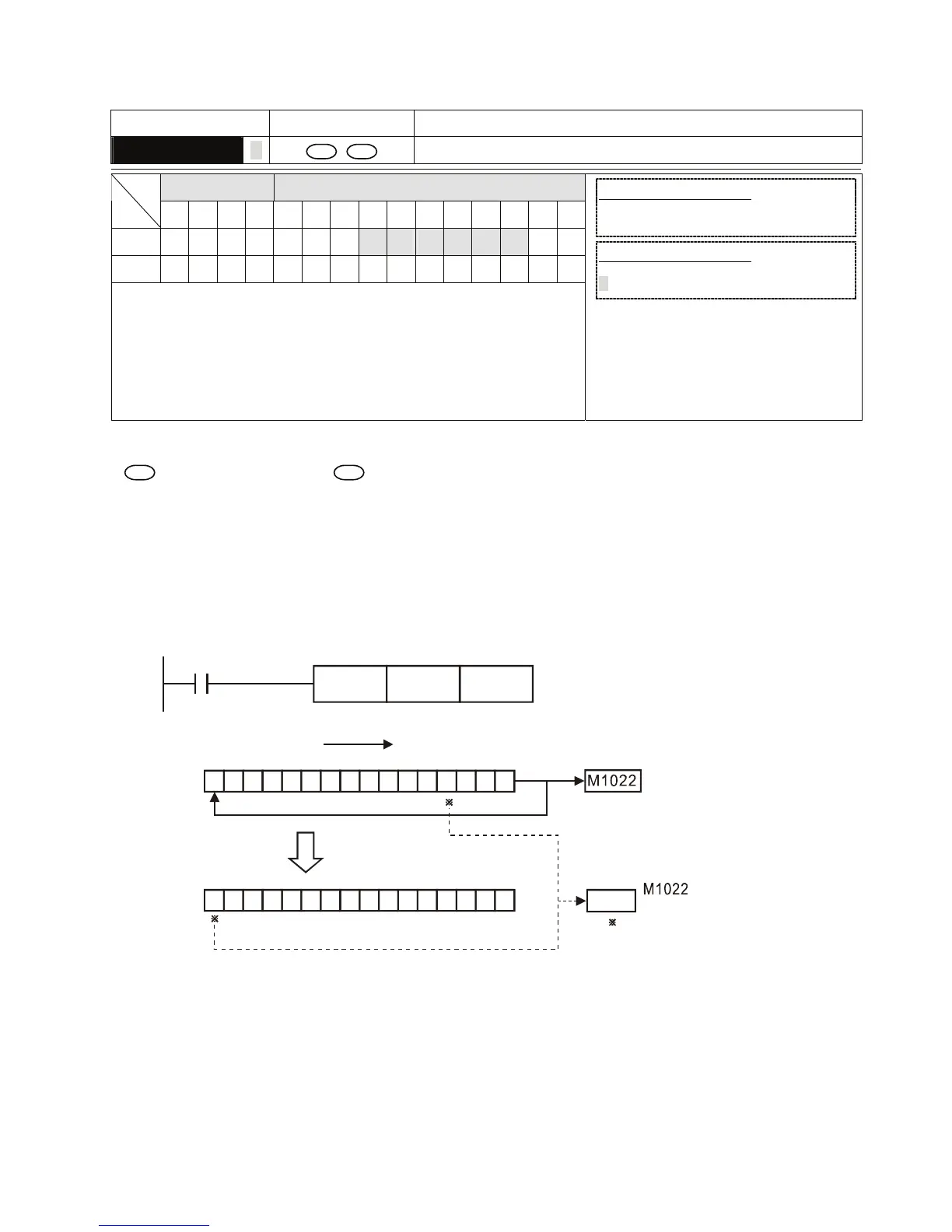

This instruction rotates the device content designated by D to the right for n bits.
Program Example:
When X0 = Off→On, the 16 bits (4 bits as a group) in D10 will rotate to the right, as shown in the figure
below. The bit marked with
※ will be sent to carry flag M1022.
011 10 101 0 0111 001
010111001111001 0
0
higher bit lower bit
higher bit lower bit
X0
RORP
D10
K4
Rotate to the right
16 bits
Carry
flag
Carry
flag
After one rotation
to the right
D10
D10
