Chapter 1 Getting Started|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 1-3

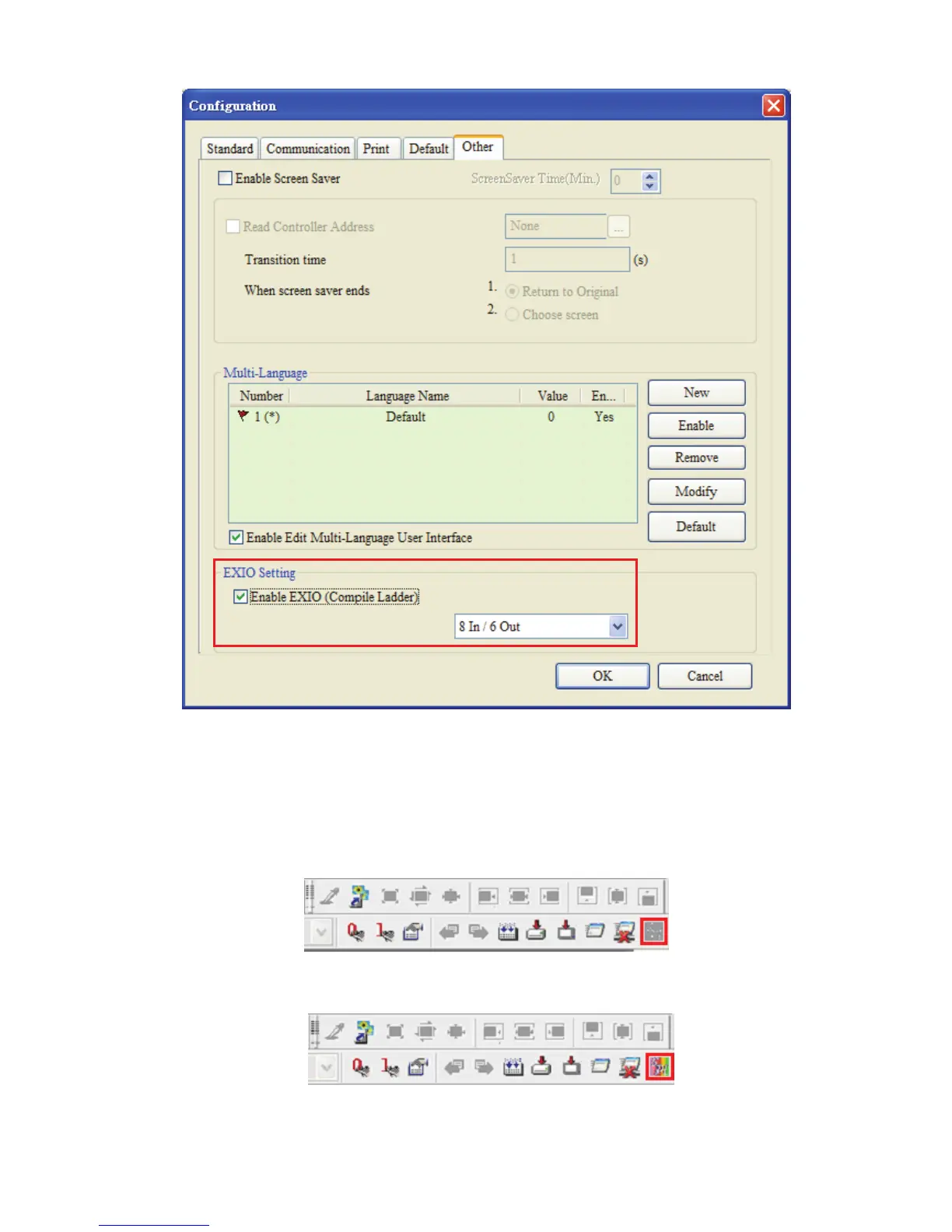

Fig. 1.3 Other tab
When “Enable EXIO (Compile Ladder)” option is selected, the “Ladder Editor” icon will appear
and be available for use on the toolbar (See Fig. 1.4 and 1.5). The user can click this icon and
start ladder diagram editing directly or click “Tool” > “Ladder Editor” command from the menu
(See Fig. 1.6).
Fig. 1.4 Toolbar before “Enable EXIO (Compile Ladder)” option is selected
Fig. 1.5 Toolbar after “Enable EXIO (Compile Ladder)” option is selected
