Appendix C Use of Basic Instructions|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 C-3

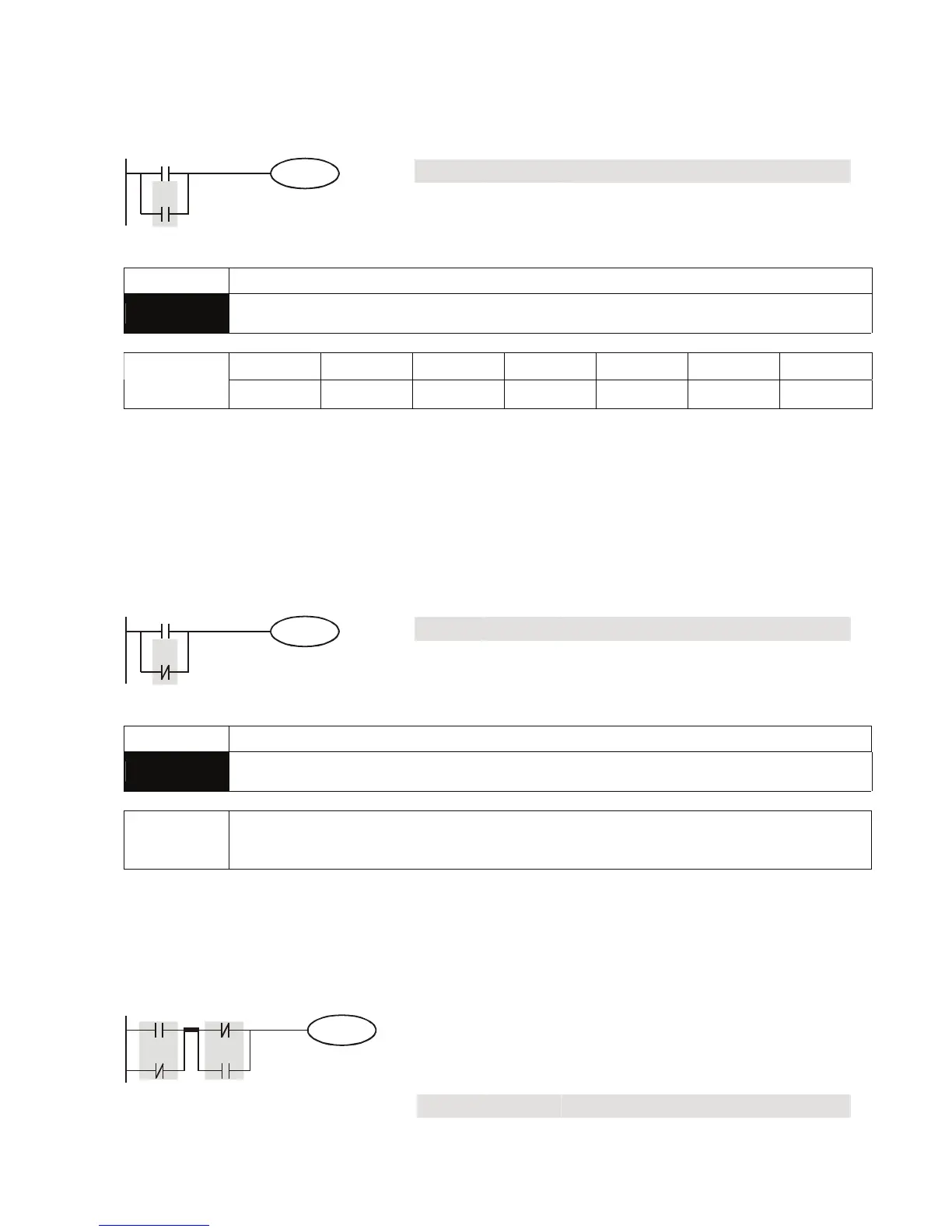

Program Example:
Ladder diagram: Instruction code: Operation:
LD X0 Loading in contact A of X0
OR X1 Connecting to contact A of X1 in parallel
X0
X1
Y1
OUT Y1 Driving Y1 coil
Mnemonic Functions
ORI
Parallel Connection- B Contact
X0~X17 Y0~Y17 M0~M1279 S0~S127 T0~T127 C0~C254 D0~D599
Operand
9 9 9 9 9 9
-
Explanation:
The ORI instruction is used in the parallel connection of B contact. The functions are to read out the
status of present designated parallel connection contacts and perform the “ORI” operation with the
logical operation result obtained. The final result will be store in the accumulative register.
Program Example:
Ladder diagram: Instruction code: Operation:
LD X0 Loading in contact A of X0
ORI X1 Connecting to contact B of X1 in parallel
X0
X1
Y1
OUT Y1 Driving Y1 coil
Mnemonic Functions
ANB
Series connection- loop blocks
Operand none
Explanation:
To perform the “AND” operation of the preserved logic results and content in the accumulative register.
Program Example:
Ladder diagram: Instruction code: Operation:
LD X0 Loading in contact A of X0
ORI X2 Connecting to contact B of X2 in parallel
LDI X1 Loading in contact B of X1
OR X3 Connecting to contact A of X3 in parallel
ANB Connecting circuit block in series
X0
X2
Y1
X1
X3
ANB
Block A Block B
OUT Y1 Driving Y1 coil
