Appendix D Use of Application Instructions|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 D-9

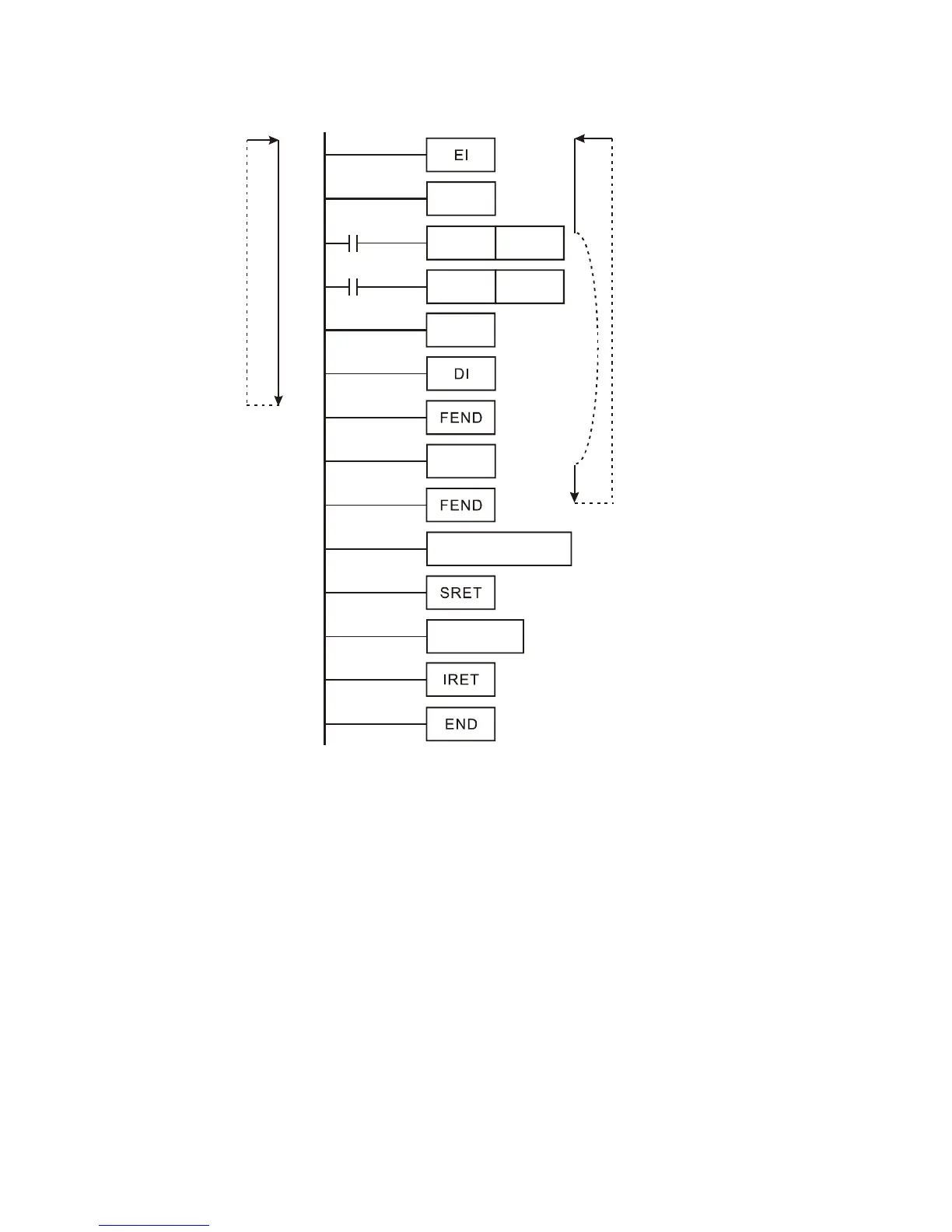

CJ Instruction Program Flow:
X1
CALL P63
P0
P63
CJ P0
I301
X0
0
The program flow
when X0=off,
X1=off
main
program
main
program
main
program
The program flow when X=On
and the program jumps to P0.
Interruption
subroutine
CALL instruction
subroutine
