DELTA MCS 1800 3U Power Shelf
Installation, Operations and
Maintenance Manual
REV: 00 A-4

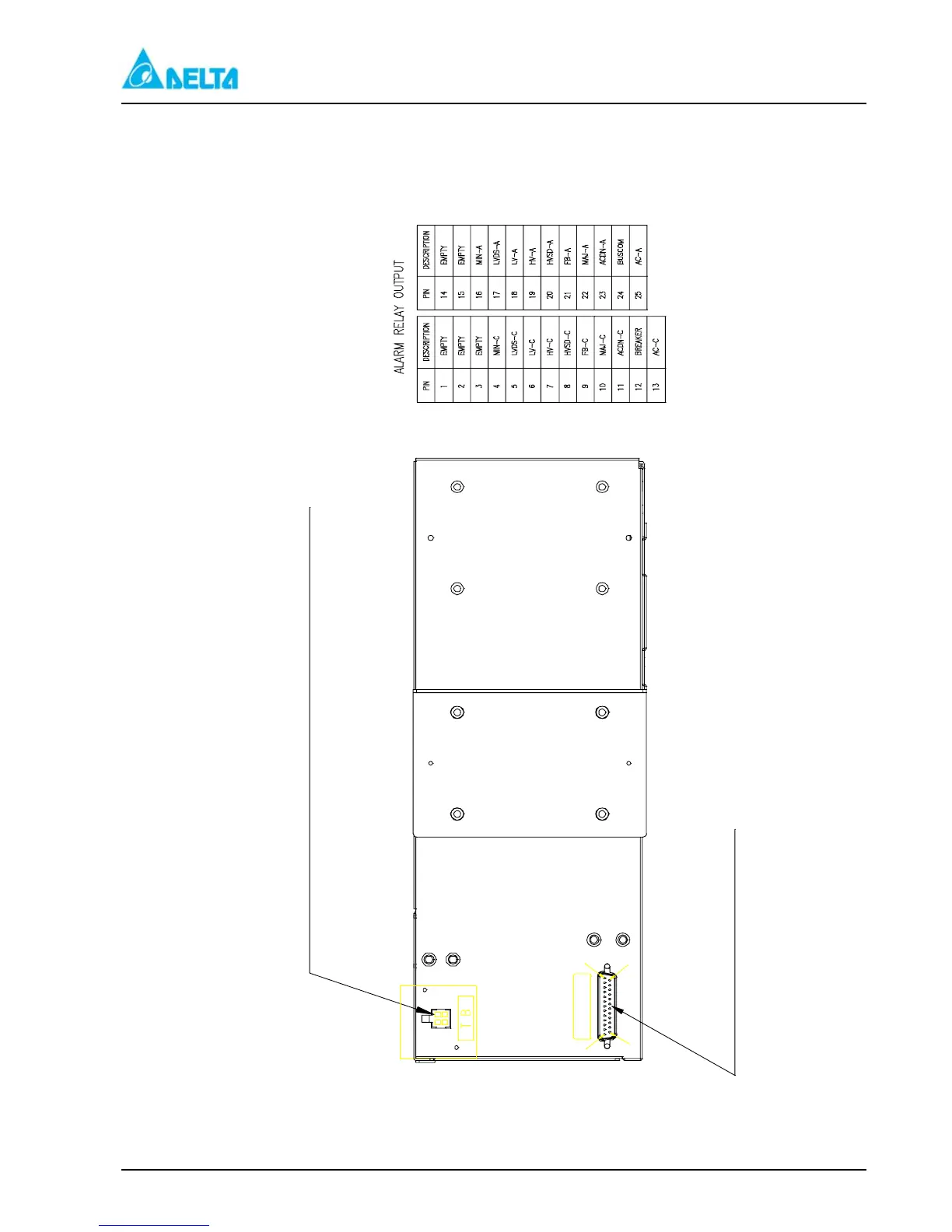

Figure 1-3: ES 48/120-JAAxx、ES 24/200-JAAxx (Battery Temperature
and Alarm Relay Output Connectors)
BATTERY TEMPERATURE DETECT SIGNAL INPUT
ALARM RELAY OUTPUT
14
25
ALARM RELAY
13
1
