Thank you for choosing Delta DVP-SE. DVP-SE is a 12-point (8DI + 4DO) PLC MPU,
offering various instructions and with 16k steps program memory, able to connect to all
DVP Slim type series extension modules and high-speed extension modules, including
digital I/O (max. 480 I/O points) and analog modules (for A/D, D/A conversion and
temperature measurement). 2 points of 100 kHz and 2 points of 10 kHz high-speed
pulse output satisfy all kinds of applications. DVP-SE is small in size, and can be
installed easily. Users do not have to install any batteries in DVP-SE series PLCs. The
PLC programs and the latched data are stored in the high-speed flash memories.
This instruction sheet only provides introductory information on electrical
specifications, general specifications, installation and wiring. For detailed information
on programming and instructions, please refer to “DVP-SE Operation Manual:
Programming”. For information about optional peripherals, please see individual
product instruction sheet enclosed with DVP-SE.
This is an OPEN TYPE device and therefore should be installed in an enclosure free
of airborne dust, humidity, electric shock and vibration. The enclosure should prevent
non-maintenance staff from operating the device (e.g. key or specific tools are
required to open the enclosure) in case danger and damage on the device may
occur.
DO NOT connect input AC power supply to any of the I/O terminals; otherwise
serious damage may occur. Check all the wiring again before switching on the power.
Make sure the ground terminal is correctly grounded in order to prevent
electromagnetic interference. DO NOT touch any terminals when the power is
switched on.
COM1 on this model is the Mini USB communication port. It only can be used to
upload the program from the PLC, download the program to the PLC, and debug the
program temporarily. It is not suitable for the long term monitoring function.

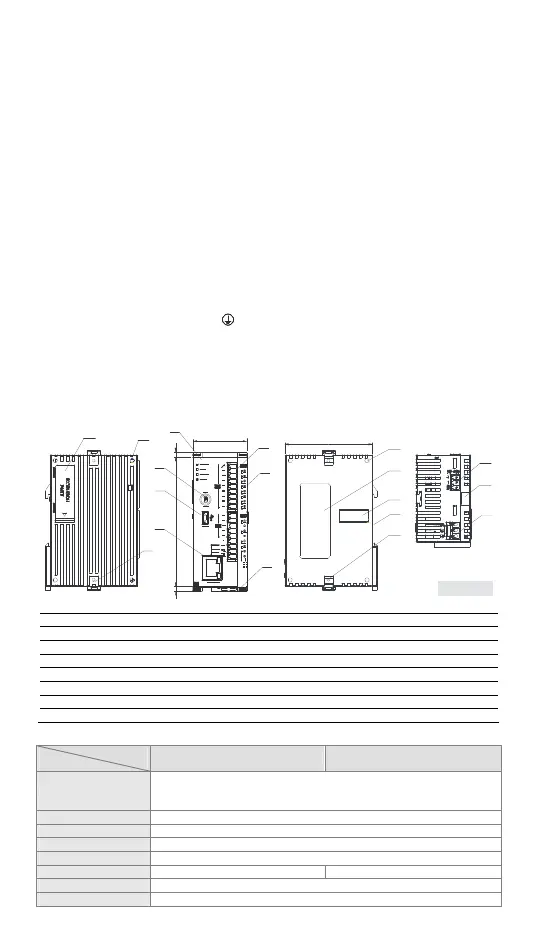

Product Profiles
DVP-12SE
s
s
-
1
2
3
4
5
6
7
9
8
8
10
11
12
3
12
13
14
15
16
37.4
90
60
[Figure 1]
3
Unit: mm
1. POWER, RUN, ERROR, COM1 indicator 9. Nameplate
2. RUN/STOP switch 10. Right-side extension port
3. COM1 port (Mini USB) 11. DIN rail mounting slot (35mm)
4. I/O terminals and COM3 comm. port (RS-485) 12. Extension unit clip
5. I/O point and COM2, COM3 indicator 13. COM2 communication port (RS-485)
6. Ethernet communication port 14. Mounting rail for extension module
7. DIN rail clip 15. DC power input
8. Mounting hole for extension module 16. Left-side module connection port
Electrical Specifications
Model
Item
DVP12SE11R DVP12SE11T
Power supply voltage
24 VDC (-15 to 20%)
(with counter-connection protection on the polarity of DC input power)
DVPPS01/PS02: input 100 to 240 VAC, output 24 VDC/1A (PS02: 2A)
Connector European standard removable terminal block (Pin pitch: 3.5mm)
Operation Maximum power loss time is 10ms or less.
Inrush current Max. 7.5 A@24 VDC, I
2
t = 0.25 A
2
S
Fuse capacity 2.5 A/30 VDC, Polyswitch
Power consumption 1.8 W 1.5 W
Power protection With counter-connection protection on the polarity of DC input power
Insulation resistance > 5 MΩ (all I/O point-to-ground: 500 VDC)
To Next Page
