3.5. Ignition Profile

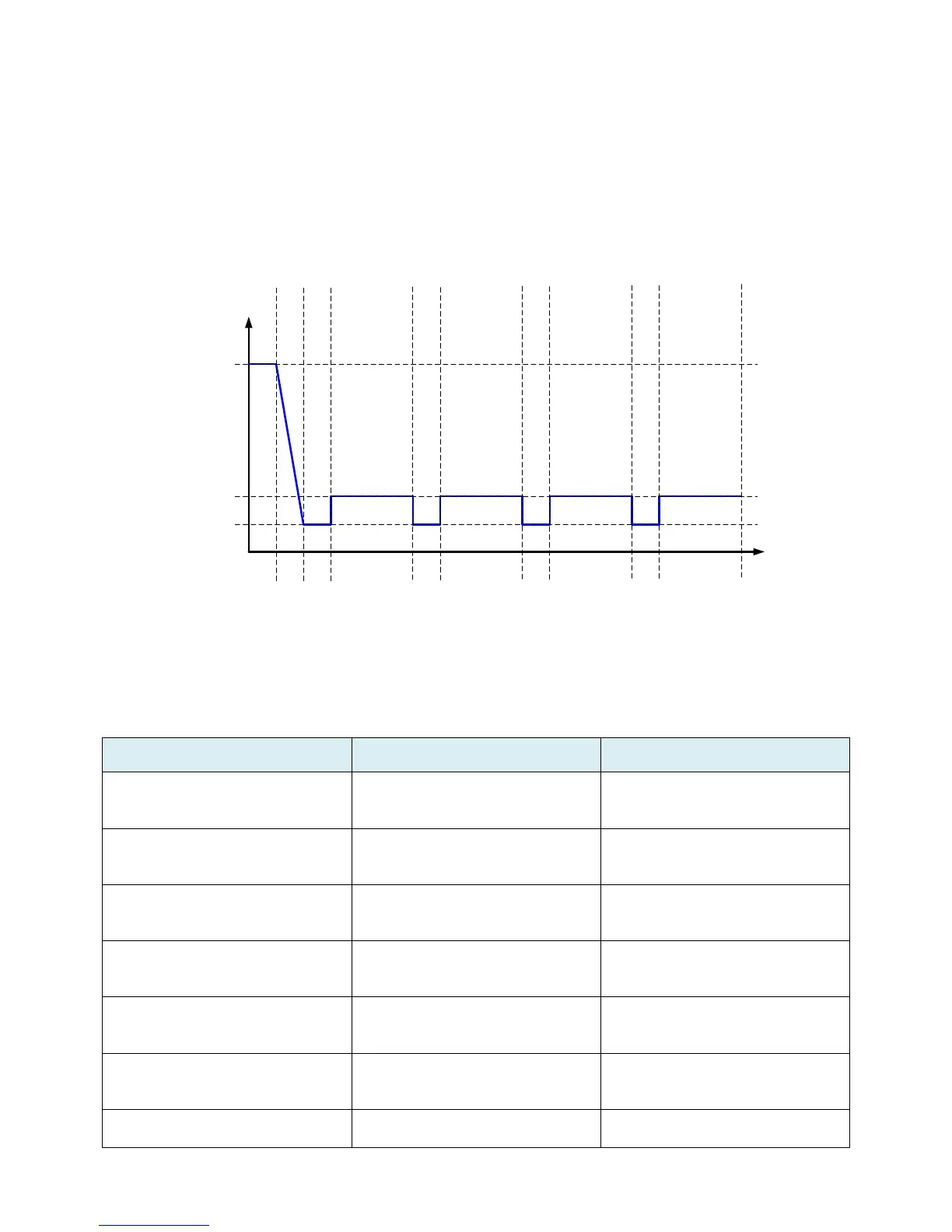

Figure 3.5 shows the waveform of output voltage under Ignition condition. When power ON
with ignition function enabled, the output voltage will rise from 0V to ignition voltage within 10ms.
Then the voltage will stay on ignition voltage for 100ms and fall to 1000V for 900ms. This profile
will repeat every 1s. If the chamber is ignited within 10s, the output voltage will change to the set-
point directly. If not, the generator will latch.
The Ignition voltage can be set from 1000V to 1900V, 100V increment.
0V
t
Output
Voltage
-1900V
-1000V
10ms 100ms 900ms 900ms 900ms 900ms100ms 100ms 100ms
Figure 3.5 Ignition Profile
3.6. Process and Monitor Function
Table 3.4 Adjustable function parameters for User
Item
Specification
Description
Max. Power
20 to 1.5 kW
Power will be constrained within
the value of setting prior to the
set point of regulation.
Max. Current
0.01 to 4.62 A
Current will be constrained
within the value of setting prior
to the set point of regulation.
Max. Voltage
500 to 1000 V
Voltage will be constrained
within the value of setting prior
to the set point of regulation.
Ignition Mechanism
1000 to 1900 V
A voltage up to 1900 V is
adjustable for igniting the
system.
Ramp Time
50 to 2000 ms
A ramp up to set point is
adjustable for a soft start
mechanism.
Set Point
1 to 10 s
Monitoring if the output reaches
the setting of regulation within
the setting of period.
Energy Mode
1 to 99999 kJ
Monitoring if the output energy
reaches the setting of energy.
