Delta HPP-1K5A01KAT User Manual

17.
Air cooling

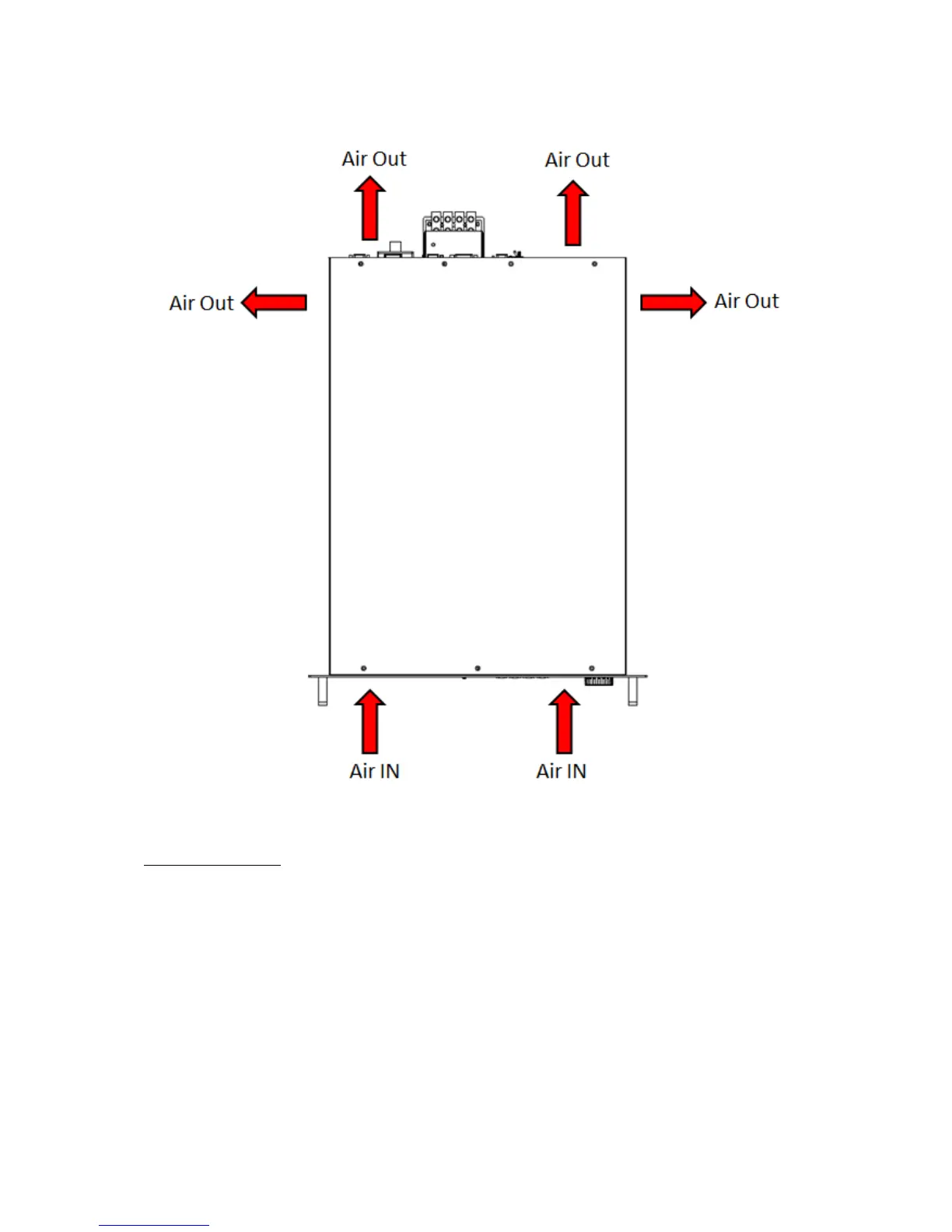

Figure 3.7 Air Flow Schematic Diagram
Delta “HPP-1K5A01KAT” sputtering power supply is the forced air cooling type. Please keep enough
space for air flow cooling capability when it is installing to the cabinet. Air inlet on the front panel and
air outlet on the rear panel is shown in figure 3.7. Air outlet of rear panel is responsible for dissipating
the heat from inside of power supply to outside by internal two fans. The temperature of air inlet
should not exceed 40degree C.
