Delta SOLIVIA 10 EU T4 TL - Adjustable Parameters; Figure 7.26.: Fault Ride through Settings Page

85
EN
Operating the PV inverter
➀
➁ ➂
➃
➀
No instability or disconnection from the network
➁
Feed-in reactive current depends on K factor
➂
Same as area 2, Feed-in reactive current depends on K factor
➃
Disconnects from the network

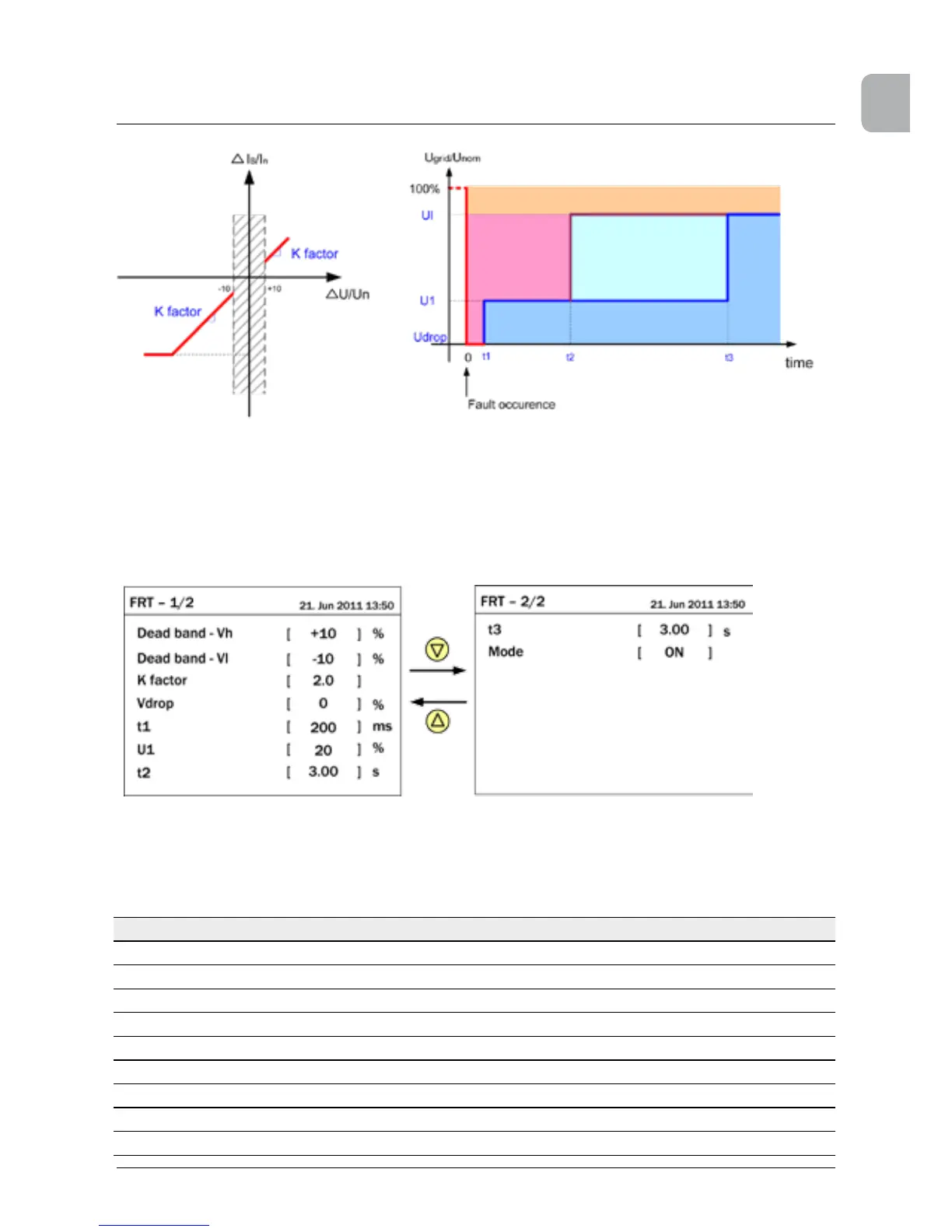

Figure 7.26.: Fault Ride Through settings page
Adjustable parameters
Parameter Adjustable values Description
Dead band - Vhigh +0 ... +20 %
Dead band - Vlow -20 ... 0 %
K factor 0 ... 10
Vdrop 0 ... 90%
t1 0 ... 500 ms
U1 20 ... 90%
t2 0.01 ... 5 s
t3 0.01 ... 5 s
Mode ON | OFF This switches the feature on and off
