C.
D.
A.
B.

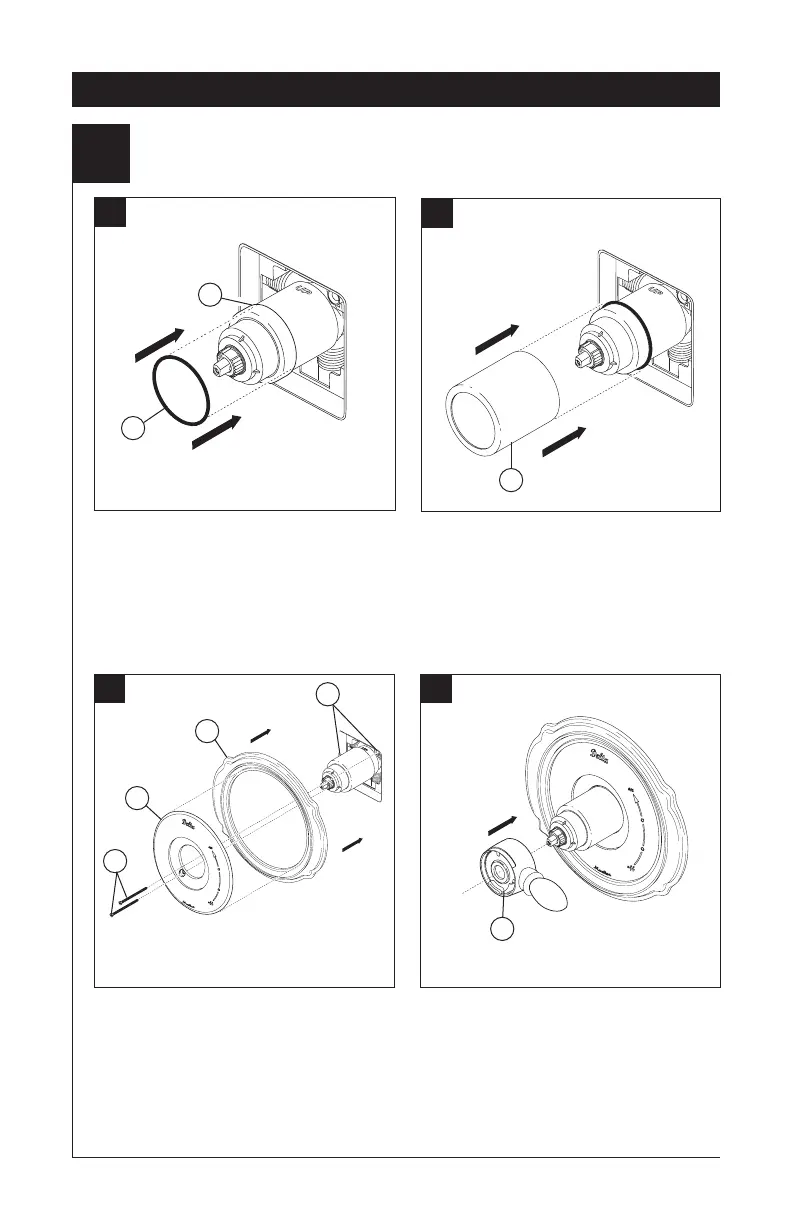

Slide O-ring (1) over cartridge and the
bonnet nut (2). The O-ring, which acts as
a spacer to steady the sleeve, should rest
behind the bonnet nut.
Slide the sleeve (1) over the cartridge,
body and O-ring. Ensure sleeve is properly
positioned over the front of cartridge.
Secure the escutcheon (1) and
backplate (2) (if your model has one) to the
bracket (3) with the 2 screws provided (4).
Do not overtighten escutcheon screws.
Install volume control handle (1) with lever
to the right, then turn to the on position.
DO NOT SECURE WITH SCREW.
17 Series Installation
3
Trim Installation
1
2
1
1
2
3
4
1
9
To Next Page
