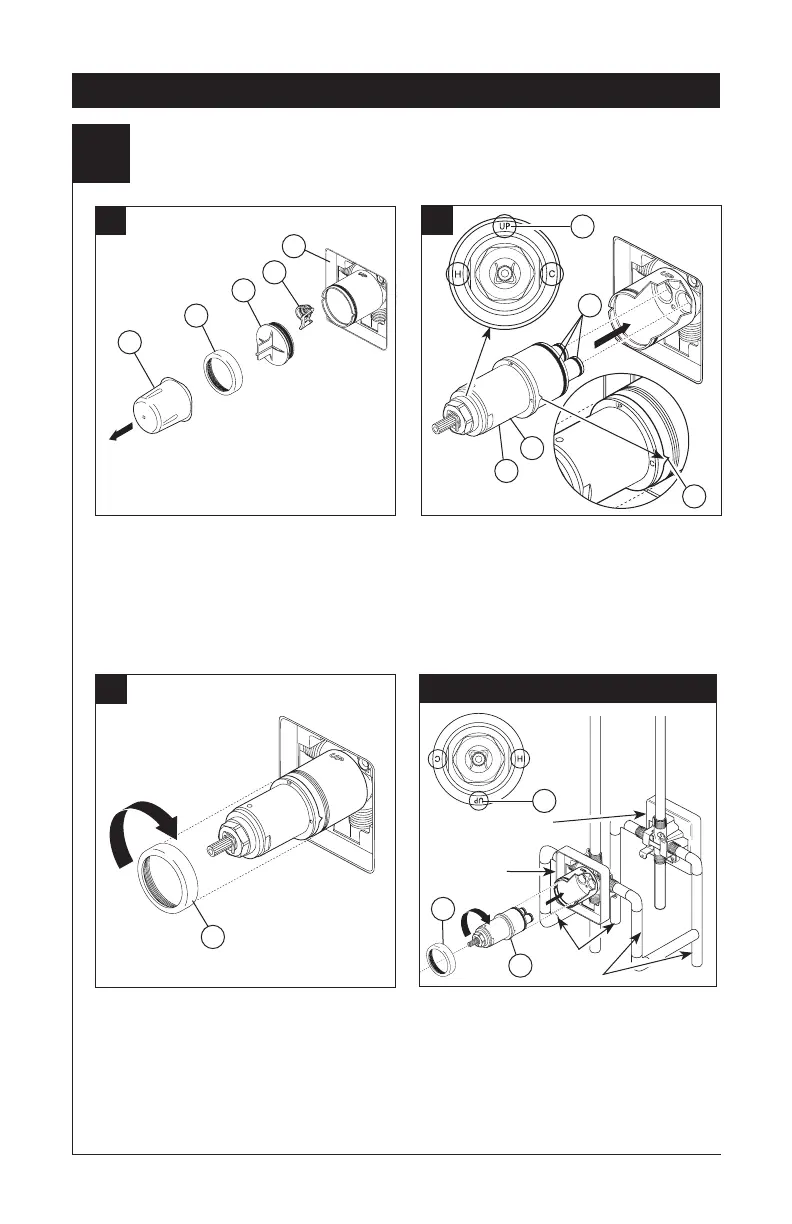

17T Series Installation

Cartridge Installation

Turn off water supplies. Remove cover (1),

bonnet nut (2) and test cap (3) from the body.

Place a bucket or small container over the front

of the valve body and slowly open the water

supplies to ﬂush any debris from the supply

lines before installing the cartridge. Turn the

water suplies back off. If this is not a thin wall

mounting, the entire plasterguard (4) may be

removed. If screen (5) is in place, remove before

installing cartridge.

Rotate the cartridge (1) so the word “UP” (2)

appears on the top. The “H” must be on the hot

side and the “C” must be on the cold side. Add

silicone lube to the three o-rings (3) shown above

to make the cartridge easier to install and remove

from the valve body. Insert cartridge into valve

body as shown. Ensure the keys on the body are

fully engaged with the slots in the body (4).

For the exceptions of back to back or reverse

installations (hot on right and cold on left) only:

Rotate cartridge (1) so “H” is on the hot side and

“C” is on the cold side and the word “UP” (2)

appears on the bottom. Add silicone lube to the

three o-rings shown above to make the cartridge

easier to install and remove from the valve body.

Install the cartridge making sure that the keys are

fully engaged with the slot in the brass body (see

step B). Slide bonnet nut (3) over the cartridge and

thread onto the body. Hand tighten securely.

Back to back Installation

Normal Installation

(changes not required)

Reverse

Installation

Cold

Hot

Slide bonnet nut (1) over the cartridge and

thread onto the body. Hand tighten securely.
