Delta VFD002EL21W-1 - Frame B Dimensions

Chapter 1 Introduction  VFD-EL-W
1-13
Frame B
VFD015EL21W(-1), VFD022EL21W(-1), VFD022EL43W(-1), VFD040EL43W(-1)
See B
(mounting hole)
(mounting hole)
Unit: mm [inch]

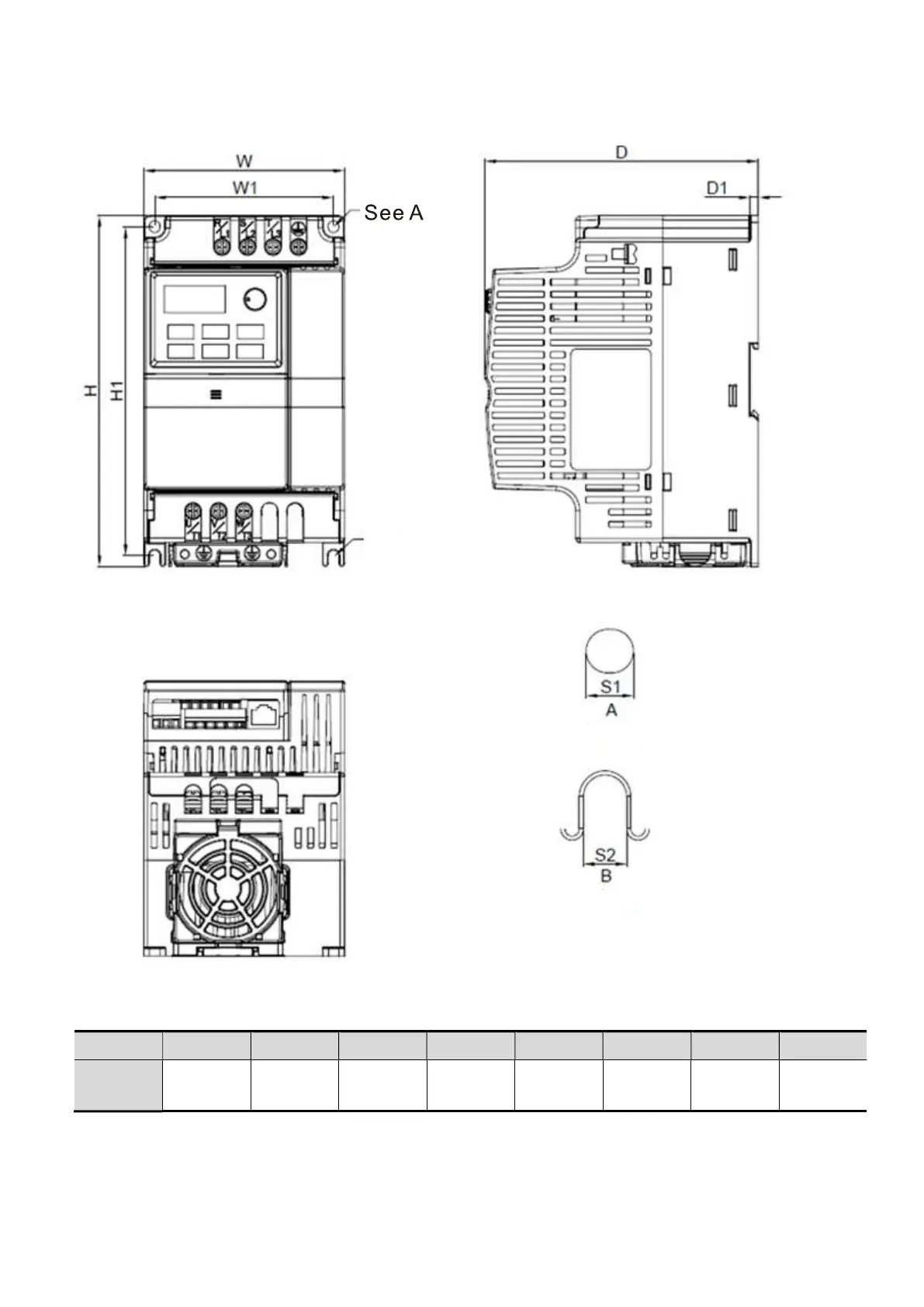

Frame W W1 H H1 D D1 S1 S2
B
100.0
[3.94]
89.0
[3.50]
174.0
[6.86]
162.9
[6.42]
136.0
[5.36]
4.0
[0.16]
5.9
[0.23]
5.4
[0.21]
