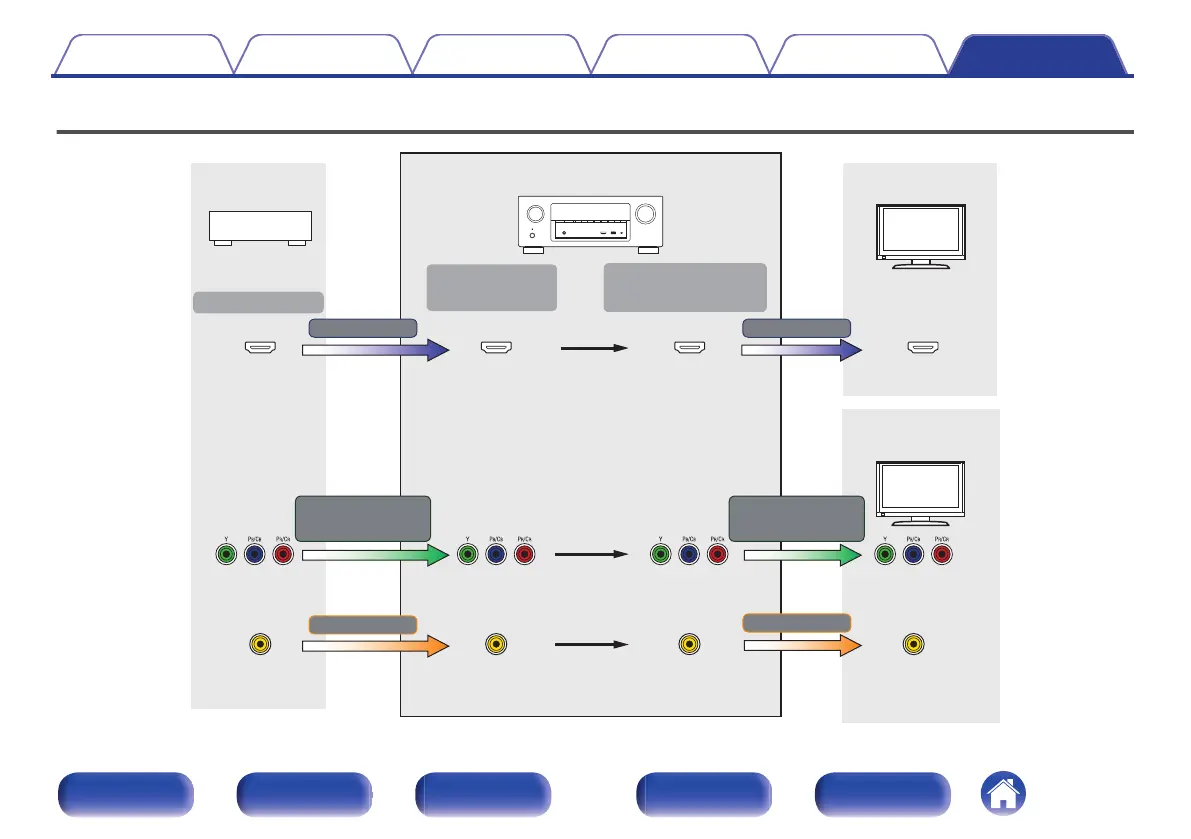

Relationship between video signals and monitor output
.
HDMI-compatible TV
Output
(MONITOR OUT)
Input (IN)
Video signal
Video signal
Component video
signal
HDMI signal
Output
Video device
HDMI-incompatible TV
HDMI signal
HDMI connector HDMI connector HDMI connector HDMI connector
Component video
signal
Component video
connectors
Component video
connectors
Component video
connectors
Component video
connectors
Video connector Video connector Video connector Video connector
This unit
