7

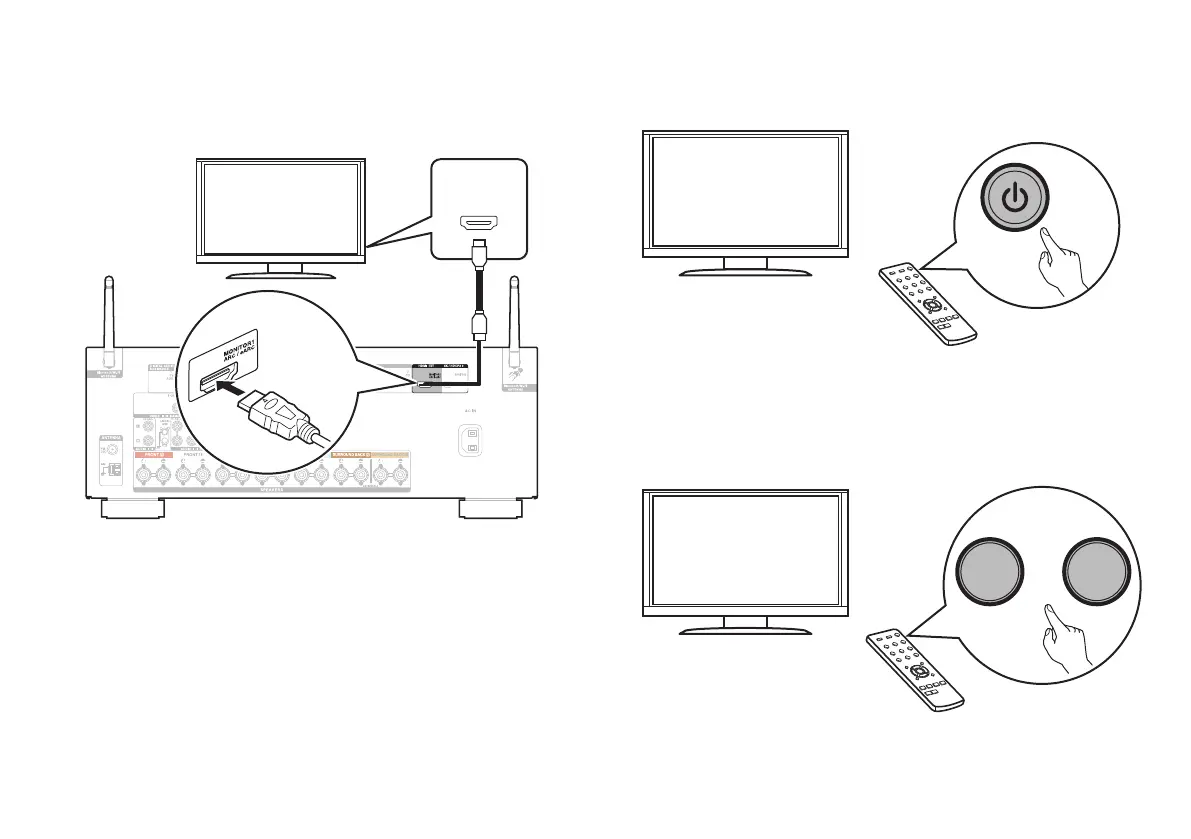

3) Connect the receiver to your TV with
an HDMI cable
(ARC/eARC)
HDMI IN
HDMI OUT
MONITOR 1
(ARC/eARC)
HDMI cable
Receiver (Rear panel)
ARC (Audio Return Channel) and eARC (Enhanced Audio
Return Channel) support:
If your TV supports ARC, your TV can send audio back to the AV receiver
when you are using your TV’s built-in video sources (TV tuner, Smart TV
streaming services, etc.) ARC requires that you enable HDMI CEC on your
TV. Please refer to your TV’s Owner’s Manual for instructions on how to
setup HDMI CEC. In addition, if your TV supports eARC, it can also send
back high bitrate audio formats such as Dolby TrueHD, Dolby Atmos,
DTS-HD Master Audio and DTS:X. Please refer to your TV’s Owner’s
Manual for additional information about enabling the eARC function.
4) Turn on the TV
TV remote control unit
5) Select the appropriate HDMI input on
your TV
HDMI
or
TV/
VIDEO
INPUT
TV remote control unit
1. AVR-X2600H_2600HDAB_E2_QSG_ENG_00A_190313.indd 7 2019/03/20 15:30:56
