Denon AVR-X4200W Quick Start Guide

3

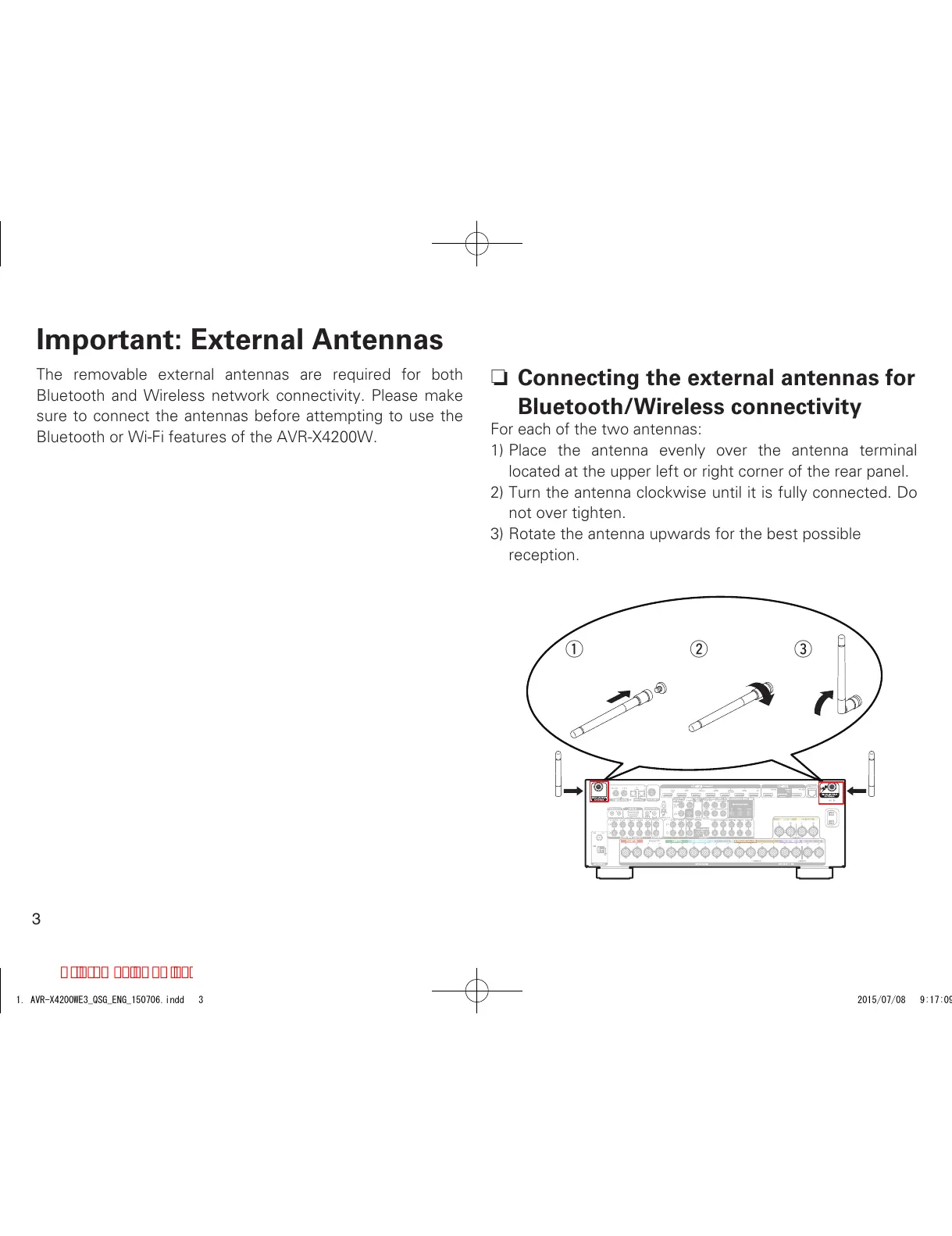

Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X4200W.
n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
1) Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
2) Turn the antenna clockwise until it is fully connected. Do
not over tighten.
3) Rotate the antenna upwards for the best possible
reception.
q w e
1. AVR-X4200WE3_QSG_ENG_150706.indd 3 2015/07/08 9:17:09
Printedcolor:Black
All manuals and user guides at all-guides.com

Denon AVR-X4200W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Component video (YPbPr/YCbCr) out	1
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	FLAC, WAV
Supported radio bands	AM, FM
Internet radio services supported	Pandora, Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby Surround, Dolby TrueHD, DTS-HD Master Audio
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12600 g
