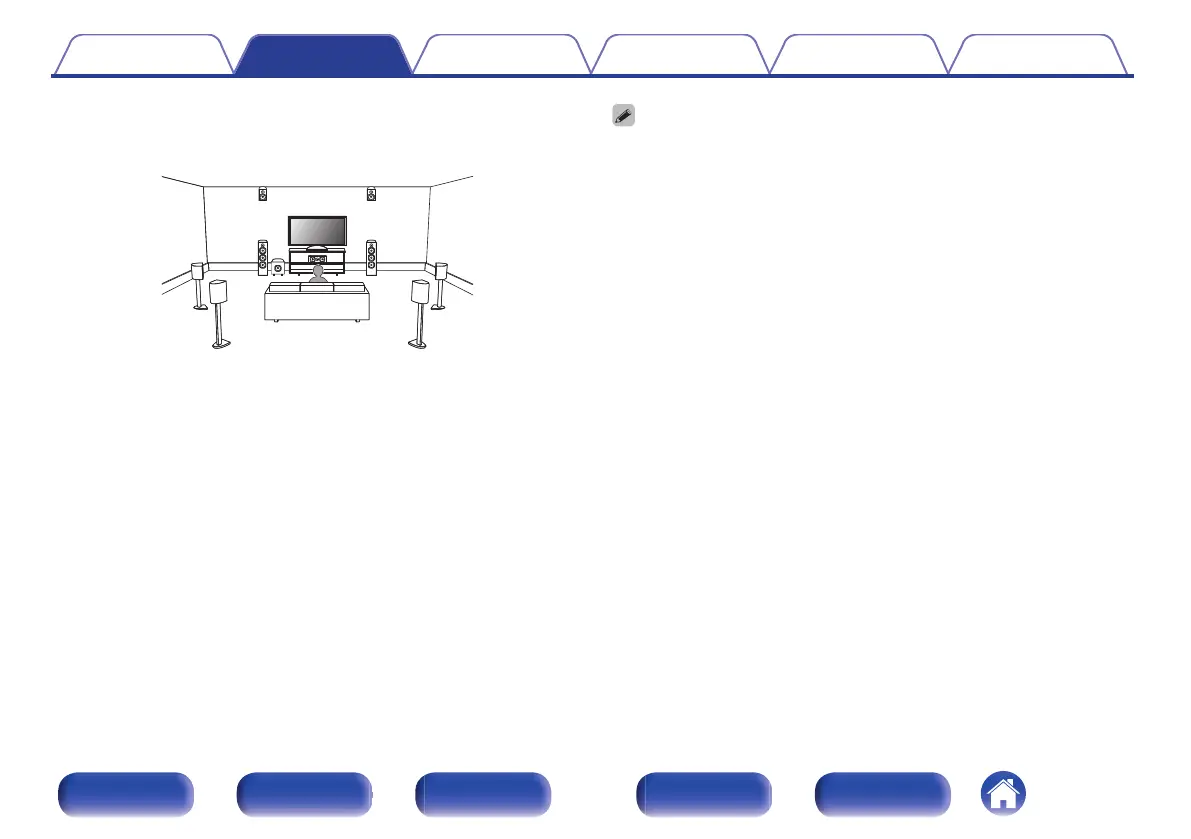

Example layout when using surround back
and one set of height speakers
C
FL FR
SBL
SBR
SW
SL SR
FHL FHR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 44)
0
“Connecting an external power amplifier” (v p. 45)
0
Set Speaker Layout in the menu as follows. (v p. 226)
1. Center: Yes
2. Surround: Yes
3. Surround Back: 2 spkrs
4. Height Speakers: 2 spkrs
5.
Layout: Front Heightz
6. Subwoofers: 1 spkr
z
The front height speakers can be changed to other height, ceiling or Dolby
Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.
