Connecting 11.1-channel speakers
o

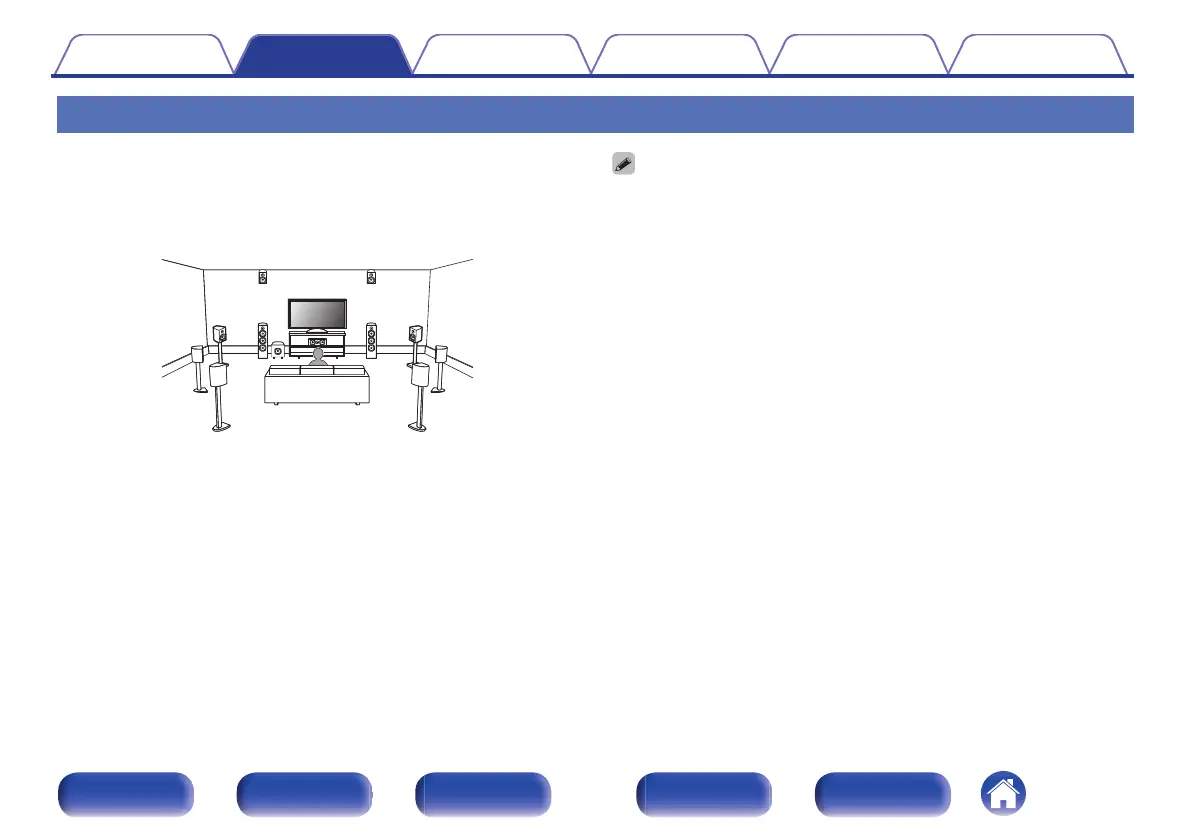

Example layout when using surround back,
Front Wide and one set of height speakers
C
FL FR
SW
RSLS
FHL FHR
FWL FWR
SBL
SBR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 44)
0
“Connecting an external power amplifier” (v p. 45)
0
Set Speaker Layout in the menu as follows. (v p. 226)
1. Center: Yes
2. Surround: Yes
3. Surround Back: 2 spkrs
4. Front Wide: Yes
5. Height Speakers: 2 spkrs
6.
Layout: Front Heightz
7. Subwoofers: 1 spkr
z
The front height speakers can be changed to other height, ceiling or Dolby
Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.
