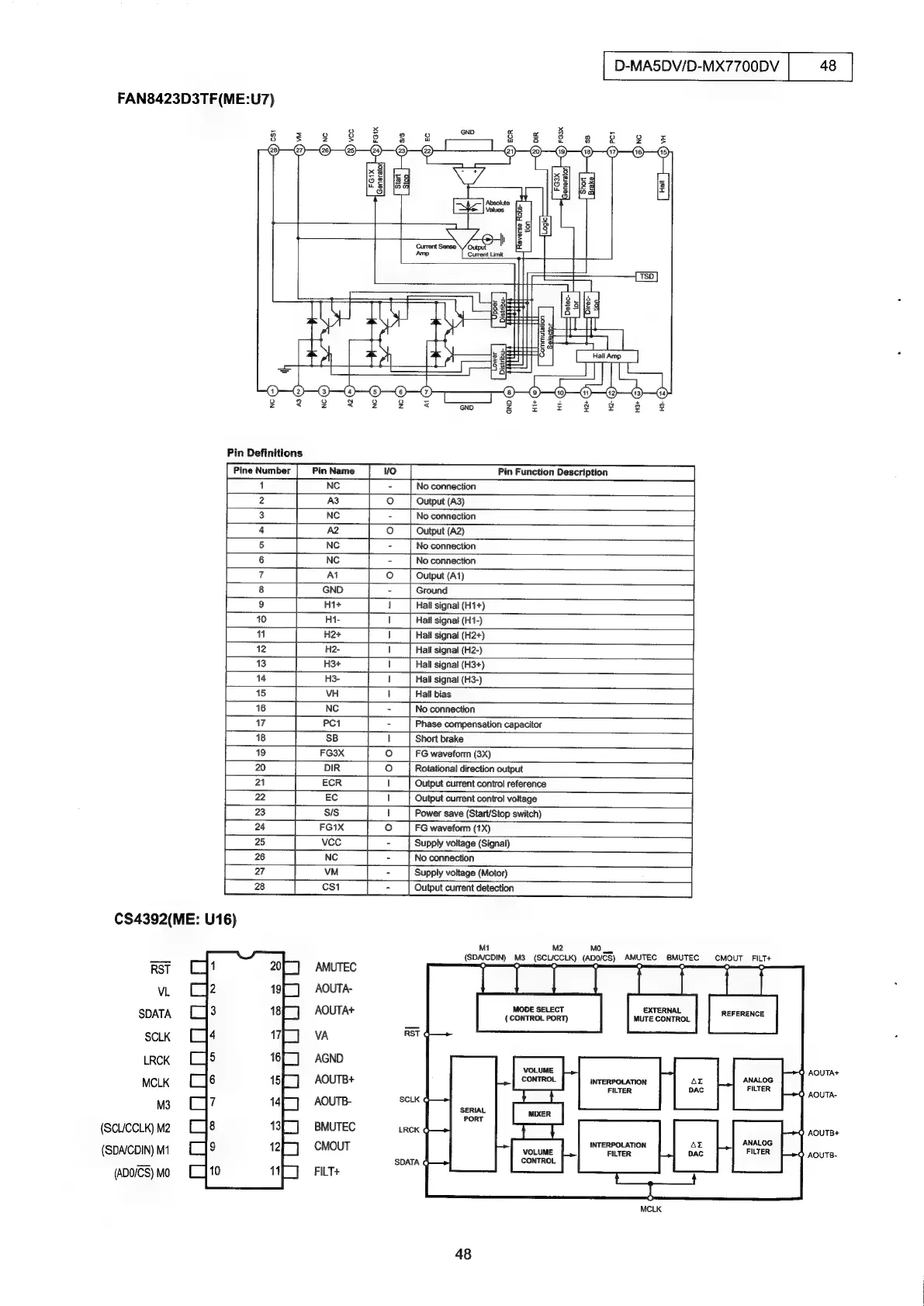

FAN8423D3TF(ME:U7)
D-MASDV/D-MX7700DV 48
Pin Definitions
CMOUT FILT+
9 O
ANALOG
FILTER
rl AOQUTA+
@ AOUTA-
nl AOUTB+
GY AOUTB-
ANALOG
FILTER
Pine Number Pin Name vo Pin Function Description
1 NC - No connection
2 A3 (e} Output (A3)
3 NC - No connection
4 A2 O | Output (A2)
5 NC - No connection
6 NC - No connection
7 Output (At
3 Ground
9 H1+ | 1 | Hall signal (H1+)
10 H1- | t _ | Hall signal (H1-)
11 | H2+ |__| Hall signal (H2+)
12 Hall signal (H2-)
13 H3+ | Hall signal (H3+)
14 H3- | 1 | Hall signal (H3-)
15 Vi
16 No connection
17 PC1 - Phase compensation capacitor
| 88 [1 _| Shon brake
19 FG3X ce) FG waveform (3X)
20 DIR fe} Rotational direction output
21 ECR | Output current control reference
22 Ec i] Output current control voltage
23 s/s | Power save (Start/Stop switch) —
24 FG1X oO FG waveform (1X)
25 vcc - Supply voltage (Signal)
26 NC - No connection
27 VM Supply voltage (Motor)
28 csi - Output current detection
CS4392(ME: U16)
M2 MO
(SDA/CDIN) M3 (SCL/CCLK) (ADO/CS) AMUTEC BMUTEC
RST AMUTEC 7 Y ’ Y t
‘i sours ae ae ee
SCLK VA rere
LRCK AGND
MCLK AOUTB+ INTERPOLATION
M3 AOUTB- SCLK q
(SCLICCLK) M2 BMUTEC Lack d
(SDACDIN) M1 CMOUT mr rTER
SDATA @
(ADO/CS) Ma FILT+
48
