@ DN-95 1FA/961FA

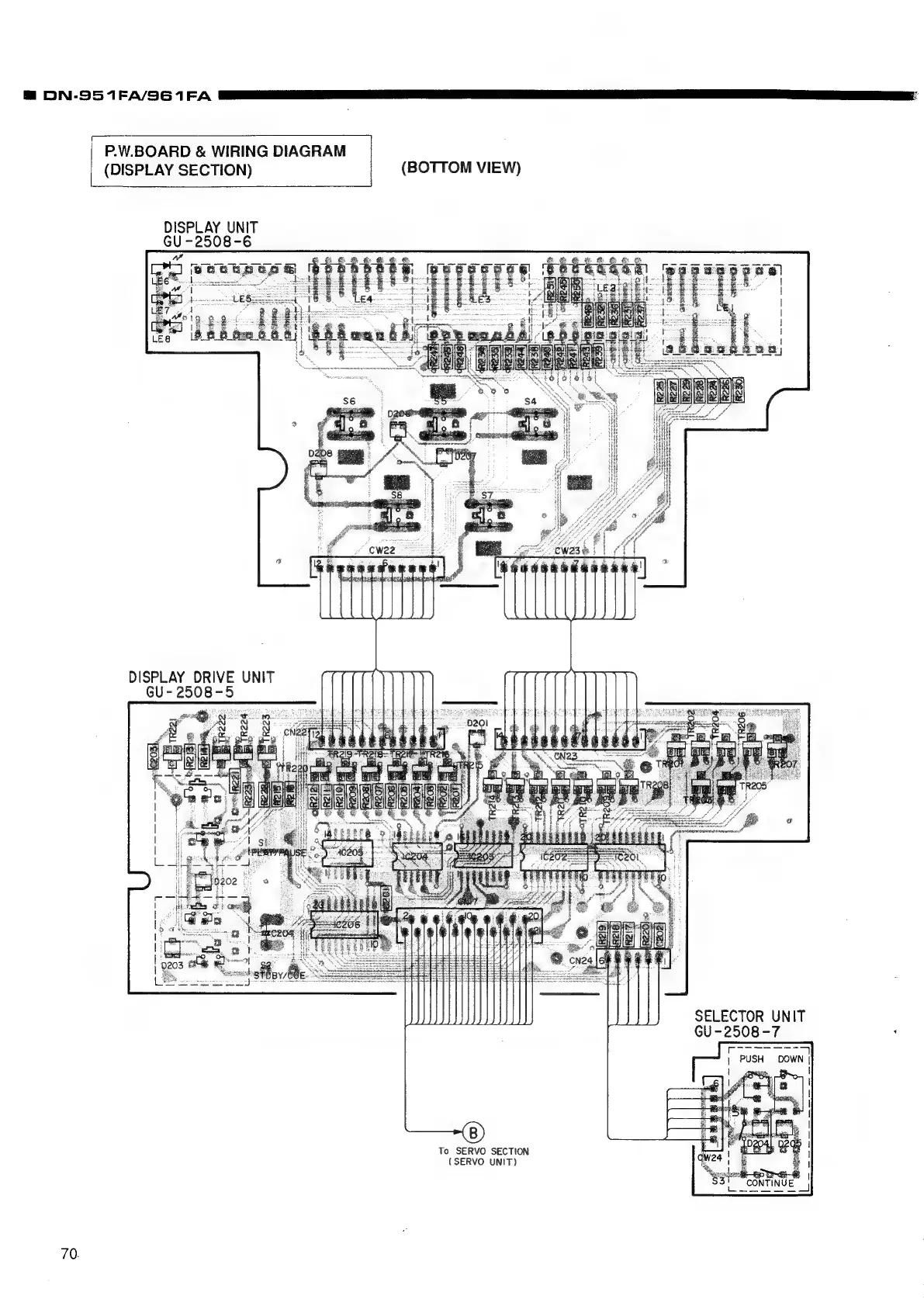

P.W.BOARD & WIRING DIAGRAM
(BOTTOM VIEW)
| (DISPLAY SECTION)
-6
DISPLAY UNIT
GU-2508
7
SELECTOR UNIT
GU-2508 -
-_ONTINE
To SERVO SECTION
(SERVO UNIT)
DISPLAY DRIVE UNIT
GU- 2508-5
