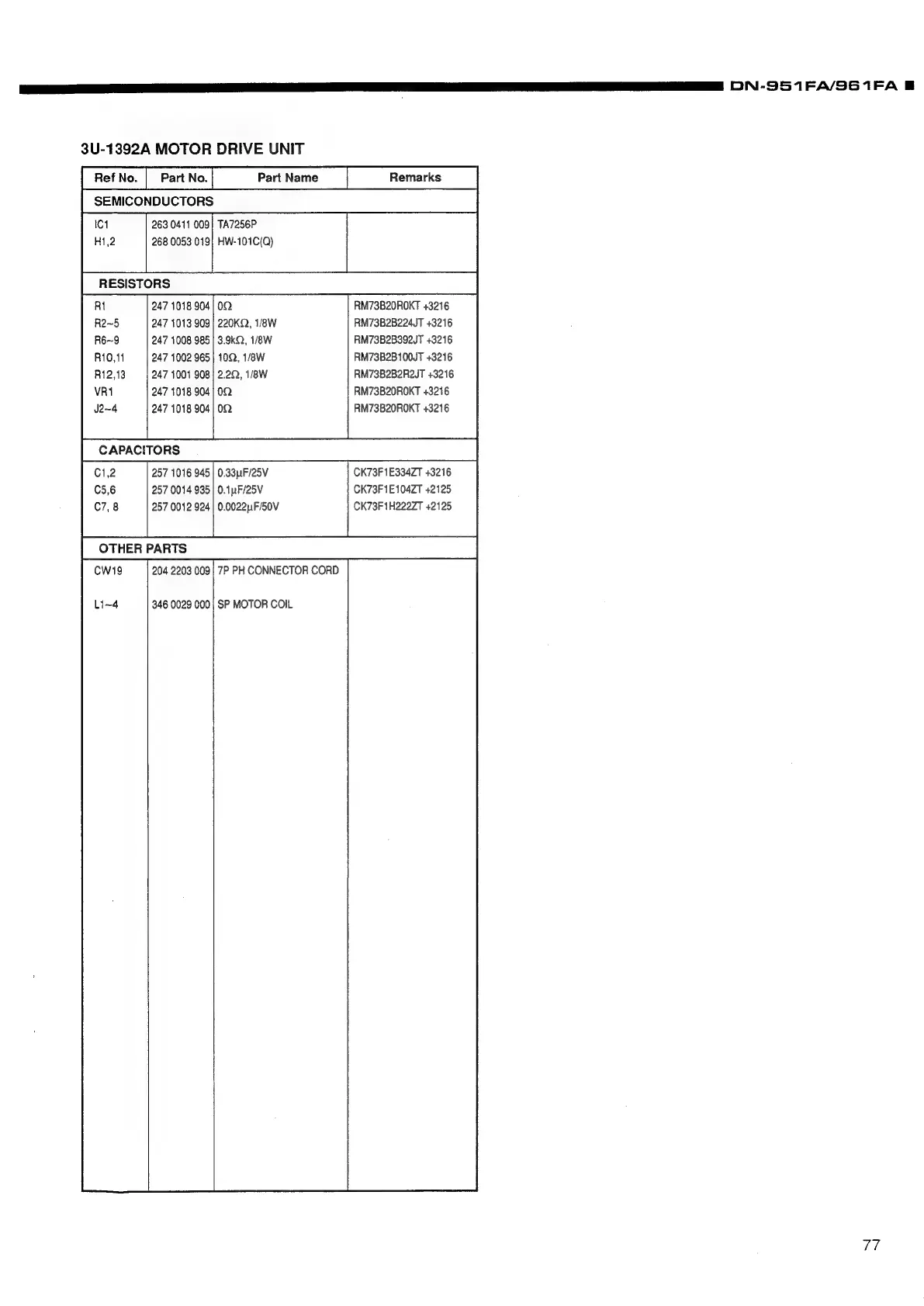

3U-1392A MOTOR DRIVE UNIT
Ref No. Part No. Part Name Remarks
SEMICONDUCTORS
263 0411 009} TA7256P
268 0053 019} HW-101C(Q)
RESISTORS
247 1018 904 | 0Q RM73B20ROKT +3216
an 247 1013 909 | 220K22, 1/8W RM73B2B224UT +3216
R6~9 247 1008 985 | 3.9kQ, 1/8W RM73B2B392UT +3216
R10,11 247 1002 965 | 10Q, 1/8W RM73B2B100JT +3216
R12,13 247 1001 908 | 2.2Q, 1/8W RM73B2B2R2uJT +3216
VR1 247 1018 904 | 0Q RM73B20ROKT +3216
RM73B20ROKT +3216
J2~4
CAPACITORS
247 1018 904
C1,2 257 1016 945 | 0.33uF/25V CK73F1E334ZT +3216
C56 257 0014 935 | 0.1uF/25V CK73F1E104ZT +2125
C7, 8 257 0012 924 | 0.0022uF/50V CK73F1H222ZT +2125
OTHER PARTS
204 2203 009| 7P PH CONNECTOR CORD
346 0029 000; SP MOTOR COIL
