13DN-S5000

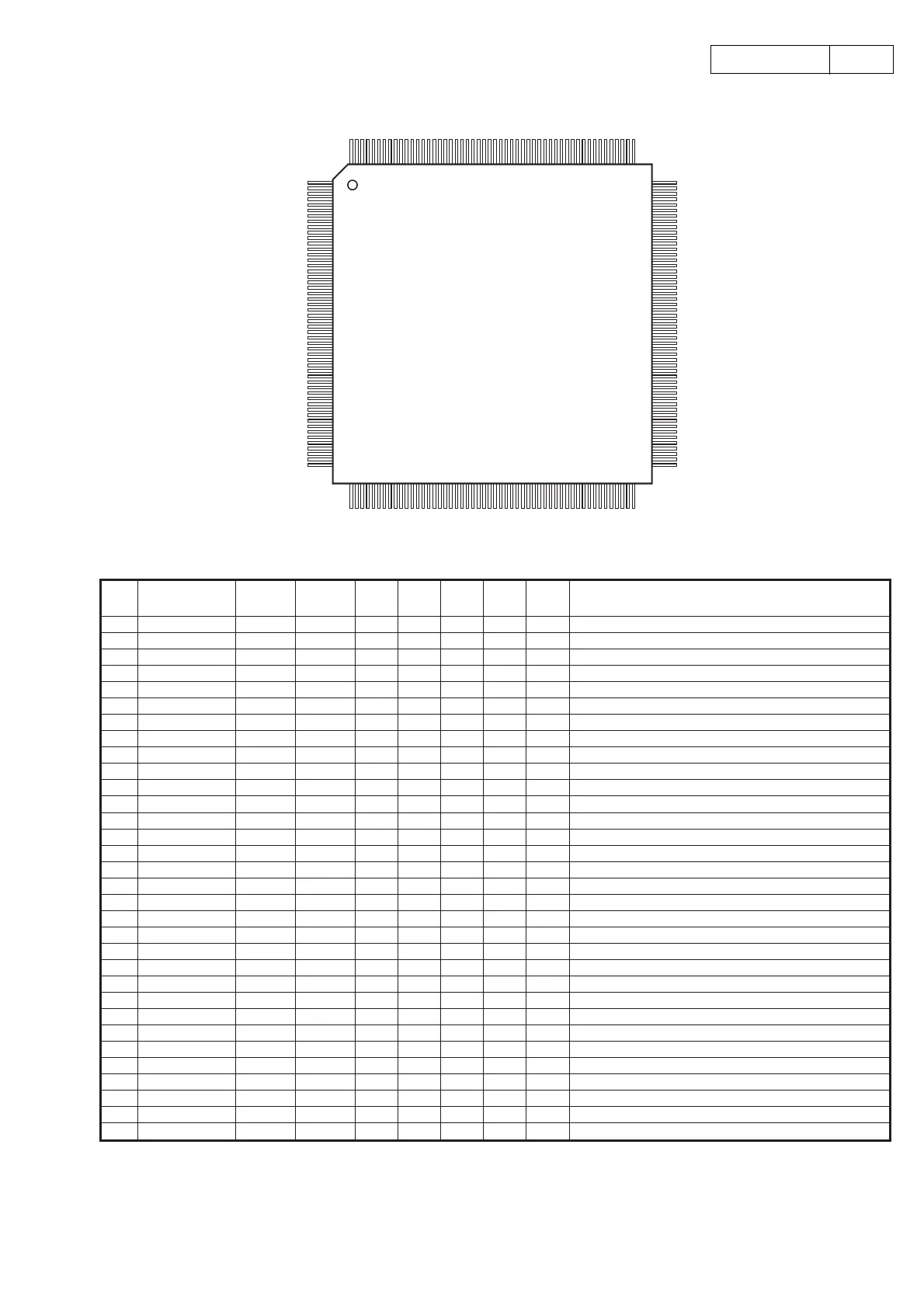

ADSP-21065L (IC401)
ADSP-21065L Terminal Function
53
52
1
105
156
104
208 157
TOP VIEW
Function
Pin
No.
Port Name
Symbol
(IC301)
I/O DET Ext Ini
Symbol
(IC401)
1VDD VDD VDD —————Power (+3.3V)
2 RFS0 YLRCK YLRCK I — IPu — H
Receive frame sync (LRCK) signal (Serial port IN 0)
3GND GND GND —————GND
4 RCLK0 YBCK YBCK I — — — — Receive frame sync (BCK) signal (Serial port IN 0)
5 DR0A ADDATA ADDATA I — IPu — H Data receive A (serial port IN 0)
6 DR0B I — IPu — H Data receive B (serial port IN 0)
7 TFS0 YLRCK YLRCK I — IPu — H
Send frame sync (LRCK) signal (Serial port OUT 0)
8 TCLK0 YBCK YBCK I — — — — Send frame sync (BCK) signal (Serial port OUT 0)
9VDD VDD VDD —————Power (+3.3V)
10GND GND GND —————GND
11 DT0A MOUT1 MOUT2 O — IPu — H Data send A (Serial port OUT 0)
12 DTOB DOUT1 DOUT2 O — IPu — H Data send B (Serial port OUT 0)
13 RFS1 LRCK1 LRCK2 I — IPu — H
Receive frame sync (LRCK) signal (Serial port IN 1)
14GND GND GND —————GND
15 RCLK1 BCK1 BCK2 I — — L — Receive frame sync (BCK) signal (Serial port IN 1)
16 DR1A SAMP2 SAMP1 I — IPu — H Data receive A (serial port IN 1)
17 DR1B I — IPu — H Data receive B (serial port IN 1)
18 TFS1 LRCK2 LRCK1 I/O — IPu — H
Send frame sync (LRCK) signal (Serial port OUT 1)
19 TCLK1 BCK2 BCK1 I/O ————Send frame sync (BCK) signal (Serial port OUT 1)
20
VDD VDD VDD —————Power (+3.3V)
21VDD VDD VDD —————Power (+3.3V)
22 DT1A SOUT1 SOUT2 O — IPu — H Data send A (Serial port OUT 1)
23 DT1B SAMP1 SAMP2 O — IPu — H Data send B (Serial port OUT 1)
24 PWM_EVENT1 I/O — Pd — L PWM1 output
25GND GND GND —————GND
26 PWM_EVENT0 I/O — Pd — L PWM0 output
27 BR1_ I — Pu — H Multi-processing bus request 1
28 BR2_ I — Pu — H Multi-processing bus request 1
29VDD VDD VDD —————Power (+3.3V)
30 CLKIN I — — — — Clock input
31 XTAL_ O — — — — X’tal oscillator pin
32VDD VDD VDD —————Power (+3.3V)
