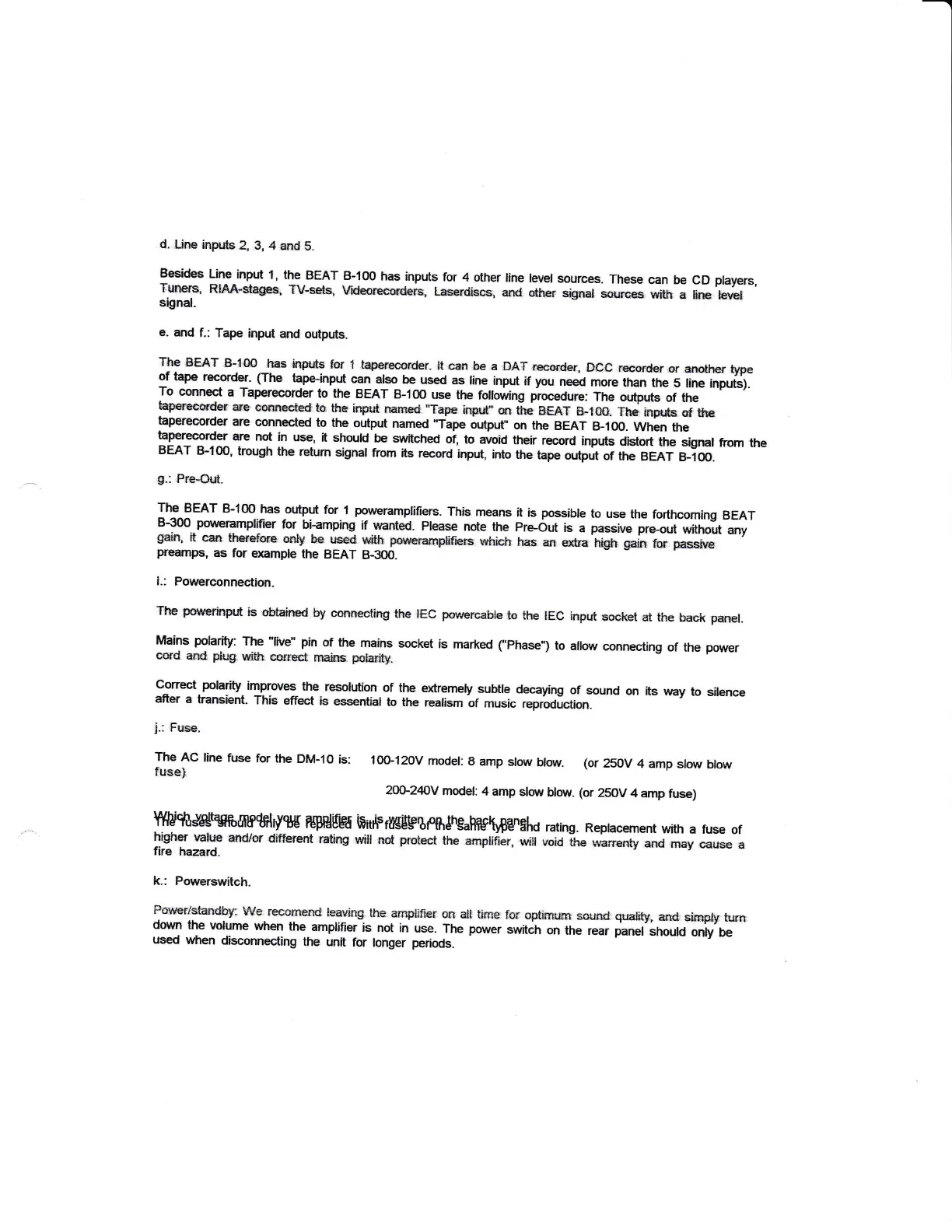

Line inputs
2, 3, 4
and
5.
Besides
Line
input
1,
the
BEAT
8-100
has
inputs
for
4 other
line
level
sources.
These
can
be
CD
players,
i-uners'
RiAA-stages,
TV-sets,
Videorecorders,
Laserdiscs,
and
other
signal
sources
with
a lin€
level
signal.
e.
and
f.:
Tape
input
and
outputs.
The
BEAT
B-1o0
has inputs
for
I taperecorder,
lt
can be
a DAT
recorder,
DCC
recorder
or
another
iype
of
tape
recorder.
(The
tap+'input
can
also
be used
as
line
input
if
you
need
more
than
the
5
line inpuiiy.
To
connect
a Taperecorder
to the
BEAT
B-10O
use
the following procedur":
The
outputs
of the
taperecorder
are
connected
io
the
inpui
named
"Tape
inpuf'on
the
BEAT
g-10e.
The
inpuis
of
the
taperecorder
are
connected
to
the output
named.,Tape
output,'
on
the
BEAT
B-1oo.
when
the
taperecorder
are not
in
use,
it should
be switched
of,
to avoid
their
record
inputs
distort
the
signal
from
the
BEAT
B-10o,
trough
the return
signal
from
its
record
input,
into
the
tape
output
of
the
BEAT
B-1@.
g.:
Pre,Out.
The
BEAT
B-10o
has
output
for
I
poweramptifiers.
This
means
it is
possible
to
use
the
forthcoming
BEAT
8-300 poweramplifier
for
bi-amping
if wanted.
Please
note the
Pre-dut
is
a
passive
pre-out
withJut
any
gain,
it
can
therefore
only.
be_1sed
wlth
poweramptifiers
which
has
an
exka
high
gain
for
passive
'
preamps,
as for
example
the BEAT
8-300.
i.:
Powerconnection.
The
powerinput
is obtained
by connecting
the lEc
pow€rcable
to the
IEC input
socket
at the
back
panei.
Mains
polarity:
The
"live"
pin
of
the
mains
socket
is marked
("Phase")
to
allow
connecting
of
the
power
eord
and
piug
with
correct
mains
potaftty
conect polarlty
improves
the
resolution
of
the extremely
subtle
decaying
of
sound
on its
way
to
silence
after
a
transient.
This
effect
is es.sential
to the
realism
of
music
reprodiction.
j.:
Fuse.
The
AC
line
fuse
for the
DM-1o
is:
10o-120V
model:
8
amp slow
blow.
(or
2sov
4 amp
slow
blow
fuse)
20024oV
model:
4 amp
slow
blow. (or
2SOV
4
amp
fuse)
Wfg"rugtgfo,fF*{{iiu
ruFilrEd
tsitLrwgilPtro{hJhsahtr,t}&gnEhd
ratins.
Repracement
with
a ruse
or
higher
value
ancLlor
different
rating
wiil not
proteci
the amplifier,
wiil void
Ihe
wanenty
and
may
cause
a
fire
hazard.
k.:
Powerswitch.
Power/standby:
We reesi-nend
leaving
the arnpiifier
on
aii time
for
optimum
scund
quality,
and
sirnply
iurn
down
the
volume
when
the
amplifier
is not
in
use.
The
power
switch
on
the rear
panel
should
only
be
used
when
disconnecting
the
unit
for
longer
periods.
