1
) +
Horizontal (H
2
)
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.

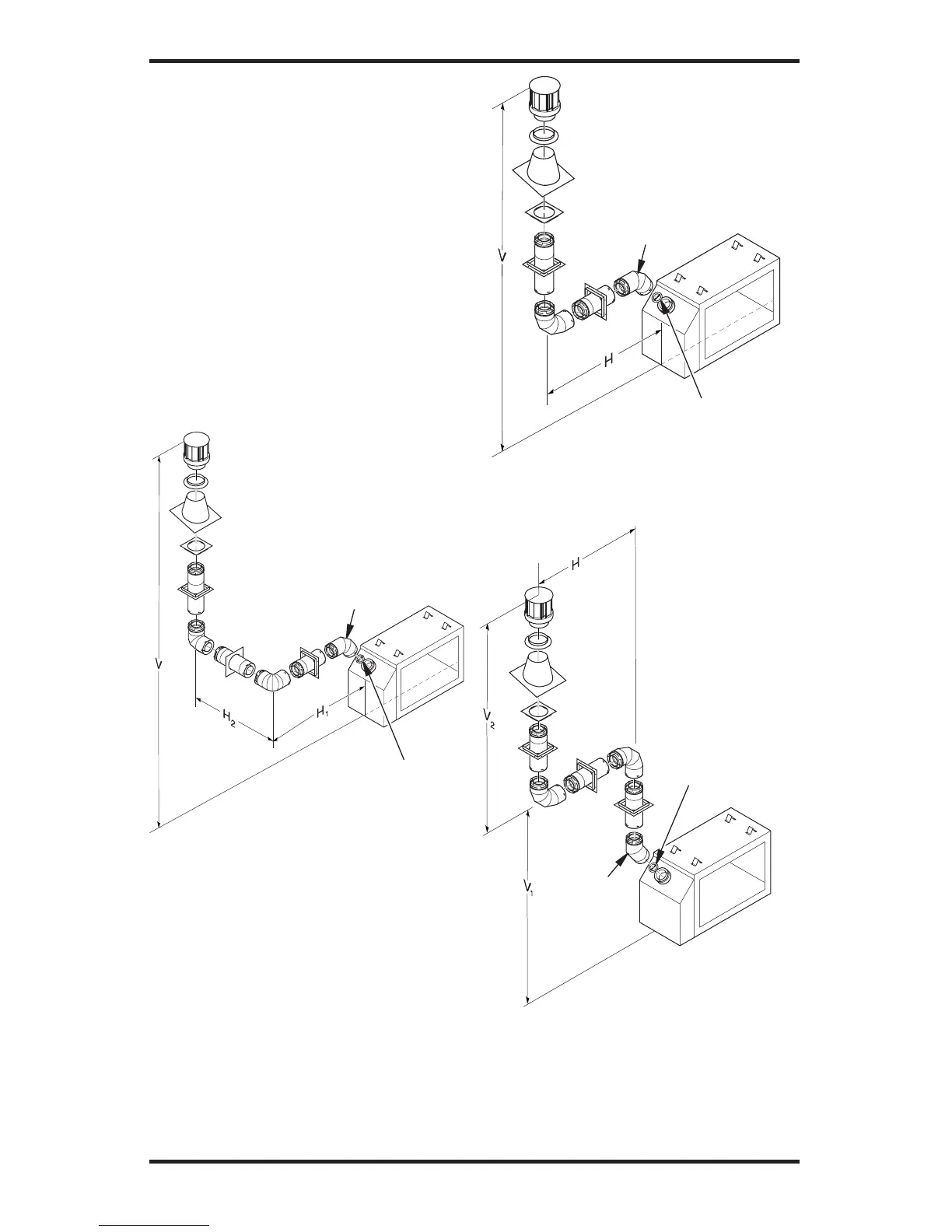

Figure 29 - Vertical Rigid Venting
Conguration Using Two 90° Elbows
with Two Horizontal Runs

Vertical (V) Horizontal (H)
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.
Figure 30 - Vertical Rigid Venting
Conguration Using One 90° Elbow


Vertical (V
1
) Horizontal (H)
5' min. 6' max.
6' min. 12' max.
7' min. 18' max.
8' min. 20' max.
Figure 31 - Vertical Rigid Venting
Conguration Using Two 90° Elbows
VENTING INSTALLATION
INSTRUCTIONS
Continued

Figures 29 through 32 show four different congu-
rations for vertical termination. These minimum
vertical rises are based on horizontal runs with a
minimum of 1/4" upwards pitch per foot ad do
not reect constraints on a vertical system with
45° or greater offset.
Any offset pitch of 45° or less must be considered
horizontal and sized within the maximum allow-
able lengths listed in the following examples. All
connections must be sealed with high temperature
silicone sealant as specied in the second warning
statement on page 11.
45° Starter Elbow
Note: Install restrictor
into inner collar of
replace as shown.
45° Starter Elbow
Note: Install restrictor
into inner collar of
replace as shown.
45° Starter
Elbow
Note: Install restrictor
into inner collar of
replace as shown.
