PRE-INSTALLATION
PREPARATION
Continued
39
3
/ 4 "
Min.
43
1
/4"
24"

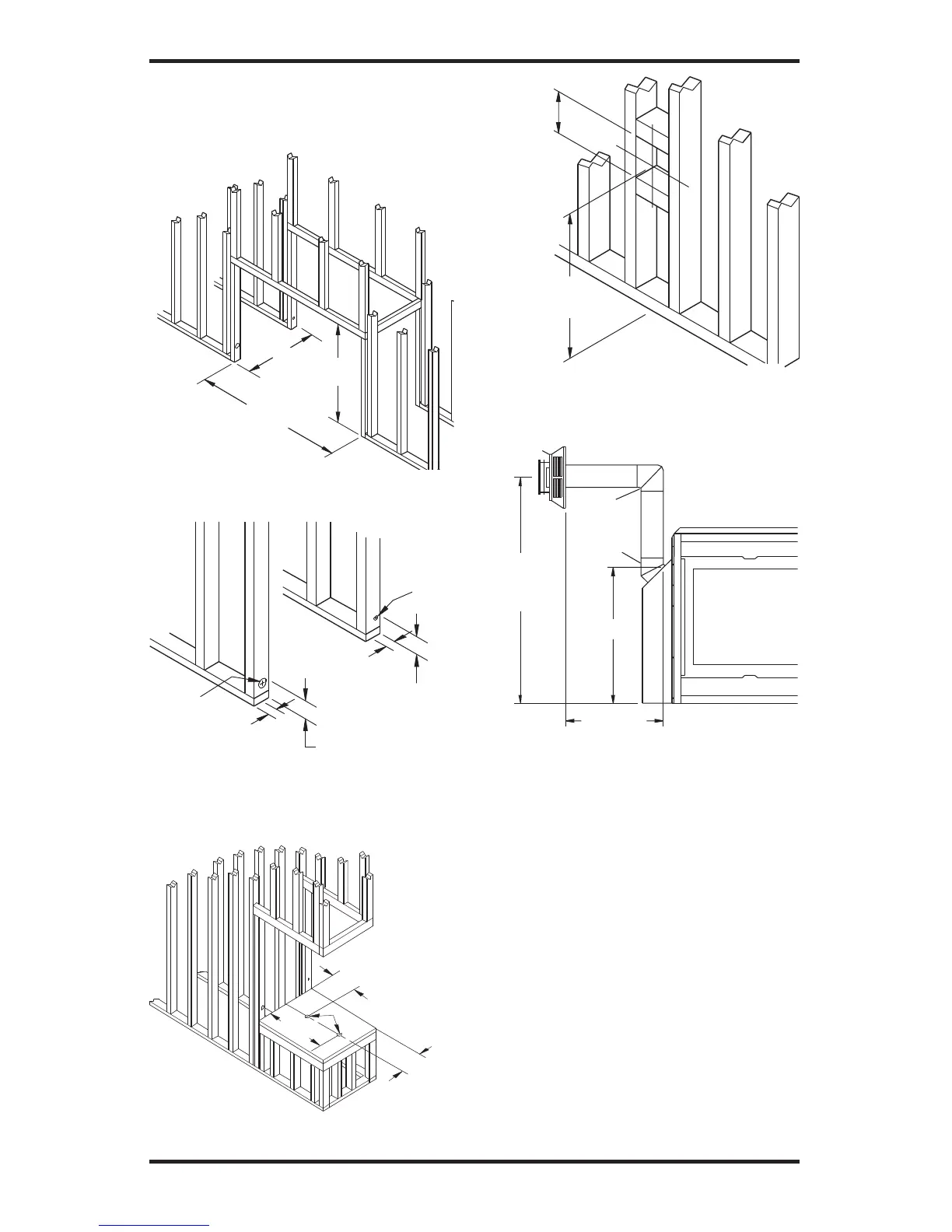

Figure 9 - Rough Opening for Installing
See-Thru Fireplace
3"
1" Dia. Hole
3"
2" Dia. Hole
1"
2"
Figure 10 - Hole Locations For Gas Line
and Electric Wires for Peninsula and
See-Thru Fireplaces
Height
Depends On
Installation
10"
Square Min.
Figure 12 - Rough Opening for Installing
Exterior Vent Terminal
Vertical
Height
Depends on
Installation
26
3
/ 8 "
Horizontal
Length Depends
on Installation
90
o
Elbow
45
o
Elbow
Figure 13 - Vent Opening Height
Figure 11 - Alternate Gas Supply
Location
