Blast chiller Service Manual
31
Rev 07/04/2015
Move the C-shaped bracket from the opposite side and attach with the screws but do not
tighten. Pay special attention to the positioning of the C-shaped bracket.
The correct angle of the square hole will allow proper loading of the hinge spring when the
door is closed, providing better sealing pressure on the gasket.
Turn the door over and fit the upper hinge.
Fit the bottom hinge pin into the square hole of the bracket.
Tighten the screws on both upper and lower hinges.
Test the door for proper operation and correct seal.
Replace the front panel.

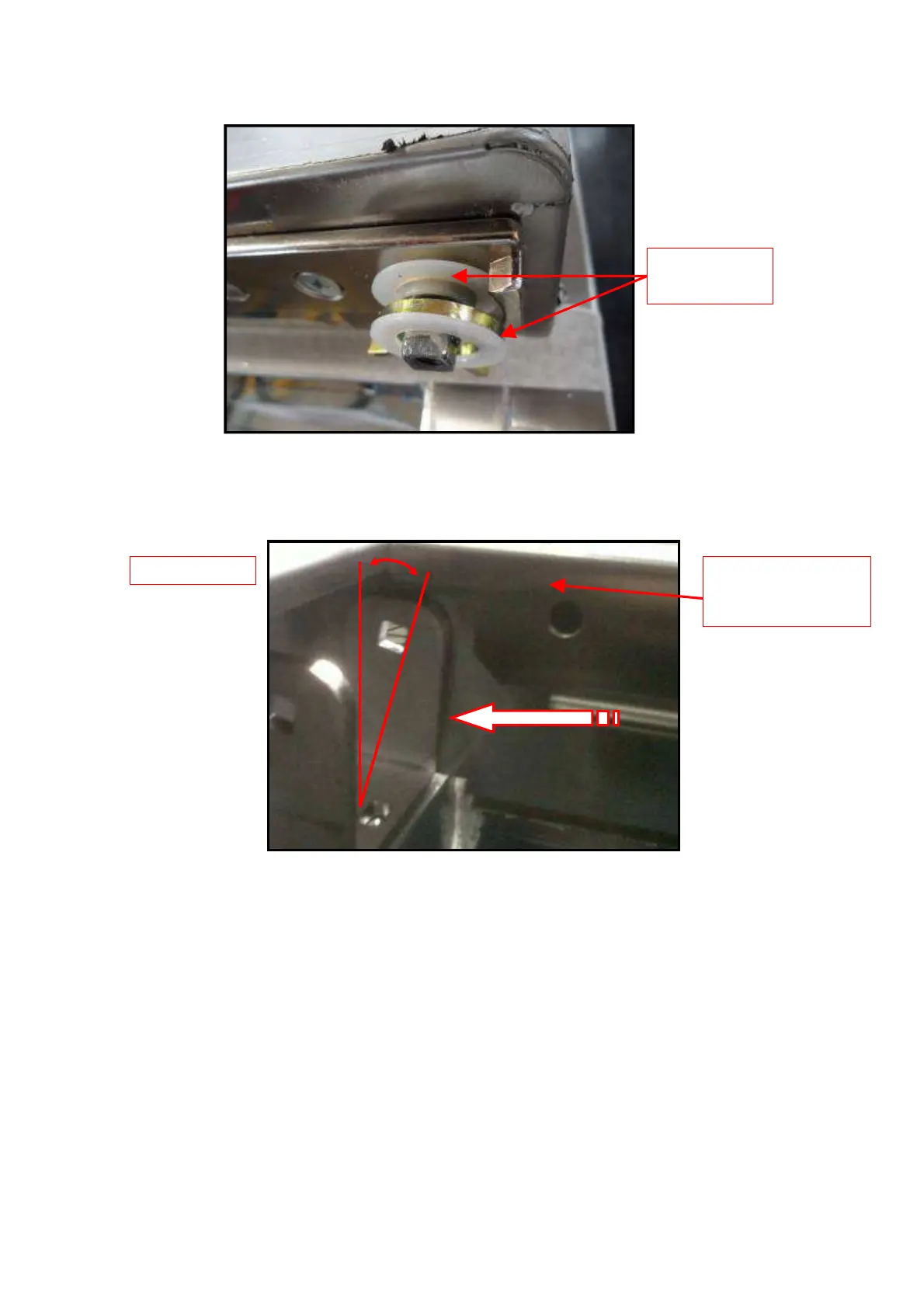

BUSHINGS
