Installation Guide
DeSoto/Regal Coaster Brake Kit # 12111
Check to make sure that you have all parts.
Parts Listing Qtv
1. 11066 Set Screws 2
2. 11667 TrikeCBHub 1
3. 11684 Rear Chain 1
4. 11939 Sprocket 21 Tooth Shimano 1
5. 11952 22 Tooth Solid Sprocket 1
6. 12170 Nut 10-32 Hex Keps 1
7. 12193 Screw 10-32x1 Phil Pan Hd MS 1
8. 12229 Washer #10 Flat 3
9. 12238 Hub Axle Spacers 3
10.12240 Rear Axle Spacers 7
11.16960 Dust Ring Shimano 1
12.16961 Snap Ring Shimano 1
13.18860 Solid Rear Wheel Pins 2
14. 19153 Nut Axle 2
15. Installation Instructions 2
NOTE:
DeSoto/ Regal Trikes w/ CB Hub Preinstalled in Frame
Proceed as follows:
'Skip over Kit Installation Preparation , Step 1 and Step 2.
Loosen hub axle nuts then proceed with Step 3 through Step 6.
Step I

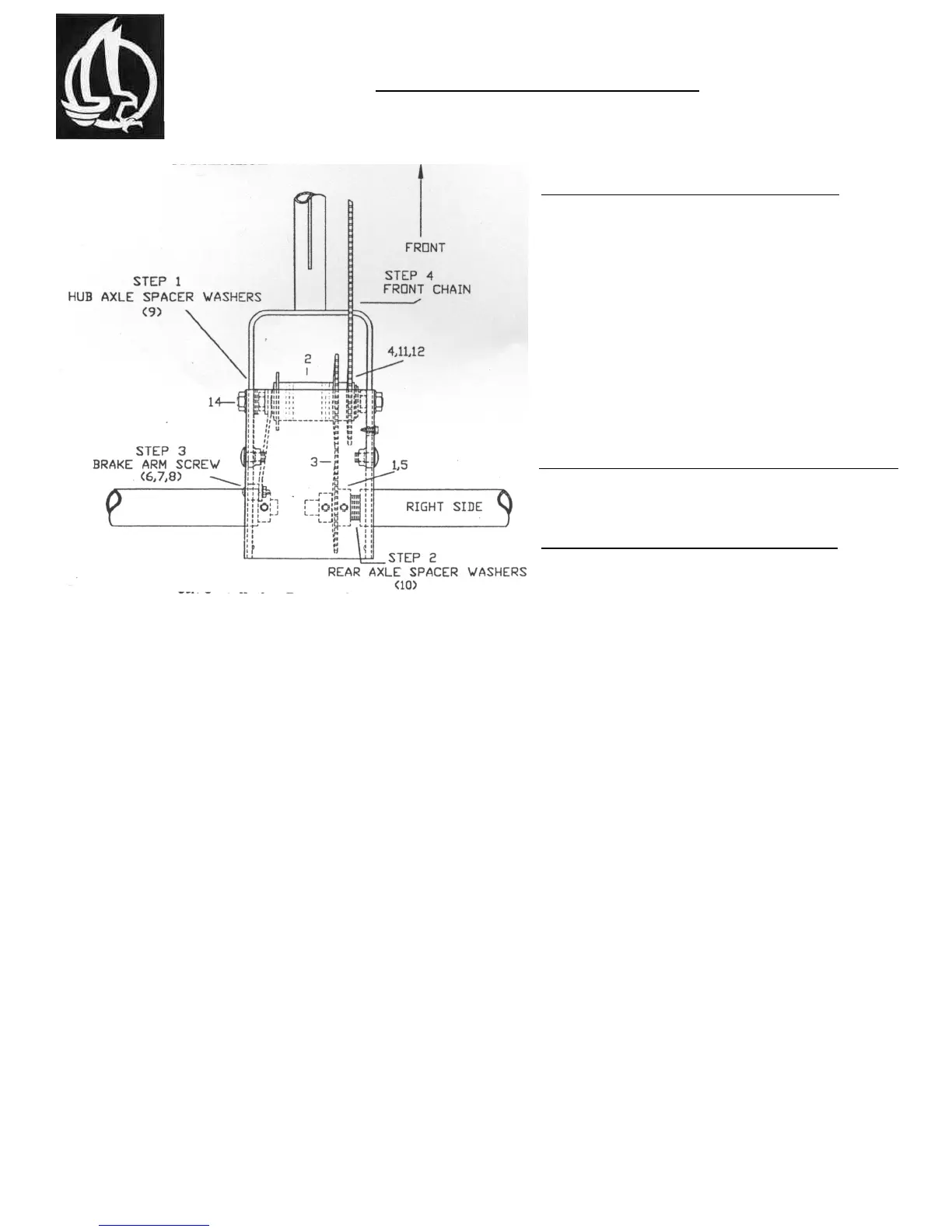

Locate three hub axle spacer washers (9) from parts bag and install them onto axle on the side which has the brake arm. Then insert
hub into the open-ended L slot which is in the flat bar on the back end of the front frame. Refer to drawing for the location of hub axle
spacer washers and correct hub position.
Step 2
Loosen set collar on right side rear axle and remove original freewheel assembly and square key. Freewheel will no longer be needed,
but save key which will be needed to lock solid sprocket to axle. Locate six rear axle spacer washers (10) from parts bag and install
on right rear axle next to bearing. Install 22 Tooth solid sprocket (5) onto axle with set screws (1) on the same side as the spacer
washers. Reinstall square key and set collar. Tighten all set screws in place. Check that there is no sideways movement of rear axle in
bearings. If any is found, loosen set screws and reposition set collar and sprocket until it is eliminated.
Step 3
Slide rear frame over front frame. Let the Coaster Brake Hub axle slip into open-ended slots in the front of the transmission box.
Keep brake arm above rear axle tube while sliding frame sections together. Insert screw (7) to secure brake arm through slot in the
transmission box. Install washers (8) to fill space between box and brake arm, and then install brake arm nut (6). Do not tighten until
after chain is adjusted. Loosely install two of the frame bolts into transmission box.
Step 4
Install shortened front chain onto crank sprocket and outside sprocket on brake hub. Install rear chain (3) provided in parts bag around
sprocket on hub and solid sprocket on rear axle. Slide frame assembly apart until chains are tight. Tighten the frame nuts first, and
then after checking to make sure the hub is straight in frame tighten the axle nuts on brake hub. Tighten the nut and screw on the
brake arm. Install chainguard, spreading rear opening of guard enough to clear chains.
#18168 1/98
