Desoutter CVI3 Vision Installation And Upgrades

- 18 - 6159924330 - 08/2020

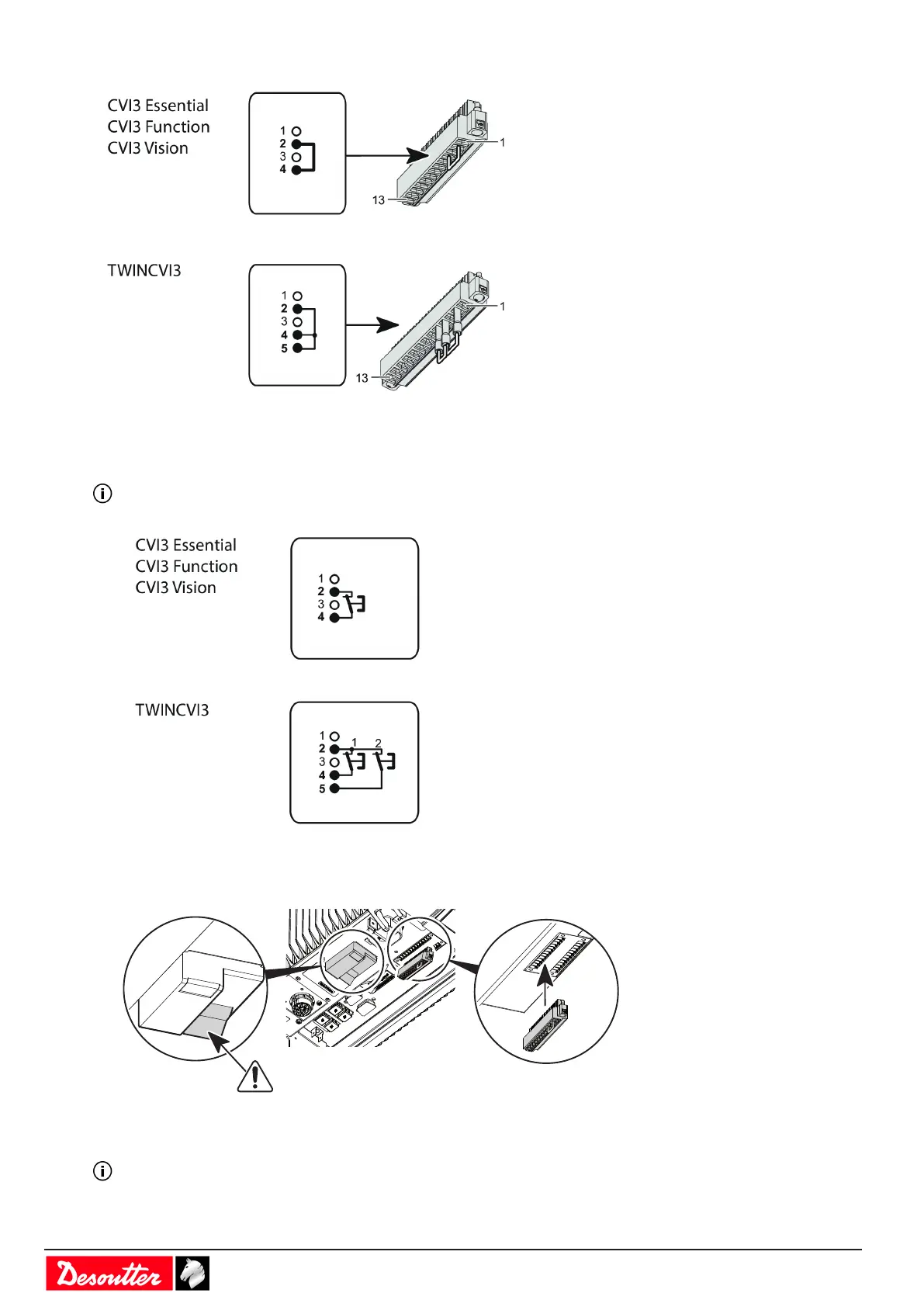

If you require a quick-stop system, replace the existing shunt by the quick-stop wiring as shown below.
Before removing the I/O connectors, switch off the GFI blue interruptor located on the bottom panel.
Place the I/O connectors back in the controller as shown below.
OFF
eSTOP controllers cables
Always make sure to use the cables supplied with the controller.

Desoutter CVI3 Vision Specifications

General

Brand	Desoutter
Model	CVI3 Vision
Category	Controller
Language	English
