Desoutter CVI3 Vision Installation And Upgrades

6159924330 - 08/2020 - 35 -
13 2 holders for DIN rail + 4 screws x 1
14 Screw M4x10 x 2
15 Mounting plate x2

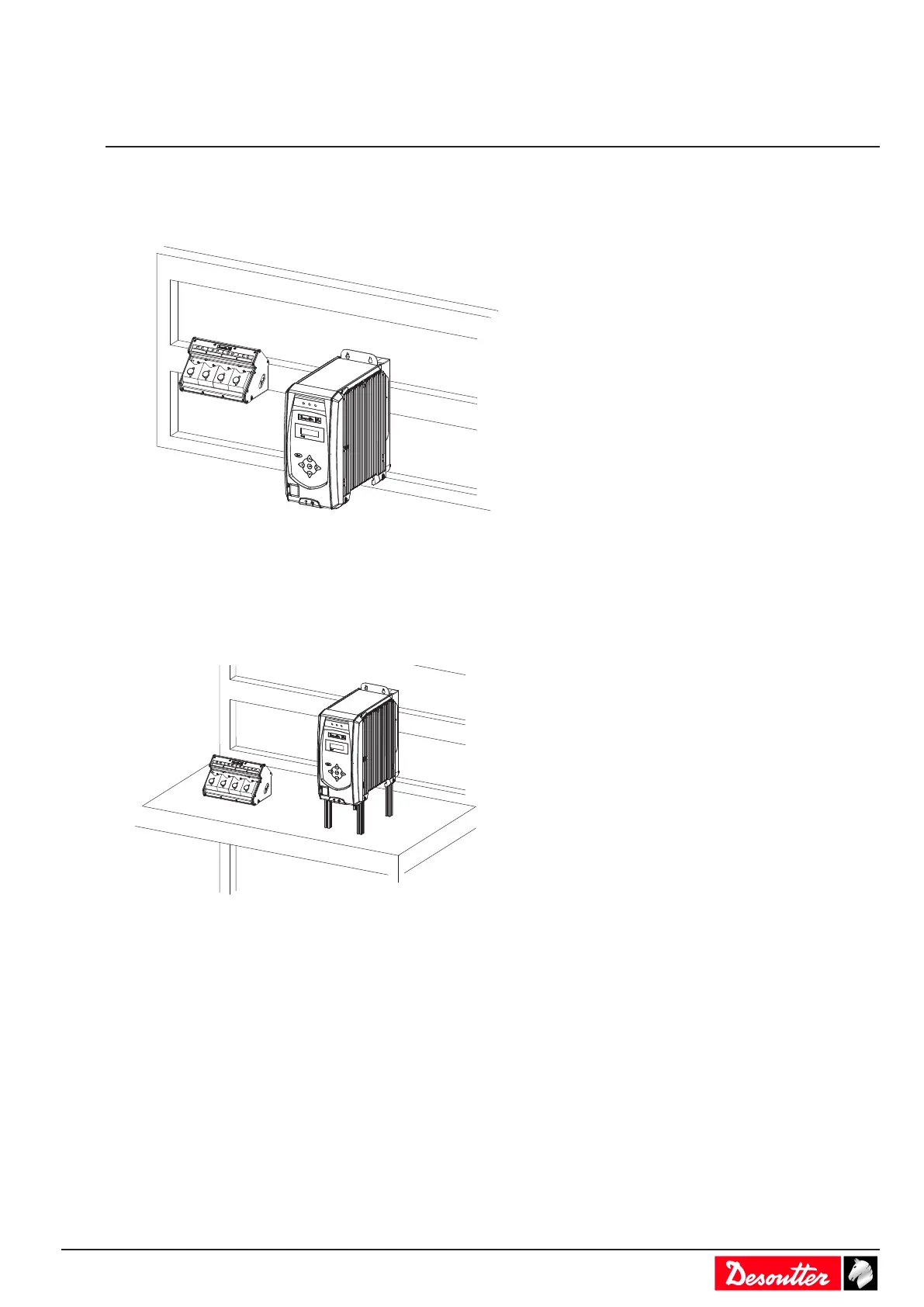

Wall mounting
Any eBUS accessory can be mounted on a wall.
See example below.
For details, refer to the dimensional drawings.
Secure the accessory by using M6 screws (not supplied).
Table mounting
Socket trays and bit trays can be mounted on a table.
For example.
For details, refer to the dimensional drawings.
Secure the accessory by using M6 screws (not supplied).
Mounting on DIN rail
Stacklight, operator panel, IO expander
These accessories are designed to be mounted on an Ω-type DIN rail.
DIN rail TS 35
Length: 115 mm minimum.
For details, refer to the dimensional drawings.
1. First position the 2 holders on the accessory as shown below by using the self tapping screws supplied in the
kit.
2. Clip the accessory on the rail.
For example
