Desoutter CVI3 Vision Installation And Upgrades

- 38 - 6159924330 - 08/2020
M10
M12
M14
M16
M18
0.35 Nm
Pawn Ø ≤ socket M size Ø.

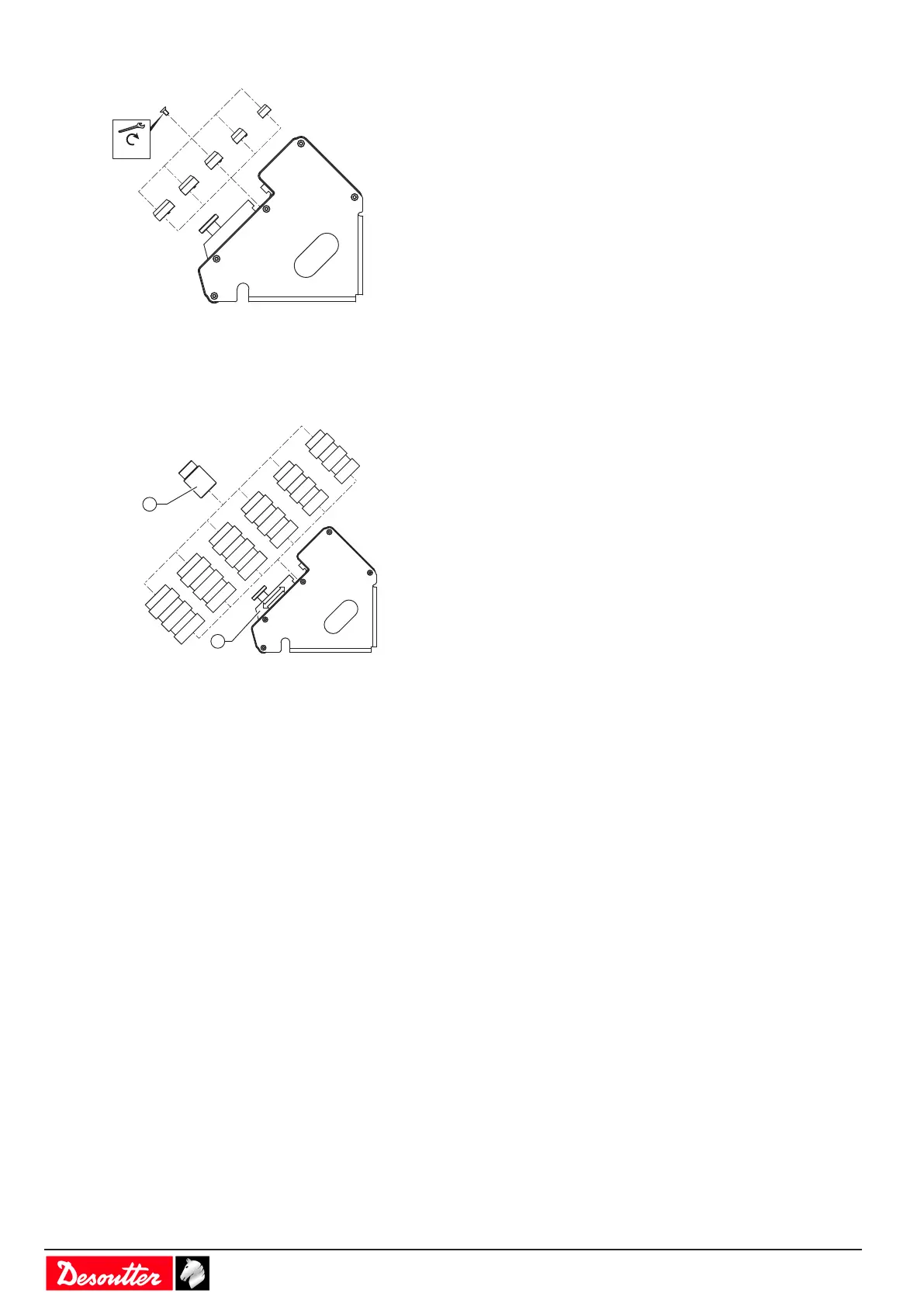

Select the pawn and secure it by using the screw mounted on the socket tray.
External guiding
T1
T2
T3
T4
T5
T6
2
1
Socket outer Ø ≤ tube Ø.
Tube no. Tube inner Ø (mm)
T1 15
T2 21
T3 24
T4 25
T5 27
T6 30
If the socket is too short, cut the tubes.
If the socket is too long, screw two or more similar tubes together as shown below.
