Desoutter CVI3 Vision User Manual

Appendix - Fieldbus_01/2016 - 69 -

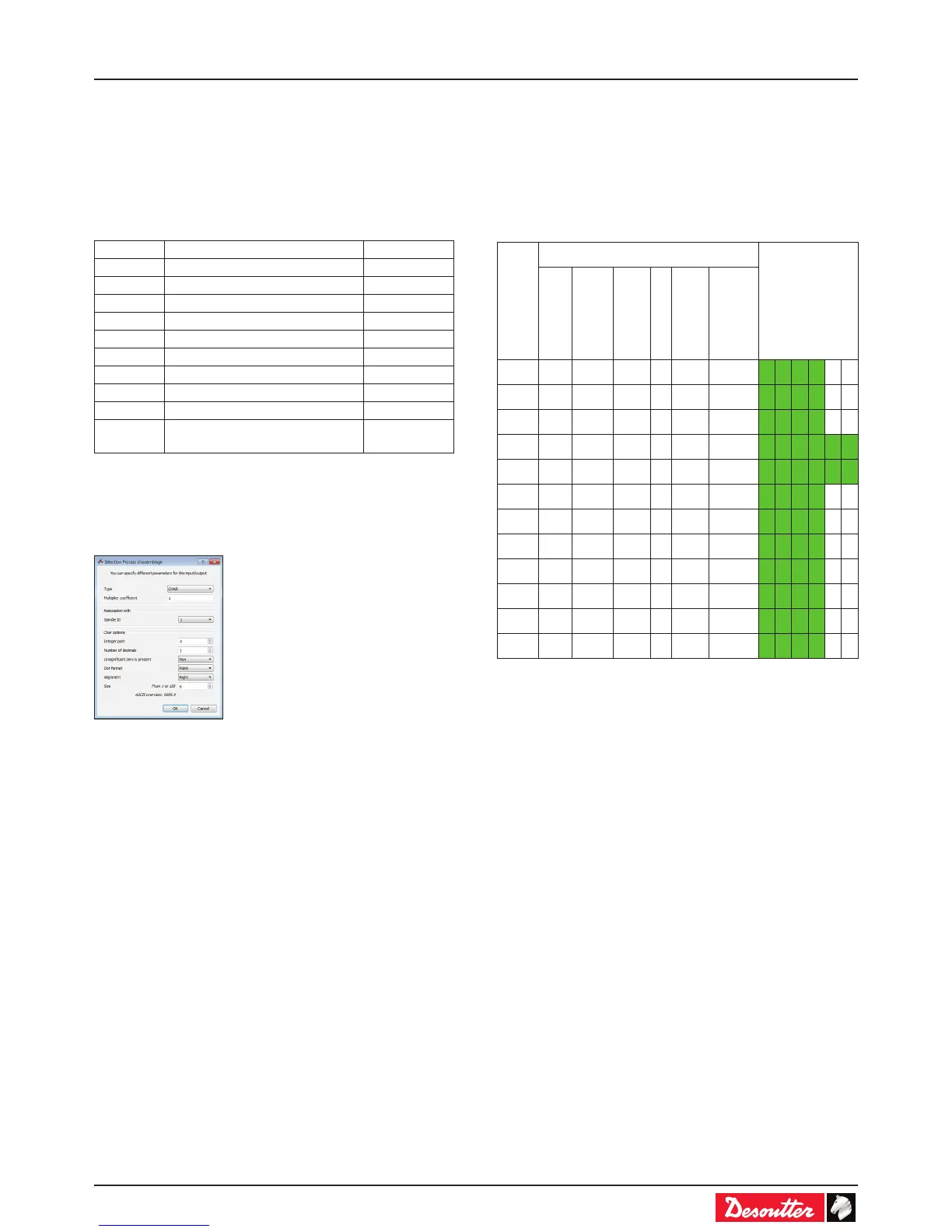

APPENDIX - FIELDBUS
1 - DATA MAPPING TYPES AND
VARIABLES
1.1 - Data type
• Choose the type of the data representation in memory:
Format Description Size (bytes)
Float Floating point (IEE754) 4
Char ASCII string 1..128
Uint32 Unsigned 32 bits 4
Uint16 Unsigned 16 bits 2
Uint8 Unsigned 8 bits 1
Sint32 Signed 32 bits 4
Sint16 Signed 16 bits 2
Sint8 Signed 8 bits 1
Bool Boolean 1
INT16
DEC16
Integer part on 16 bits + decimal
part on 16 bits.
4
1.2 - Char (ASCII string)
If you choose "Char", extra parameters are necessary to set
the ASCII string:
The "Size" is automatically computed. However, you can put
a value to truncate value in memory.
1.3 - Alignment
The oating point and integer values are rst converted
into a chain of characters and then aligned according to the
selected option within the total size of the eld.
Examples (green background denoting effective eld
length)
CVI3
value
Conguration
Data in PLC
memory
Integer part Dot format Number of decimals Size Insignicant zero Alignment
4 4 No 0 4 No Right 4
4 4 No 0 4 No Center 4
4 4 No 0 4 No Left 4
4 2 Point 1 6 No Right 4 . 0
4 2 Point 1 6 No Center 4 . 0
4 2 Point 1 6 No Left 4 . 0
4 4 No 0 4 Yes Right 0 0 0 4
4 4 No 0 4 Yes Center 0 0 0 4
4 4 No 0 4 Yes Left 0 0 0 4
4 2 No 0 4 Yes Right 0 4
4 2 No 0 4 Yes Center 0 4
4 2 No 0 4 Yes Left 0 4
• Note that in case of centering if the resulting string of
characters cannot be centered perfectly, more spaces are
added on the left side of the string.
