4
1
2
3
4
5
6
7
8

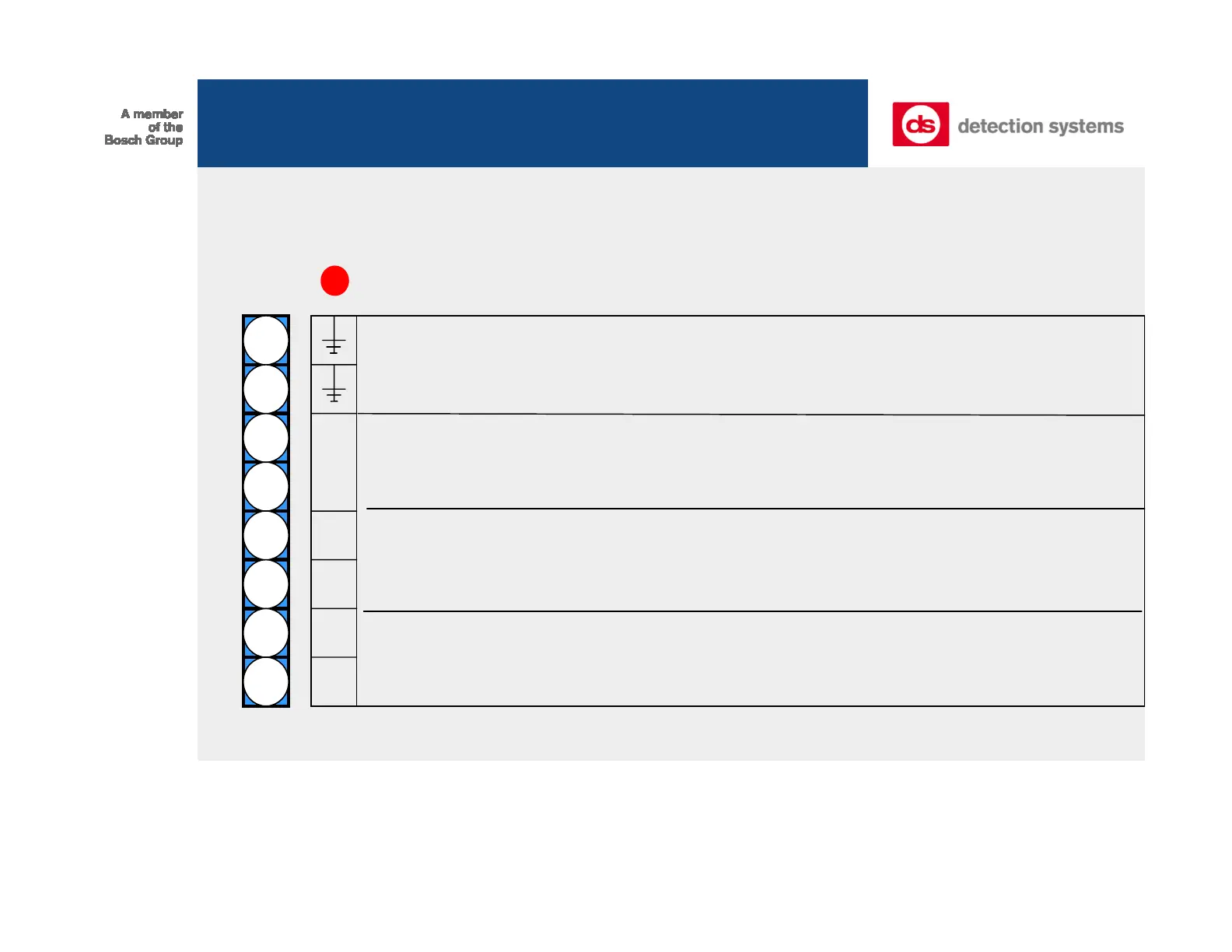

EARTH GROUND
: Must be connected to a good earth ground
such as a cold water pipe and also connected to the cabinet
cover using the supplied wire jumper.
A/C INPUT: Use U.L. listed, 18 VAC 50 VA, class 2
transformer. Model TR-1850 requires 50/60 Hz. unswitched
dedicated outlet. Do not share.
ALARM OUTPUT: Provides 12 VDC, special application, up to
1.75A for powering bells, sirens drivers, etc.
Function programmed in address 0146
AUXILIARY POWER: Provides 12 VDC, special application,
up to 1.0A for powering detectors.
A
C
_
A
_
+
A/C Power Indication LED
DS7400Xi Panel Wiring & Programming
