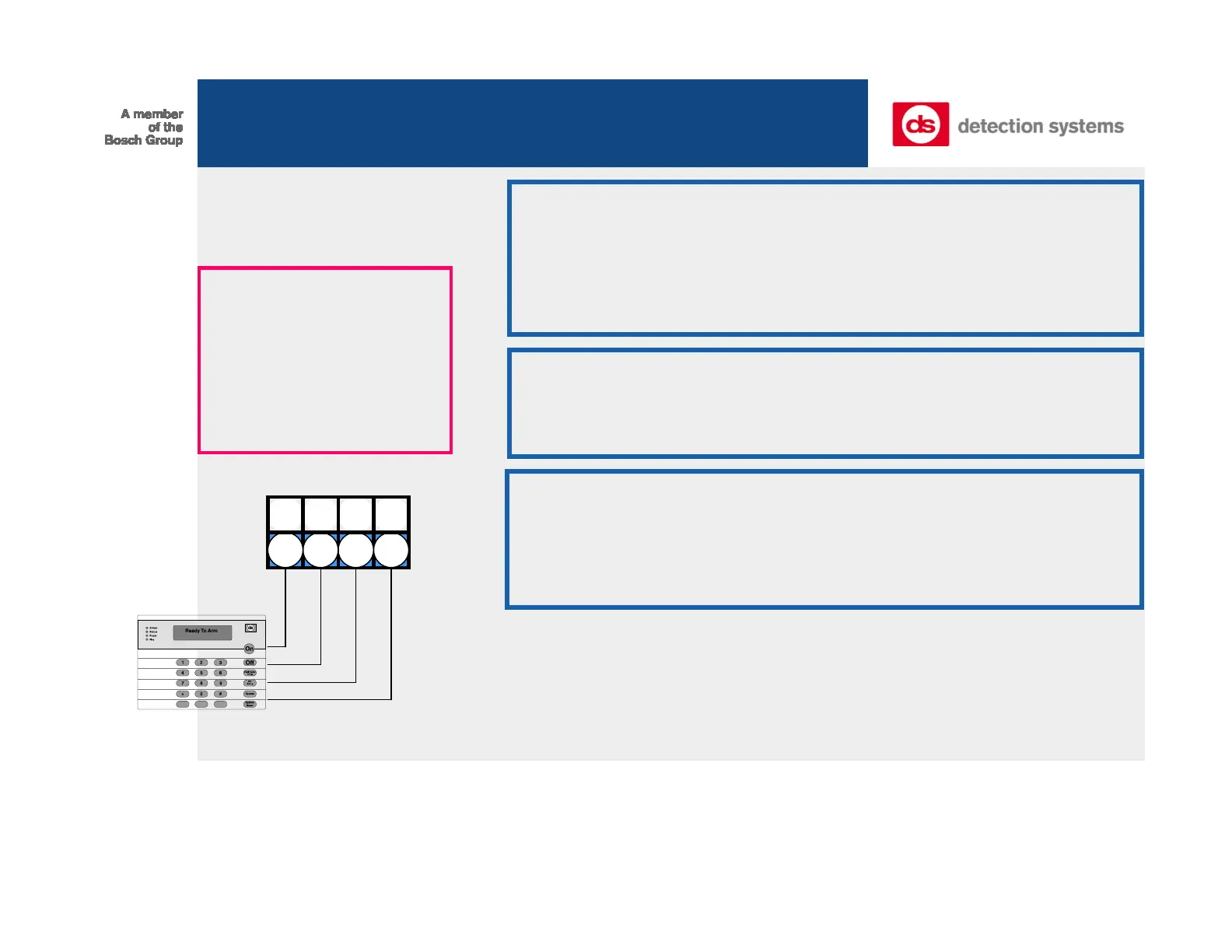

KEYPAD BUS*:
Up to 15 keypads**
may be used.
Can be “home-run”
or “daisy-chained.”
Keypads #1 - 10
* = Maximum wire length each: 1000 ft. (305 m).
Max. wire length total in system: 6000 ft. (1830 m)
when using #22 AWG (.8mm) or #18 AWG (1.0mm)
cable.
** = Keypads #1 - 10 connect to the Keypad Bus.
Keypads #11 - 15 connect to the Options Bus.
Shared cable is not recommended for keypad
bus, multiplex bus, options bus, telephone, or
siren wiring.
DS7400Xi Panel Wiring & Programming
