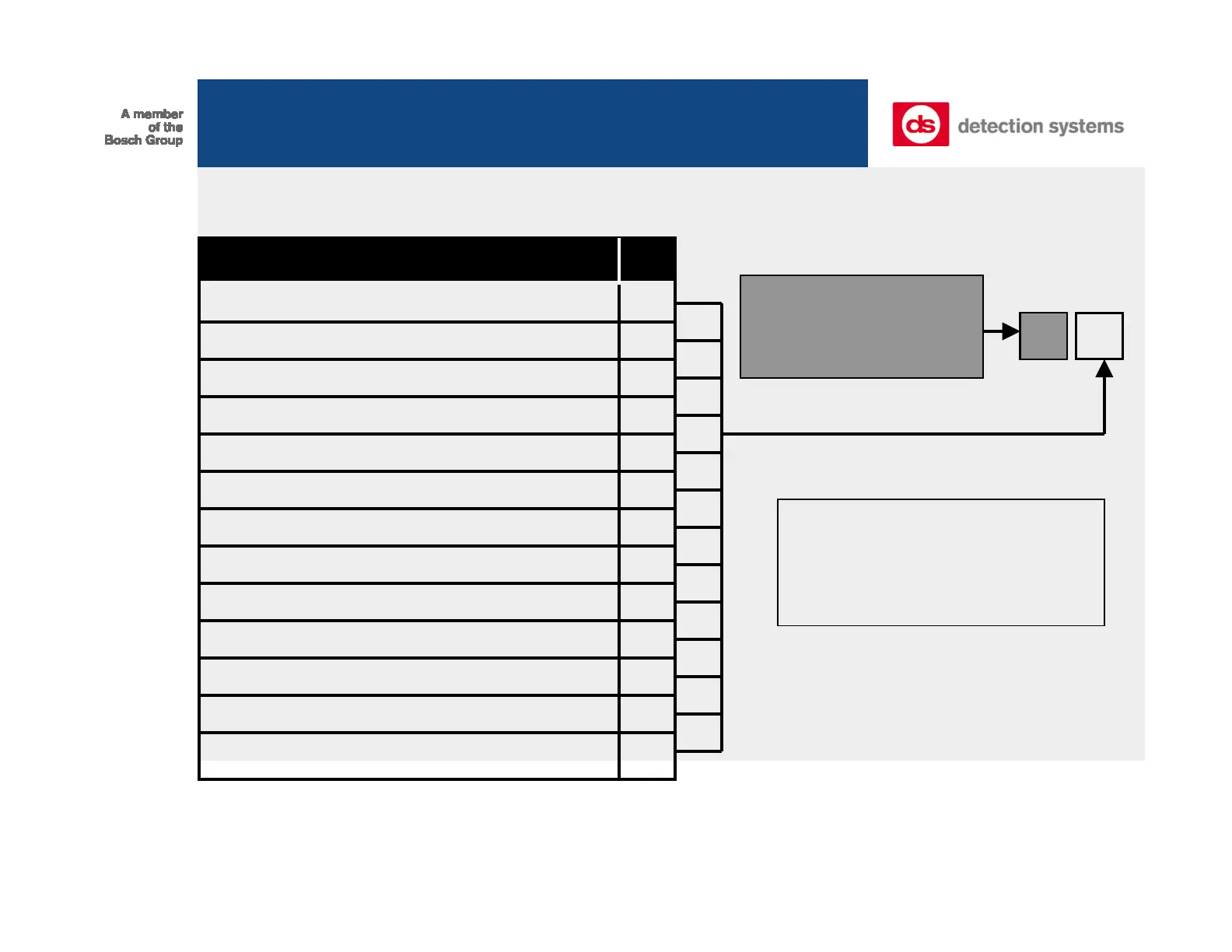

Octal Relay Module Output Programming
DS7400Xi Panel Wiring & Programming
Data Digit
1 2
Select Option DD
Disabled
AC Power Fail
Low Battery
Communication Failure
Any System Fault
Keypad Supervision Fault
Multiplex Bus Fault
Aux Power Fault
Fire Zone Trouble
Supervisory
Zone Trouble
6
1
0
2
3
4
5
7
8
9
*1
*2
*3
*2
*2 = Follow System
……..Wide Events
Duress
Battery Test
*
0 -
*
3 are Hex values.
They will display as A-D
at keypads.
