DEVA HANDY-8E - Page 10

Fig.
17

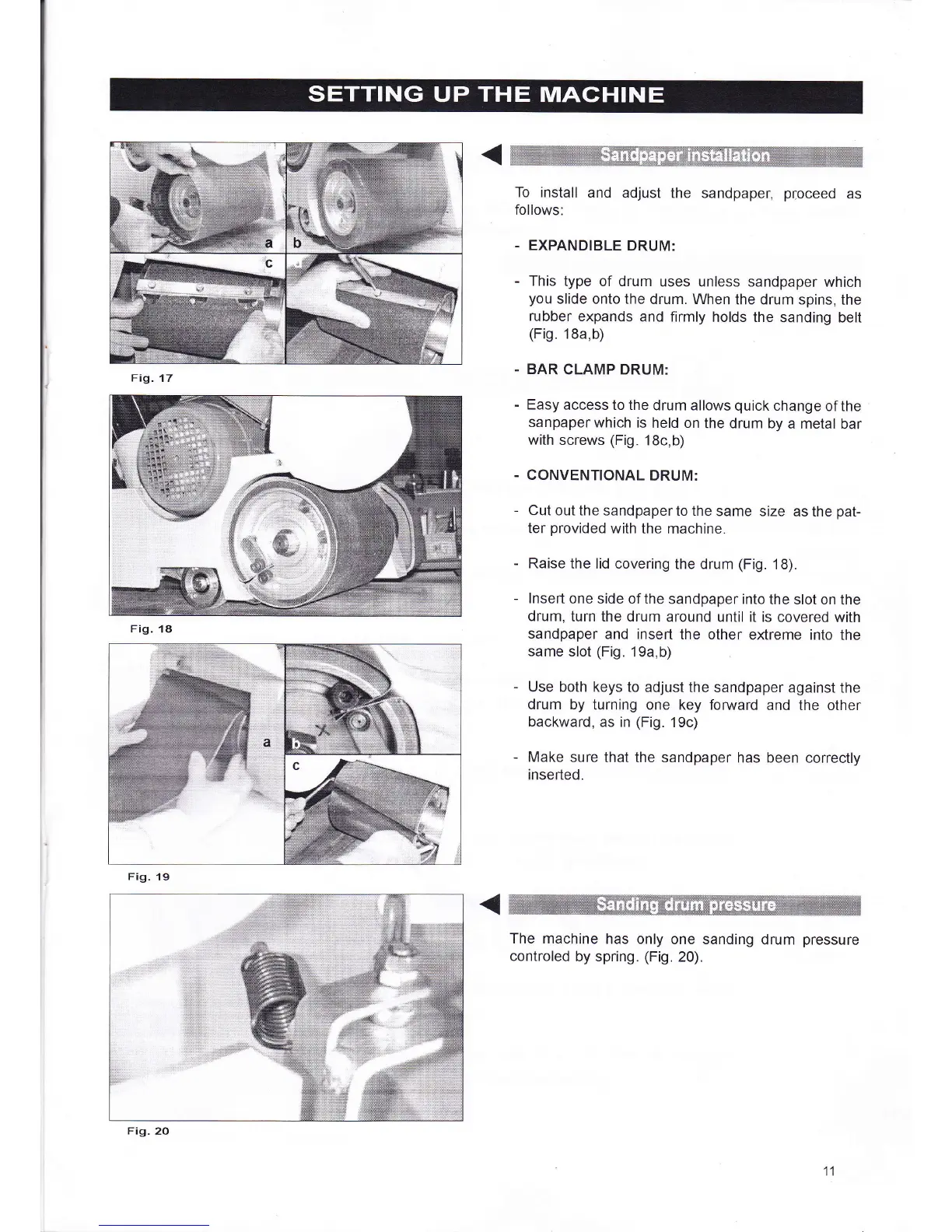

To install
and adjust
the
sandpaper,
proceed
as
follows:
EXPANDIBLE
DRUM:
This
type of drum
uses unless
sandpaper which
you
slide onto the
drum. When
the drum spins,
the
rubber
expands
and firmly
holds the
sanding belt
(Fig.
18a,b)
BAR
CLAMP DRUM:
Easy
access to the
drum allows
quick
change
of the
sanpaper
which
is held on
the drum by
a metal
bar
with
screws
(Fig.
18c,b)
CONVENTIONAL
DRUM:
Cut out the
sandpaper to the
same size
as the
pat-
ter
provided
with the
machine.
Raise
the lid covering
the drum
(Fig.
18).
lnsert one
side of the
sandpaper into
the slot on
the
drum,
turn the drum
around until it
is covered
with
sandpaper
and insert
the other
extreme
into the
same
slot
(Fig.
19a,b)
Use both
keys to adjust the
sandpaper
against the
drum by
turning one key
fonryard and
the other
backward,
as in
(Fig.
19c)
Make sure
that the sandpaper
has been correctly
inserted.
The machine
has
controled
by spring
only
one sanding
drum
pressure
.
(Fig.
20).
11
Fig. 1a
Fig.
19
Fig.
2O
