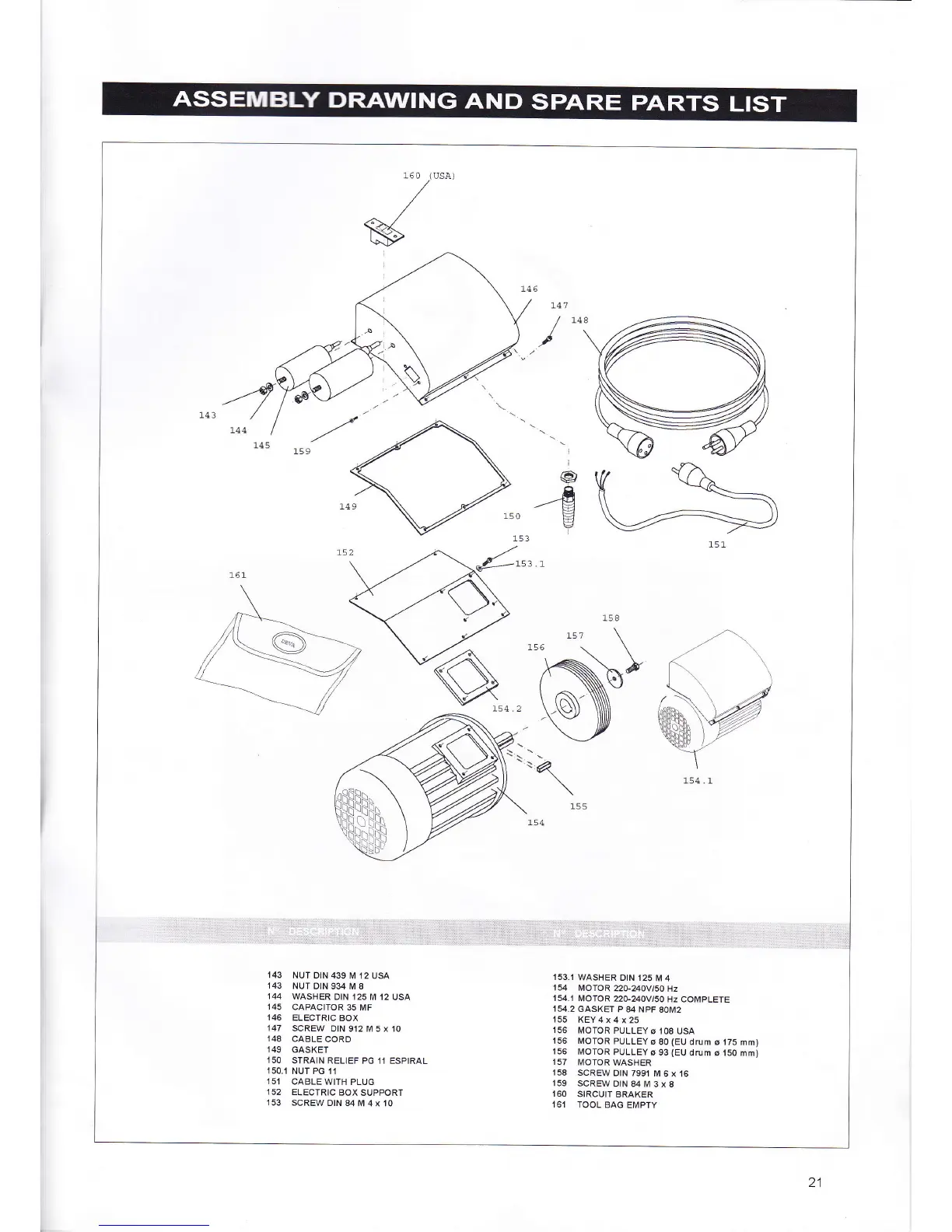

DEVA HANDY-8E - Page 20

/
s
-'r
143
/
L44
L4B
158
L54.2
154.1
,I43
NUT DIN
439 M 12 USA
143
NUT
DIN 934
M 8
144
WASHER
DIN 125
IlI 12 USA
145
CAPACITOR
35
MF
,I46
ELECTRIC
BOX
147
SCREW
DtN 912 M 5 x 10
148
CABLECORD
149 GASKET
150
STRAIN
RELIEF PG 1,I ESPIRAL
150.1
NUT PG
11
151
CABLE
WITH PLUG
152
ELECTRIC
BOX
SUPPORT
153 SCREWDtN84M4x10
153.1
WASHER
DIN 125 M 4
154
MOTOR
2O-24OV|5OHz
154.1
MOTOR
2V24OV|5O
Hz coMpLETE
154.2
GASKET
P 84 NPF
8OM2
'155
KEY4x4x25
156
MOTOR PULLEY
6
108 USA
156
MOTOR PULLEY
u 80
(EU
drum
d 175
mm)
156
MOTOR
PULLEYd
93
(EU
drum 6
150 mm)
157
MOTORWASHER
158
SCREW
DIN 7991
M
6 x 16
159
SCREWDlNS4M3xS
,I60
SIRCUIT BRAKER
16'I
TOOL BAG EIVIPTY
L57
\
156\\
N'
155
154
21
