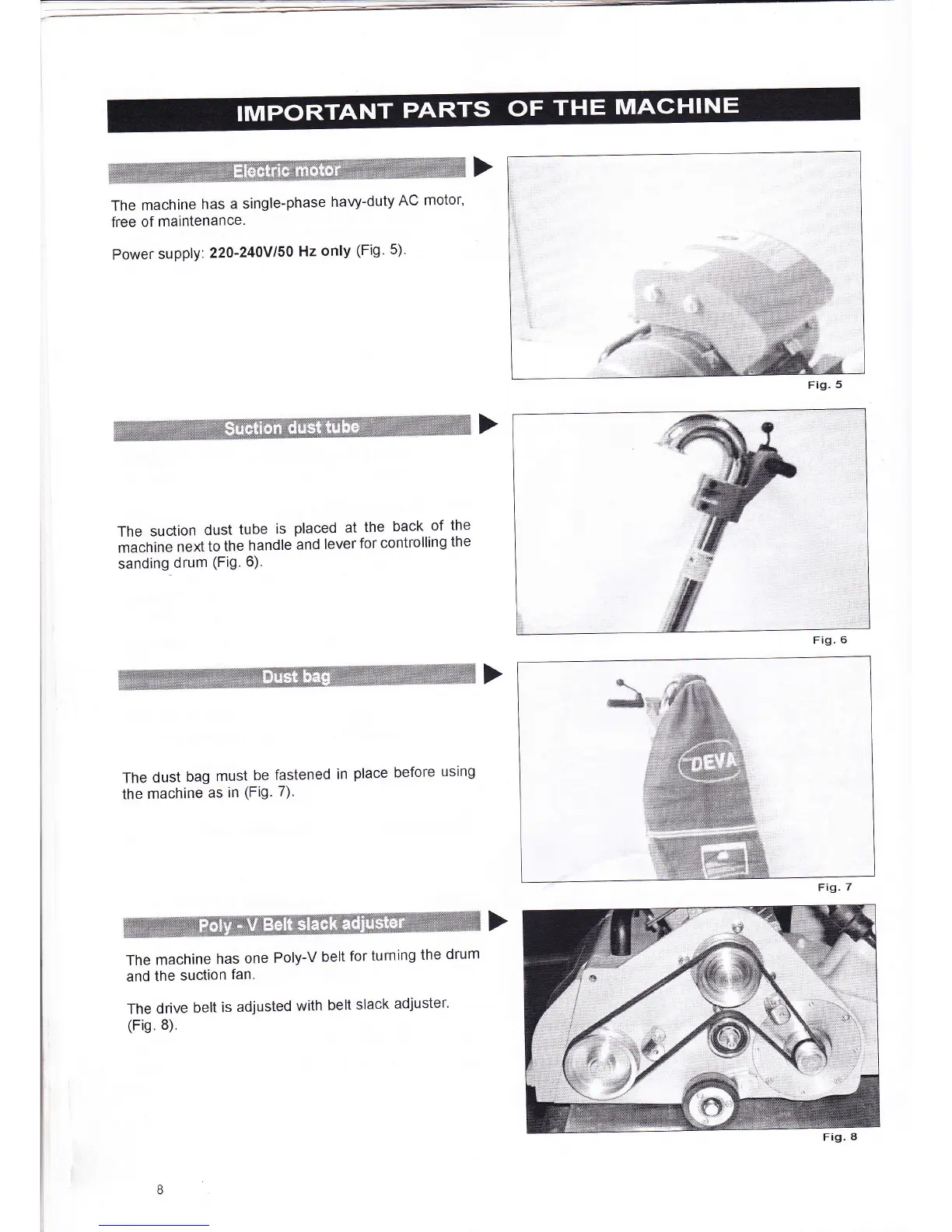

The
machine
has
a single-phase
havy-duty
AC
motor'
free
of maintenance.
Power
supply:
220-240V150
Hz
only
(Fig' 5)'
The
suctron
dust
tube
is
placed at
the
back
of
the
macfrine
next
to
the
handle
and
lever
for
controlling
the
sanding
drum
(Fig. 6).
The
dust
bag
must
be
fastened
in
place before
using
the
machine
as
in
(Fig.
7).
The
machine
has
one
Poly-V
belt
for
turning
the
drum
and
the
suction
fan.
The
drive
belt
is
adjusted
with
belt
slack
adjuster'
(Fis. 8).
Fig.
5
Fig.7
Fig.
6
