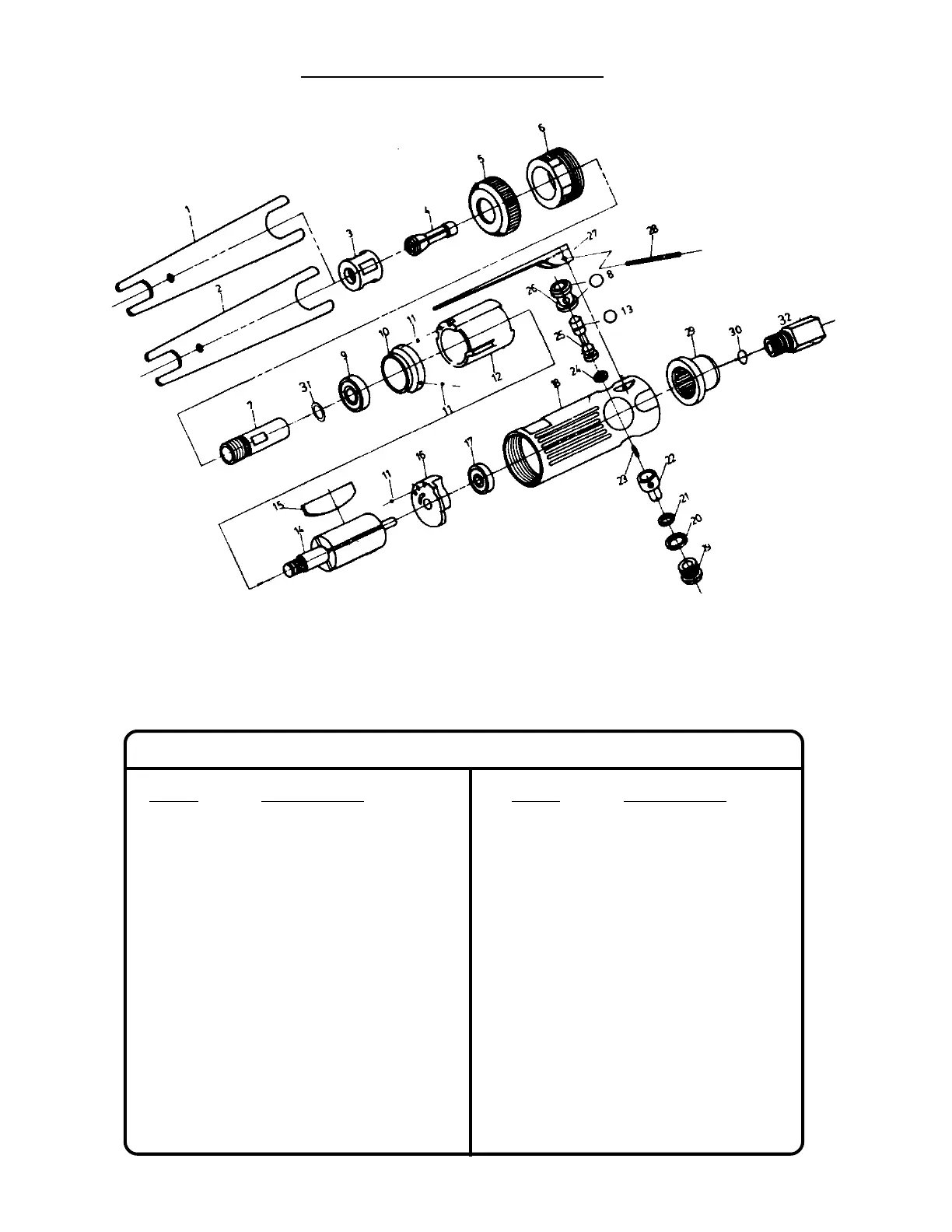

EXPLODED PARTS VIEW
SERVICE PARTS ARE NOT AVAILABLE FOR THIS ITEM
Key # Description
1 Double Ended Spanner
2 Double Ended Spanner
3 Collet Nut
4 Collet
5 Housing Cap
6 Retainer
7 Spindle
8 O-Ring
9 Ball Bearing
10 Front End Plate
11 Ball (3 ea)
12 Cylinder
13 O-Ring
14 Rotor
15 Rotor Blades
16 Rear Plate
Key # Description
17 Ball Bearing
18 Motor Housing
19 Valve Screw
20 O-Ring
21 O-Ring
22 Air Regulator
23 Spring
24 O-Ring
25 Throttle Valve
26 Valve
27 Safety Throttle Lever
28 Throttle Lever Pin
29 Exhaust Deflector
30 O-Ring
31 Washer
32 Inlet Bushing
