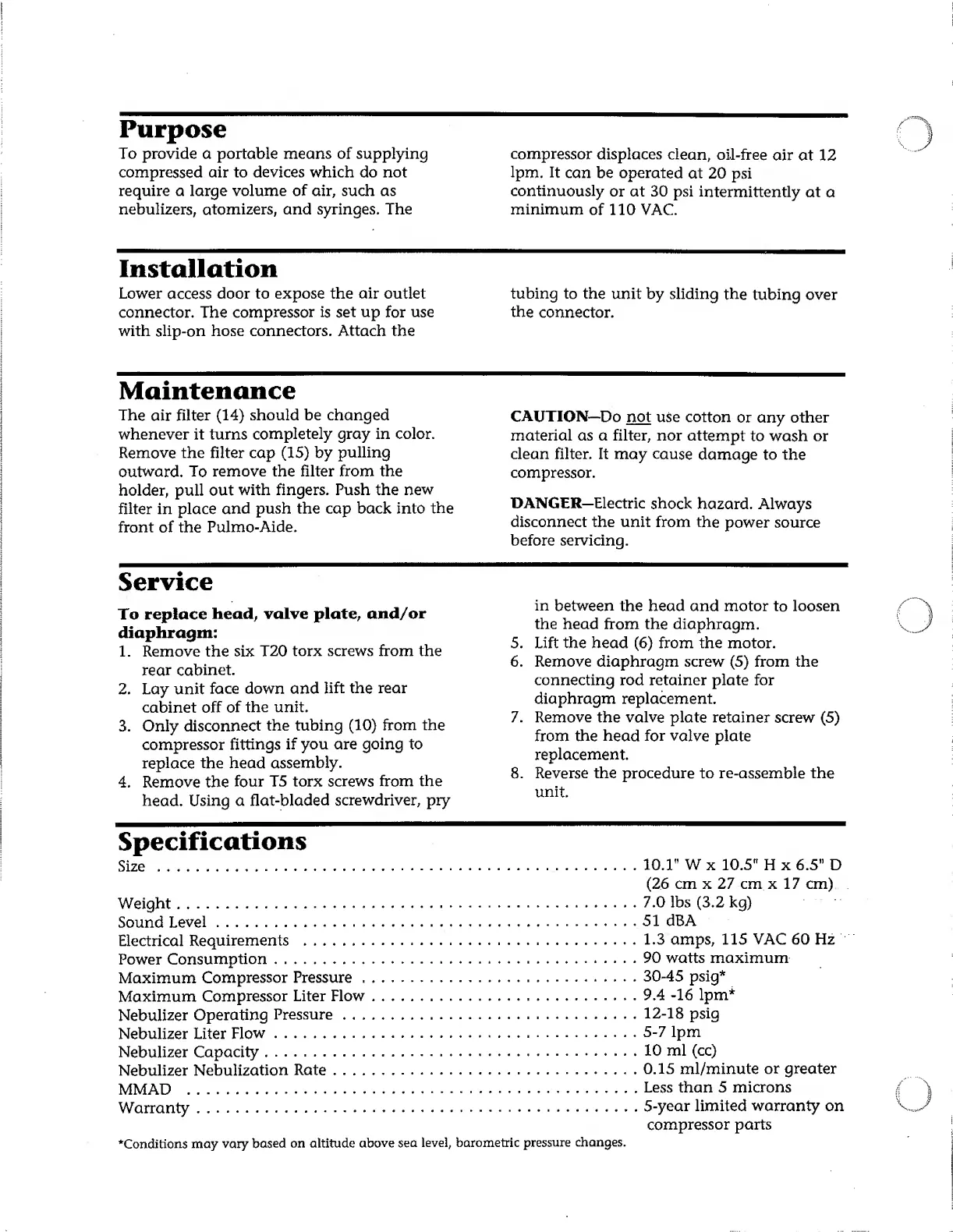

Purpose
To provide a portable means of supplying
compressed air to devices which do not
require a large volume of air, such as
nebulizers, atomizers, and syringes. The
compressor displaces clean, oil-free air at 12
1pm. It can be operated at 20 psi
continuously or at 30 psi intermittently at a
minimum of 110 VAC.
Installation
Lower access door to expose the air outlet
connector. The compressor is set up for use
with slip-on hose connectors. Attach the
tubing to the unit by sliding the tubing over
the connector.
Maintenance
The air filter (14) should be changed
whenever it turns completely gray in color.
Remove the filter cap (15) by pulling
outward. To remove the filter from the
holder, pull out with fingers. Push the new
filter in place and push the cap back into the
front of the Pulmo-Aide.
CAUTION— Do not use cotton or any other
material as a filter, nor attempt to wash or
clean filter. It may cause damage to the
compressor.
DANGER— Electric shock hazard. Always
disconnect the unit from the power source
before servicing.
Service
To replace head, valve plate, and/or
diaphragm:
1. Remove the six T20 torx screws from the
rear cabinet.
2. Lay unit face down and lift the rear
cabinet off of the unit.
3. Only disconnect the tubing (10) from the
compressor fittings if you are going to
replace the head assembly.
4. Remove the four T5 torx screws from the
head. Using a flat-bladed screwdriver, pry
in between the head and motor to loosen
the head from the diaphragm.
5. Lift the head (6) from the motor.
6. Remove diaphragm screw (5) from the
connecting rod retainer plate for
diaphragm replacement.
7. Remove the valve plate retainer screw (5)
from the head for valve plate
replacement.
8. Reverse the procedure to re-assemble the
unit.
Specifications
Size ..10.1” W x 10.5" H x 6.5" D
Weight.
Sound Level.
Electrical Requirements .
Power Consumption.
Maximum Compressor Pressure .
Maximum Compressor Liter Flow
Nebulizer Operating Pressure . . .
Nebulizer Liter Flow.
Nebulizer Capacity . . ..
Nebulizer Nebulization Rate
MMAD .
Warranty.
(26 cm x 27 cm x 17 cm)
7.0 lbs (3.2 kg)
51 dBA
1.3 amps, 115 VAC 60 Hz
90 watts maximum
30-45 psig*
9.4 -16 1pm*
12-18 psig
5-7 1pm
10 ml (cc)
0.15 ml/minute or greater
Less than 5 microns
5-year limited warranty on
compressor parts
Conditions may vary based on altitude above sea level, barometric pressure changes.
