English
7

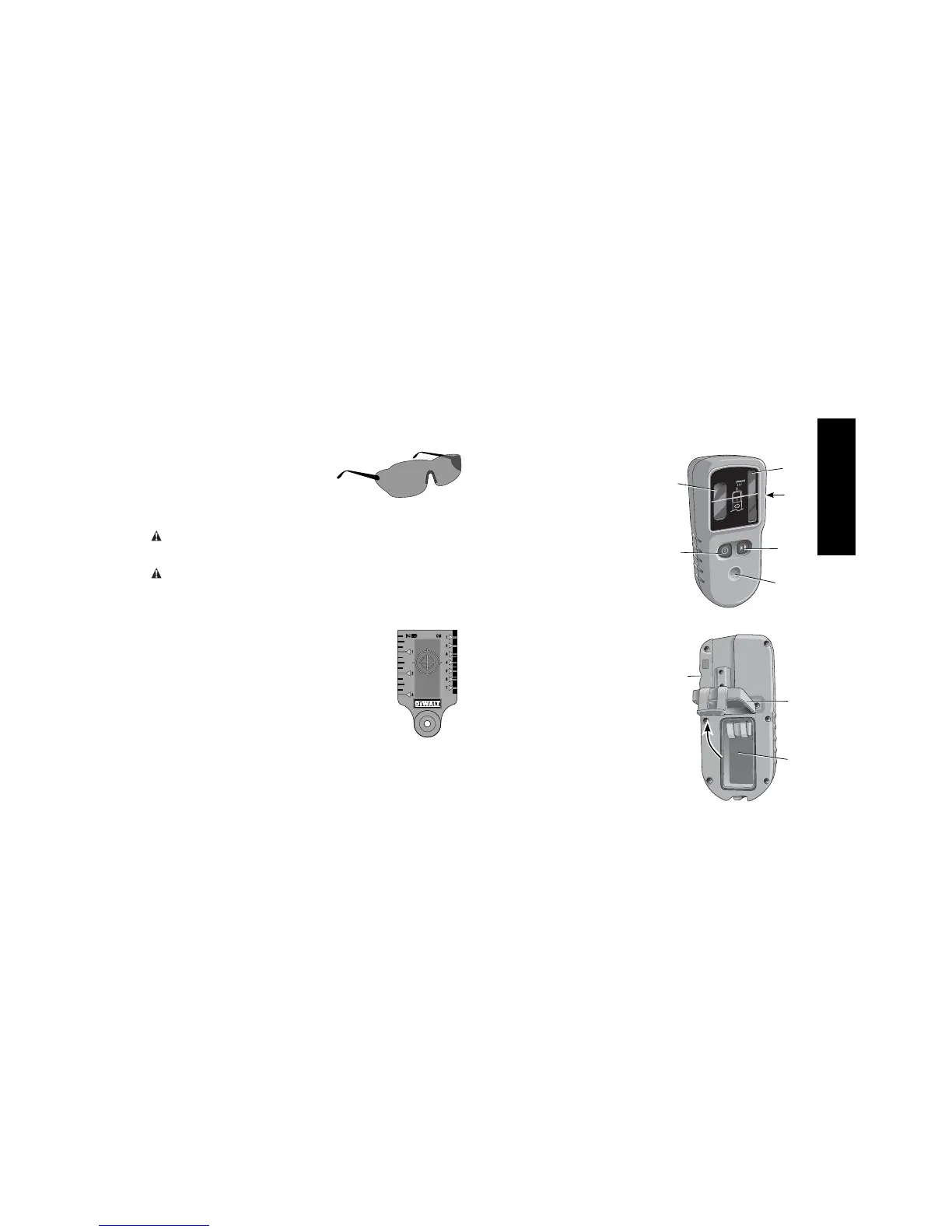

Laser Enhancement Glasses
Some laser kits include a pair of
FIG. 5
Laser En hancement Glasses (Fig. 5).
These red lens glasses improve the
visibility of the laser beam under
bright light conditions or over long
distances when the laser is used for
interior applications. These glasses
are not required to operate the laser.
CAUTION: These glasses are not ANSI approved safety glasses
and should not be worn while operating other tools. These glasses
do not keep the laser beam from entering your eyes.
DANGER: TO REDUCE THE RISK OF SERIOUS PERSONAL
INJURY, NEVER STARE DIRECTLY INTO THE LASER BEAM,
WITH OR WITHOUT THESE GLASSES.
Target Card
FIG. 6
Some laser kits include a Laser Target Card
(Fig. 6) to aid in locating and marking the laser
beam. The target card enhances the visibility of
the laser beam as the beam crosses over the
card. The card is marked with standard and metric
scales. The laser beam passes through the red
plastic and reflects off of the reflective tape on
the reverse side. The magnet at the top of the
card is designed to hold the target card to ceiling
track or steel studs to determine plumb and level
positions. For best performance when using the
Target Card, the D
EWALT logo should be facing you.
Digital Laser Detector: DW0742
(Fig. 7, 8)
K
O
J
FIG. 7
N
P
Q
Some laser kits include a DEWALT
Digital Laser Detector. The D
EWALT
Digital Laser Detector allows you to
locate a laser beam emitted by a
rotary laser in bright light conditions
or over long distances. The detector
can be used in both indoor and
outdoor situations where it is difficult
to see the laser beam.
The detector is not for use with non-
rotating lasers but is compatible with
most rotary red-beam or infrared
(invisible) beam lasers on the market.
The detector gives both visual signals
through the display window (J) and
FIG. 8
M
L
Q
audio signals through the speaker (K)
to indicate the location of the laser
beam.
The D
EWALT Digital Laser Detector
can be used with or without the
detector clamp. When used with the
clamp, the detector can be positioned
on a grade rod, leveling pole, stud or
post.
BATTERIES (FIG. 7)
The digital laser detector is powered
by a 9-volt battery. To install the
battery provided, lift up on the battery
compartment cover (L). Place the
