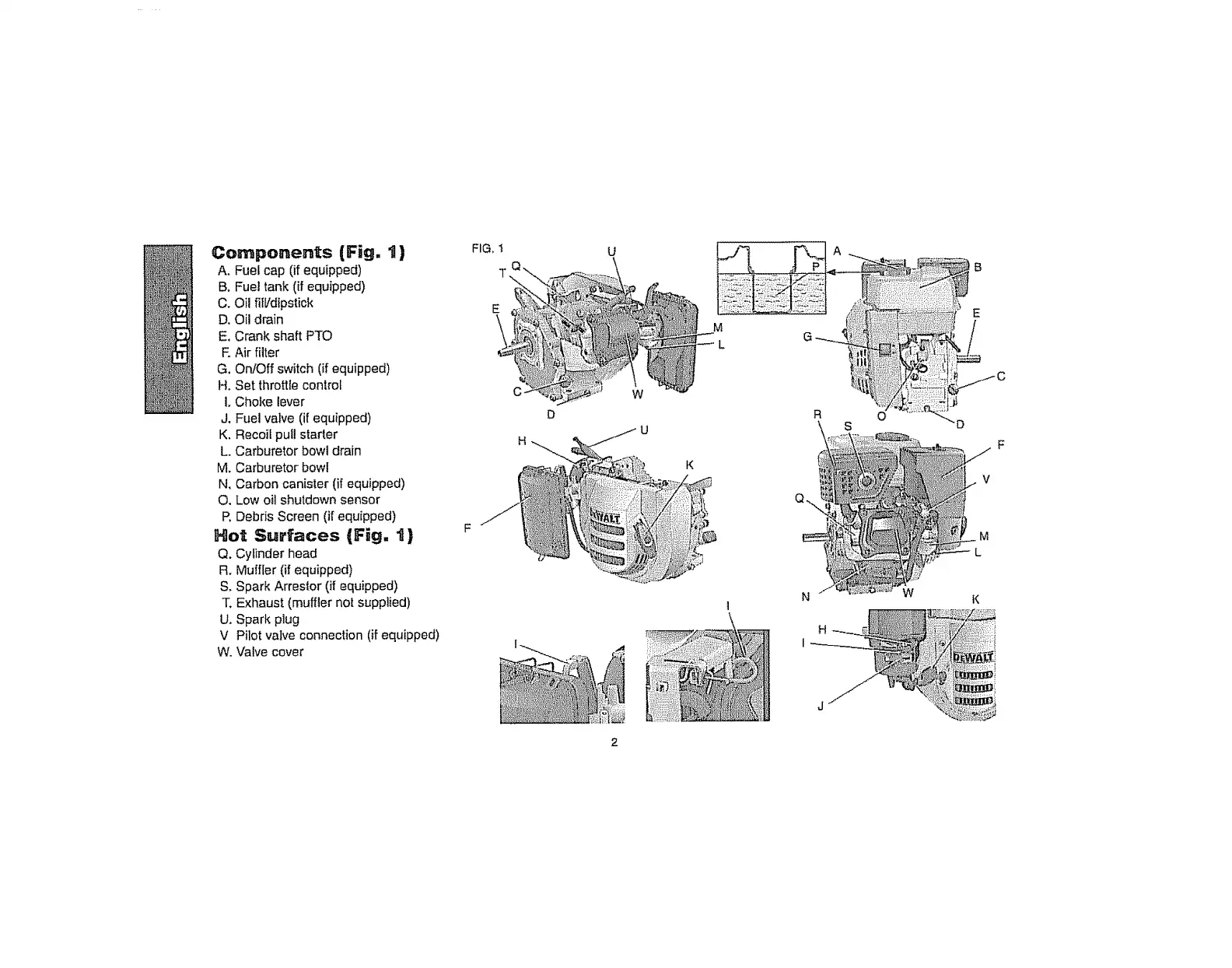

Components (Fig, 11}
A. Fuel cap (if equipped)
B. Fuel tank (if equipped)
C. Oil fill/dipstick
D. Oil drain
E. Crank shalt PTO
R Air filter
G, On!Off switch (if equipped)
H. Set throttle control
I. Choke lever
J. Fuel valve (if equipped)
K. Recoil pull starter
L. Carburetor bowl drain
M. Carburetor bowl
N. Carbon canister (if equipped)
O. Low oil shutdown sensor
PoDebris Screen (if equipped)
Hot Surfaces (F_g. 1)
Q. Cy,nder head
R. Muffler (if equipped)
S. Spark Arrestor (if equipped)
T. Exhaust {muffler no! supplied)
U. Spark plug
V Pilot valve connection (if equipped)
W. Valve cover
FIG, I
E
M
D
w
R
N
H
I
w
B
