Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Single touch handle
2
Handle support
3
Handle unlock button
4
Main handle
5
Handle release button
6
Safety key
7
Switch box
8
Bail handle
9
Self drive lever (DCMWSP156 only)
10
Speed adjustment dial (DCMWSP156 only)
11
Power button
12
Control panel
13
Overheat indicator
14
Cutting load meter indicator
15
Handle folding indicator
16
Blade sharpening indicator
17
Blade reset button
18
State of charge indicator
19
Battery port cover
20
Cut height adjustment lever
21
Rear door cover
22
Grass collection bag
23
Grass collection bag handle
24
Mulching plug
25
Rear side discharge chute

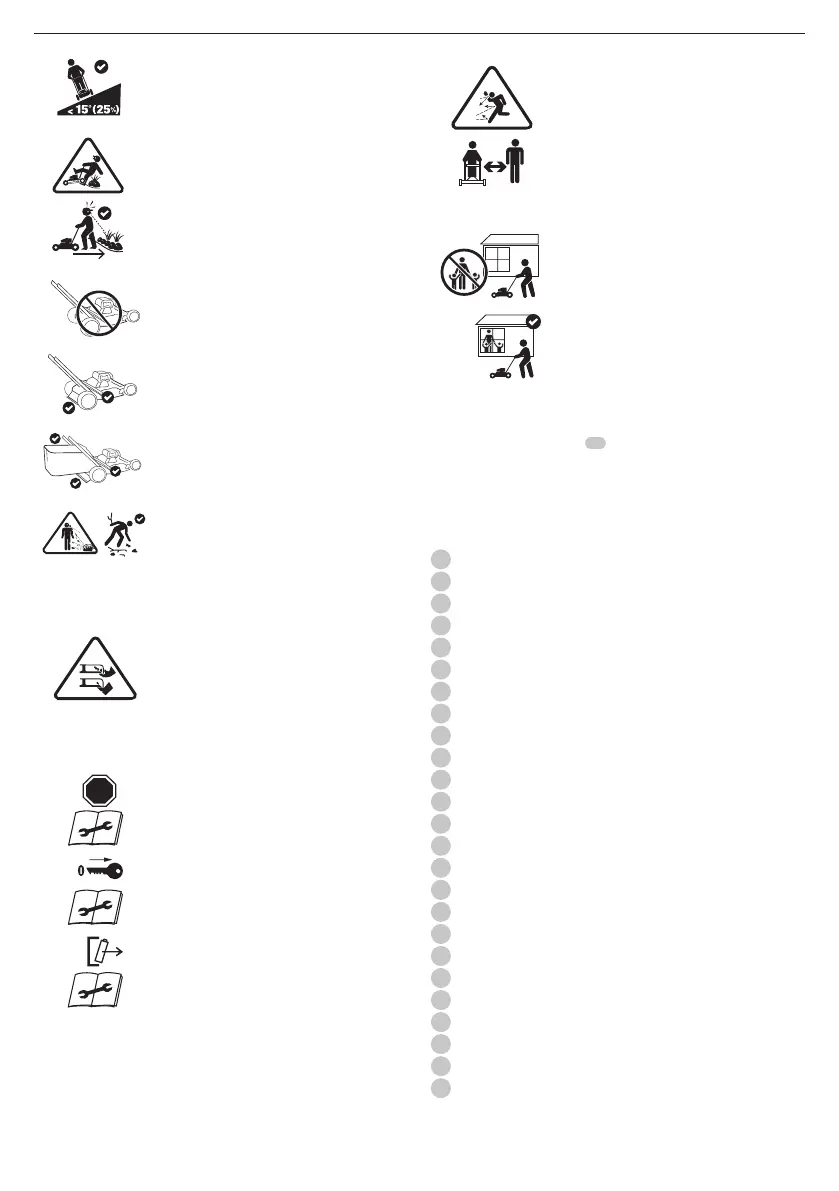

Date Code Position (Fig. E)
The production date code
61
consists of a 4-digit year followed
by a 2-digit week and is extended by a 2-digit factorycode.
Objects struck by mower blade can cause
serious injury. Stay behind the handle
when the motor is running. Always ensure
persons and pets are a safe distance from
the mower while operating. Release bail
handle to turn mower off and wait for
the blade to stop rotating (approximately
3seconds) before crossing walk, roads,
patio and graveldrives.
Keep children and bystanders away while
operating mower.
Mow across the face of slopes less than
15°/25%.
Always look down and behind before and
while moving backward.
Do not operate machine without the rear
flap or rear side discharge chute in place.
Operate machine with rear flap and rear
side discharge chute in place.
Operate machine with rear flap and grass
collection bag in place.
Always inspect mowing area before
mowing and remove objects that could be
thrown by blade.
Rotating blades can cause serious injury.
Keep hands and feet clear of mower deck
and discharge opening at all times. Always
be sure blade has stopped. Release bail
handle to turn mower off and wait for
the blade to stop rotating (approximately
3seconds) and remove the safety key
and battery pack before removing and
replacing grass catcher, cleaning, servicing,
transporting or lifting themower.
Turn mower off and wait for the blade to
stop rotating (approximately 3seconds)
and remove the safety key and battery pack
before cleaning, servicing, transporting or
lifting themower.
