Dexter Laundry V-Series User Manual

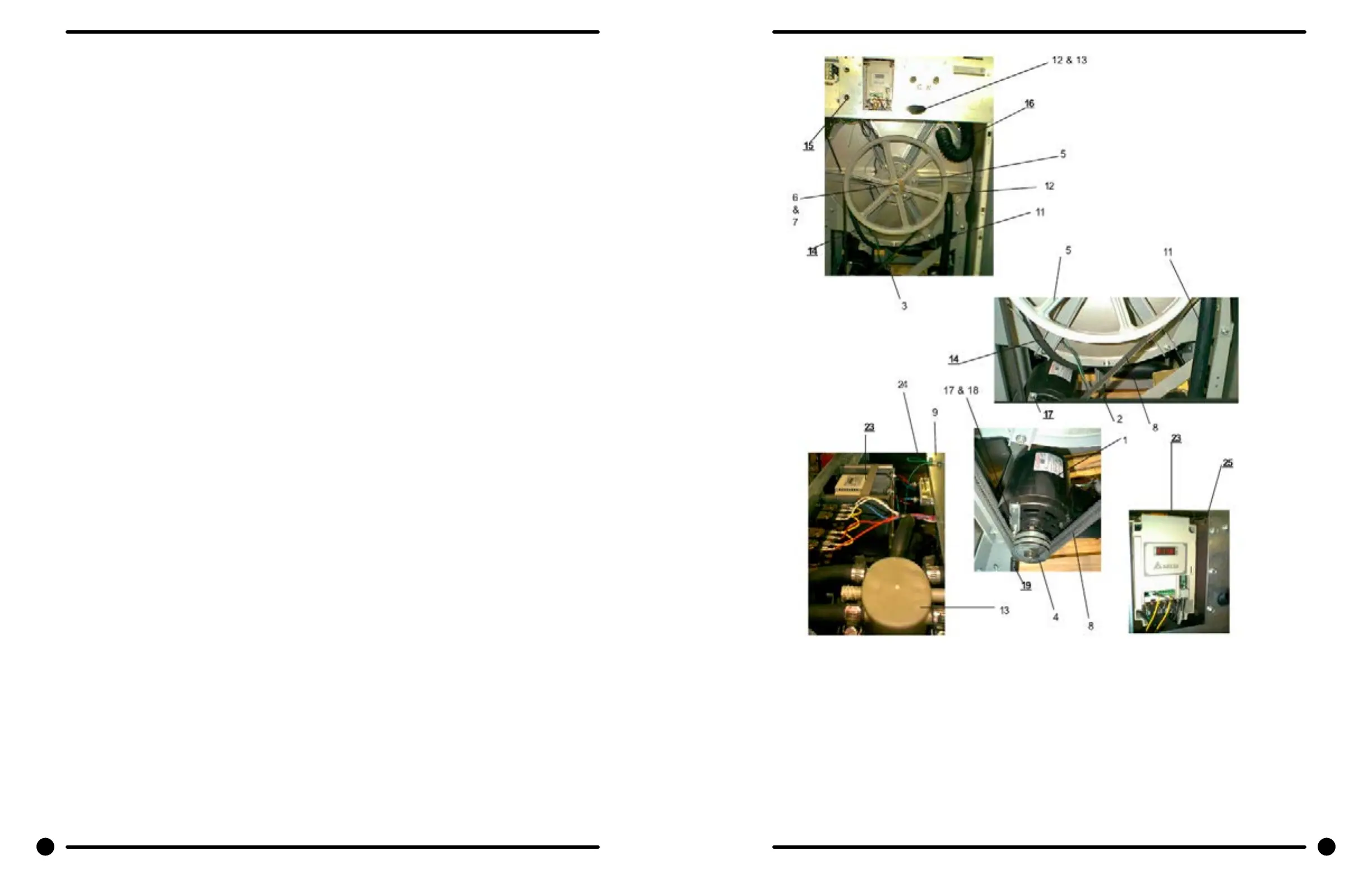

Rear View Access Part # WCVD-18, WCVD-25, WCVD-40
Key Part Number
1 9376-305-001
1 9376-304-001
2 9497-222-002
2 9497-222-004
* 9545-029-005
* 8641-582-014
3 9076-052-002
4 9453-170-003
4 9453-169-012
* 9545-028-015
* 9487-234-001
* 9487-234-002
* 9487-234-003
5 9453-168-003
5 9453-168-004
5 9908-041-002
6 9545-017-009
7 8641-581-026
6 8641-582-016
6 9545-060-001
7 8641-581-032
6 8641-582-018
8 9040-076-004
8 9040-076-005
9 9081-135-001
9 9081-132-001
9 9081-134-001
10 9545-008-026
* 8640-399-008
11 9242-449-002
12 9242-463-003
12 9242-463-001
12 9242-463-002
13 8654-117-008
13 8654-029-000
* 9610-001-001
* 9989-446-002
* 9989-446-001
* 9454-632-001
* 9545-008-026
* 8640-399-004
* 8640-399-008
* 9545-030-002
14 9242-175-000
14 9242-175-002
* 8654-117-015
15 5198-211-004
* 9200-001-002
* 8636-018-001
16 9242-458-001
16 9242-458-002
* 8654-117-014
* 8654-117-008
17 9029-027-003
* Not Illustrated
Description................................................................................................Qty
Drive Motor, 3 Phase (Inverter duty) WCVD-25,WCVD-40.................................1
Drive Motor, 3 Phase (Inverter duty) WCVD-18................................................1
Rod, Motor Mtg WCVD-18,WCVD-25...............................................................1
Rod, Motor Mtg WCVD-40 ............................................................................1
Screw (end of motor rod) WCVD-18,WCVD-25,WCVD-40.................................1
Lockwasher (end of motor rod)WCVD-18,WCVD-25,WCVD-40..........................1
Collar, Shaft (w/set screws)............................................................................2
Pulley, Motor WCVD-25,WCVD-40...................................................................1
Pulley, Motor WCVD-18..................................................................................1
Set Screw,Sq.Hd(motor pulley)WCVD-18,WCVD-25,WCVD-40...........................2
Tolerance Ring WCVD-25...............................................................................1
Tolerance Ring WCVD-18...............................................................................1
Tolerance Ring WCVD-40...............................................................................1
Pulley, Driven WCVD-40.................................................................................1
Pulley, Driven WCVD-25.................................................................................1
Pulley,Ass’y Driven WCVD-18..........................................................................1
Screw 1/2-13x1 1/4” WCVD-18,WCVD-25.......................................................1
Washer, Flat 1/2” WCVD-18,WCVD-25.............................................................1
Lockwasher 1/2” WCVD-18,WCVD-25............................................................1
Screw 5/8-11x1/1/2” WCVD-40......................................................................1
Washer, Flat 5/8x2 1/4” WCVD-40..................................................................1
Lockwasher 5/8” WCVD-40.............................................................................1
Drive Belt WCVD-18.......................................................................................1
Drive Belt WCVD-25,WCVD-40........................................................................2
Channel, Rear WCVD-25...............................................................................1
Channel, Rear WCVD-18................................................................................1
Channel, Rear WCVD-40................................................................................1
Screw...........................................................................................................4
Nut, Spring...................................................................................................4
Hose, Overow to drain WCVD-25 WCVD-40,WCVD-18....................................1
Hose, Overow Vent 12 1/4” WCVD-40...........................................................1
Hose, Overow Vent 9” WCVD-18...................................................................1
Hose, Overow Vent 11” WCVD-25.................................................................1
Clamp, Hose Vent.........................................................................................1
Clamp, Hose overow to drain........................................................................2
Vaccum Breaker ALL MODELS........................................................................1
Panel Assy., Back WCVD-25............................................................................1
Panel Assy, Back WCVD-40.............................................................................1
Panel, Back WCVD-18....................................................................................1
Screw Panel Mtg.#10Bx1/2”.........................................................................10
Nut, Spring WCVD-18,WCVD-25...................................................................10
Nut, Spring WCVD-40....................................................................................6
Screw, to Base WCVD-40...............................................................................3
Hose, Pressure Switch WCVD-18,WCVD-25.....................................................1
Hose, Pressure Switch WCVD-40....................................................................1
Clamp, Pressure Sw. Hose.............................................................................1
Circuit Breaker, 1.5 amp optional....................................................................0
Fuseholder....................................................................................................1
Fuse 1.5 amp..............................................................................................1
Hose, Vacuum Breaker to tub WCVD-18..........................................................1
Hose, Vacuum Breaker to Tub WCVD-25, WCVD-40.........................................1
Clamp, Hose to Vacuum Breaker WCVD-18, WCVD-40.....................................1
Clamp, Hose to Vacuum Breaker WCVD-25......................................................1
Strap Bracket, Motor Tension..........................................................................1
Key Part Number
18 8640-413-002
18 8641-581-006
19 9534-319-002
20 9545-055-001
21 8640-414-003
23 9375-004-002
23 9375-005-002
23 9375-007-002
23 9375-007-003
24 9483-004-002
24 9483-004-002
25 9985-177-001
Description.........................................................................................Qty
Nut, Strap to Motor.................................................................................1
Washer...................................................................................................1
Spring, Belt Tension................................................................................1
Bolt, Eye ( 1/4”-20x1/2”)........................................................................1
Nut, 1/4 Elastic Stop...............................................................................1
VFD Delta “S” drive WCVD-18-10 120 volt...............................................1
VFD Delta “S” drive WCVD-18-12.............................................................1
VFD Delta “S” drive WCVD-25..................................................................1
VFD Delta “S” drive WCVD-40..................................................................1
Braking resistors ( 200 ohm ) WCVD-18..................................................1
Braking resistors ( 200 ohm) WCVD-25,WCVD-40....................................2
Bracket ass’y(drive mounting) WCVD-25,WCVD-40,WCVD-18....................1
